Gradall XL 5200 V

Gradall XL 5200 V

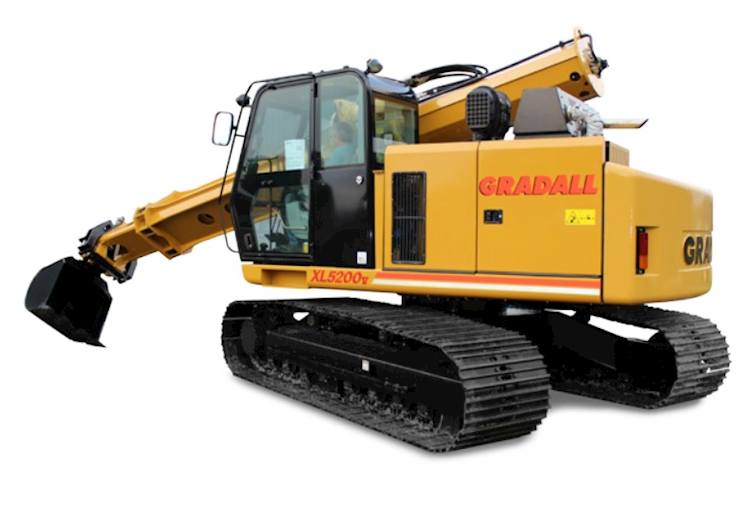

New Gradall XL 5200 V Crawler Excavator for Sale

No other crawler can handle so many different jobs, even working in tunnels, under bridges and on the ground floors of multi-story buildings. Maneuvering on rocky surfaces, in sand and on uneven terrain, Gradall crawlers handle a wider variety of jobs with full-tilting, telescoping boom movements.
Dimensions
Length 28’11” w/bucket
25’8” wo/bucket
Width 8’6”
Height 10’9” w/bucket
10’2” wo/bucket
Weight 54,452 lbs.
Ground Clearance 18 in. (454 mm)
Fuel Tank Capacity 99 gal. (375 l)
Transport Length 28’11”
Transport Height 10’9”
Transport Width 10’6”
Maximum Slope 30°
Engine
Engine Make Volvo
Engine Model TAD571 VE
Engine Type Tier 4f 5.1L
Cylinders Inline 4
Horsepower 173 HP
Net Horsepower 153 HP
Cooling Liquid
Torque 590 ft. lbs.
Air Cleaner 2-stage, dry type
Fuel Type Diesel
Rated RPM 2200 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Number of Speeds 2-speed
Transmission Type Automatic
Starter 24 volt starter
Gradeability 58%
Track Length 13’8”
Drawbar Pull 38,324 lbs.
Alternator 100 amp alternator
Hydraulic
Pump One load-sensing, axial piston pump
Gear pump, pilot
Std Pump Flow Oil flow: 0-110 GPM
Operating Pressure Hoist: 4,900 PSI
Tilt: 2,500 PSI
Swing: 4,500 PSI
Tool: 4,900 PSI
Telescope: 4,900 PSI
Propel: 4,900 PSI
Pilot System: 550 PSI
Hydraulic Cylinders Four Cylinders
One tool: 5.0” ID, 3.0” rod, 25.9” stroke
Two hoist: 4.75” ID, 3.35” rod, 31.0” stroke
One telescope: 3.75” ID, 2.75” rod, 14’ stroke
Oil Capacity 65 Gallons
Hydraulic Motors Swing: 68 HP
Tilt: 21 HP
Two Propel Motors: 120 HP
Operational
Dig Depth 25’4”
Bucket Breakout Force 25,405 lbs.
Travel Speed - Forward 3.4 mph
Travel Speed - Reverse 1.9 mph
Lift Capacity 13,764 lbs.
Max. Load @ Full Height 17’11”
Swing Priority swing circuit with axial piston motor
Planetary transmission
Max. Radius 33’11” (groundline)
Boom Telescope 14’
Boom Tilt 220°
Boom Force 24,941 lbs.
Bucket Pivot Angle 165°
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Speed 7 RPM
Swing Clearance 8’6”
Max. Work Height 14’
Pad Width 31.5”
Ground Bearing Pressure 6.6 PSI
Boom Pivot Angle 105°; 30° up and 75° down
Swing Brake Automatic spring-set/hydraulic release wet disc parking brake
Dynamic braking provided by the hydraulic system
Battery
Voltage 12V
Amps 100A
Battery Two SAE #C31-S 1000 CCA batteries



  • CHASSIS DESIGN
    • Powered by a single Volvo engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
    • Dual range high torque piston motor powers each track.
    • To ensure travel and stopping capability, models have three-stage planetary drive, with integral speed limiting valve, and automatic spring-set hydraulic release wet disc parking brake
    • Triple grouser excavator pads in a choice of widths enhance tracking ability on rough terrain, with high range travel speeds up to 3.4 mph
    • Tracks counter-rotate to pivot machine about the swing centerline
  • BOOM
    • Full boom tilts 220° (optional 360°) for efficient sloping, grading and spreading material
    • No loss of power to attachment tilting capability
    • Consistent boom force through the entire dig cycle
    • Dig down at 75° angle
    • Rugged boom telescopes out up to 33’ 10”
    • Low profile for work under bridges, trees and in tunnels
    • Full-length boom visibility during the entire dig cycle
    • Fast cycle times for ditching, loading and spreading
    • Quick attach bolt system handles full range of attachments
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • Two electronic foot pedals with handles reposition carrier, using toggle switch on arm pod to select from two crawler speed ranges
    • Excellent visibility of the boom through the entire dig cycle
    • Standard air conditioning
    • Removable, stowable front window brings fresh air into the cab
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves, providing additional fuel-saving advantages
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable digging platform for work in any direction, without need to stop and lower outriggers
    • Triangular telescoping boom design, with full power through the entire dig cycle
    • Cycle speeds comparable or exceeding conventional excavators
    • Electronic joysticks provide precise control over boom and attachment positioning
  • OPERATOR CAB
    • Optional rollover protection
  • OPTIONAL EQUIPMENT
    • Vandalism protection kit including window covers
    • Strobe light

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Gradall
MODEL XL 5200 V

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Gradall XL 5200 V

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Gradall XL 5200 V Crawler Excavator for Sale

No other crawler can handle so many different jobs, even working in tunnels, under bridges and on the ground floors of multi-story buildings. Maneuvering on rocky surfaces, in sand and on uneven terrain, Gradall crawlers handle a wider variety of jobs with full-tilting, telescoping boom movements.
GENERAL INFORMATION
Manufacturer
Gradall
Model Year
Model
XL 5200 V
Condition
NEW
Dimensions
Length
28’11” w/bucket 25’8” wo/bucket
Width
8’6”
Height
10’9” w/bucket 10’2” wo/bucket
Weight
54,452 lbs.
Ground Clearance
18 in. (454 mm)
Fuel Tank Capacity
99 gal. (375 l)
Transport Length
28’11”
Transport Height
10’9”
Transport Width
10’6”
Maximum Slope
30°
Engine
Engine Make
Volvo
Engine Model
TAD571 VE
Engine Type
Tier 4f 5.1L
Cylinders
Inline 4
Horsepower
173 HP
Net Horsepower
153 HP
Cooling
Liquid
Torque
590 ft. lbs.
Air Cleaner
2-stage, dry type
Fuel Type
Diesel
Rated RPM
2200 RPM
Cycles
4
Filtration System
10 micron return filter 10 micron pilot filter Fin and tube-type oil cooler with thermal by-pass and relief valves Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Number of Speeds
2-speed
Transmission Type
Automatic
Starter
24 volt starter
Gradeability
58%
Track Length
13’8”
Drawbar Pull
38,324 lbs.
Alternator
100 amp alternator
Hydraulic
Pump
One load-sensing, axial piston pump Gear pump, pilot
Std Pump Flow
Oil flow: 0-110 GPM
Operating Pressure
Hoist: 4,900 PSI Tilt: 2,500 PSI Swing: 4,500 PSI Tool: 4,900 PSI Telescope: 4,900 PSI Propel: 4,900 PSI Pilot System: 550 PSI
Hydraulic Cylinders
Four Cylinders One tool: 5.0” ID, 3.0” rod, 25.9” stroke Two hoist: 4.75” ID, 3.35” rod, 31.0” stroke One telescope: 3.75” ID, 2.75” rod, 14’ stroke
Oil Capacity
65 Gallons
Hydraulic Motors
Swing: 68 HP Tilt: 21 HP Two Propel Motors: 120 HP
Operational
Dig Depth
25’4”
Bucket Breakout Force
25,405 lbs.
Travel Speed - Forward
3.4 mph
Travel Speed - Reverse
1.9 mph
Lift Capacity
13,764 lbs.
Max. Load @ Full Height
17’11”
Swing
Priority swing circuit with axial piston motor Planetary transmission
Max. Radius
33’11” (groundline)
Boom Telescope
14’
Boom Tilt
220°
Boom Force
24,941 lbs.
Bucket Pivot Angle
165°
System Monitor
Electronic monitor in cab indicates: Low hydraulic fluid level High hydraulic fluid temperature System working pressure System pilot pressure
Swing Speed
7 RPM
Swing Clearance
8’6”
Max. Work Height
14’
Pad Width
31.5”
Ground Bearing Pressure
6.6 PSI
Boom Pivot Angle
105°; 30° up and 75° down
Swing Brake
Automatic spring-set/hydraulic release wet disc parking brake Dynamic braking provided by the hydraulic system
Battery
Voltage
12V
Amps
100A
Battery
Two SAE #C31-S 1000 CCA batteries

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
