Gradall XL 4320 V

Gradall XL 4320 V

New Gradall XL 4320 V Mine Scaling Excavator for Sale

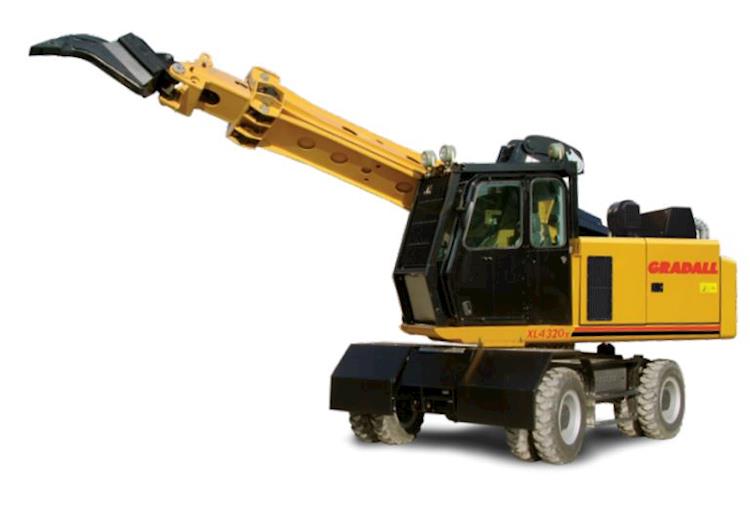

Increase scaling productivity with unique boom action

Handle the rigors of mine scaling with a rugged triangular Gradall boom, including full-boom tilt, double rollers and a host of other high performance, high durability features.
Body
Cab All-weather cab with tinted safety glass windows, acoustical lining, four-way adjustable operator’s seat, AM/FM radio, filtered fresh air heater, defroster and A/C. Front window has heat resistant glass. Rearview mirrors on right and left sides. Standard equipment includes operator’s seat belt and swing lights.
Dimensions
Length 23’10” (Travel Position wo/attachment)
26’ (Travel Position w/attachment open)
Width 9’0”
Height 11’2” (Travel Position wo/attachment)
11’6” (Travel Position w/attachment open)
Weight 46,580 lb
Wheelbase 8’9”
Ground Clearance 3”
Turning Radius 25’5”
Fuel Tank Capacity 99 gallons
Transport Length 26’ (w/ Attachment)
Maximum Slope 30°
Engine
Drive Type Motor: Rexroth A6 Series, 160cc/Rev
Engine Make Volvo
Engine Model TAD571 VE
Engine Type Tier 4f
Cylinders 4
Horsepower 173 HP
Net Horsepower 153 HP
Cooling Liquid Cooled
Torque 590 ft. lb.
Rated RPM 2200 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Number of Speeds 1st Gear: 1.8 mph (Creeper Mode) & 5.7 mph (Standard Mode)
2nd Gear: 6.3 mph (Creeper Mode) & 12 mph (Standard Mode)
Drive 4 x 4
Drive Motor: Rexroth A6 Series, 160cc/Rev
Axles ZF Model 3070 (FTF2090)
Transmission ZF Model HL 290
Starter 24 volt starter
Brakes Wet-disc type service brakes on both axles
Tires 10 x 20 Super-Lug
Alternator 100 amp alternator
Hydraulic
Pump One load-sensing, axial piston pump
Tandem gear pump (steering, brake/pilot)
Std Pump Flow 0-110 GPM
Tandem Steering: 10 GPM
Tandem Pilot: 6 GPM
Operating Pressure Hoist: 4900 PSI
Tilt: 4900 PSI
Swing: 4200 PSI
Tool: 4900 PSI
Telescope: 4900 PSI
Propel: 4900 PSI
Pilot System: 550 PSI
Braking & Steering: 2400 PSI
Blade & Stabilizers: 4000 PSI
Hydraulic Cylinders Six Cylinders:
One tool: 5.0” ID, 3.0” rod, 25.9” stroke
Two hoist cylinders: 4.25” ID, 3.15” rod, 31.0” stroke
One telescope: 3.5” ID, 2.559” rod, 12’6” stroke
Two single-acting axle oscillation cylinders: 4.528” ID, 4.528” rod, 6.25” stroke
Oil Capacity 65 Gallons
Hydraulic Motors Three Hydraulic Motors:
Swing: 64 HP
Tilt: 50 HP
Propel: 113 HP
Operational
Dig Depth 22’1”
Outriggers 2,720 lb
Travel Speed - Forward Standard Mode First Gear: 5.7 MPH
Standard Mode Second Gear: 12 MPH
Creeper Mode First Gear: 1.8 MPH
Creeper Mode Second Gear: 6.3 MPH
Blade 1,529 lb
Boom Rotation Torque: 25,800 ft lb
Speed: 7.0 RPM
Max. Load @ Full Height 17’5”
Swing Priority swing circuit w/axial piston motor
Planetary transmission
Max. Radius 31’3” (at groundline)
Boom Telescope 12’6”
Boom Tilt 220°
Boom Force 22,075 lb
Rated Ripper Tooth Force 25,405 lb
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Speed 7 RPM
Swing Clearance 8’
Attachment Pivot Angle 165°
Swing Brake Automatic spring-set/hydraulic release wet-disc parking brake
Dynamic braking is provided by the hydraulic system
Max Scaling Height 25'1"
Battery
Voltage 24 volt starter
Amps 100 amp alternator
Battery Two SAE #C31-S 1000 CCA batteries
  • CHASSIS DESIGN
    • Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
    • Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
    • Travel speeds up to 12 mph
    • Variable displacement high torque piston motor powers two-speed power shift transmission
    • Electronically operated travel alarm signals carrier movement
    • Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
    • Automatic spring-set/hydraulic release wet-disc parking brake
    • Dynamic braking is provided by the hydraulic system
  • BOOM
    • Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
    • Full boom telescopes and tilts 360° to address hard-to-reach prying locations and avoid overhead obstructions
    • All hydraulic hoses are located safely inside the boom
    • Double rollers handle rigors of scaling
    • Consistent boom force through the entire dig cycle
    • Rugged boom telescopes out to 48’ 9”
    • Low profile operation for work beneath low ceilings
    • Full-length boom visibility during the entire dig cycle
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • All-weather cab has tinted safety glass, acoustical lining, filtered fresh air heater, defroster and A/C
    • Front window has heat-resistant glass
    • Tilting, telescoping steering column provides smooth, comfortable steering
    • Hydraulic foot pedal controls braking functions
    • Independent rocker switches control stabilizers, axle oscillation, park brake and hazard lights
    • Adjustable seating module has joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • Excellent visibility of the boom and surrounding area
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable, without the need for outriggers
    • Extra tough telescoping boom design, with full power through the entire dig cycle
    • Cycle speeds comparable or exceeding conventional excavators
    • Electronic joysticks provide precise control over boom and attachment positioning
