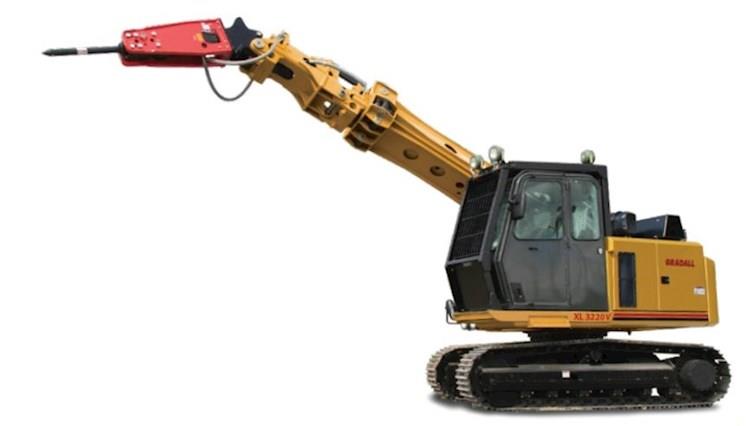

Gradall XL 3220 V

New Gradall Excavator for Sale

New Gradall XL 3220 V Mine Scaling Excavator for Sale

Increase scaling productivity with unique boom action

Handle the rigors of mine scaling with a rugged triangular Gradall boom, including full-boom tilt, double rollers and a host of other high performance, high durability features.
Dimensions
Length 21’10” (wo/attachment)
23’11” (w/attachment open)
Width 9’
Height 10’5” (wo/attachment)
10’9” (w/attachment open)
Weight 44,327 lbs.
Ground Clearance 18”
Fuel Tank Capacity 82 Gallons
Transport Length 23’11” (w/ Attachment)
Maximum Slope 30°
Engine
Drive Type Crawler: Three-stage planetary drive with integral speed limiting valve and automatic spring-set/hydraulic release wet-disc parking brake
Engine Make Volvo
Engine Model TAD571 VE
Engine Type Tier 4f
Cylinders 4
Horsepower 172 HP
Net Horsepower 152 HP
Cooling liquid cooled
Torque 590 ft. lb.
Rated RPM 2000 RPM
Cycles 4
Filtration System 10 micron return filter
10 micron pilot filter
Fin and tube-type oil cooler with thermal by-pass and relief valves
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Starter 24 volt starter
Brakes Three-stage planetary drive with integral speed limiting valve and automatic spring-set/hydraulic release wet-disc parking brake
Gradeability 58%, limited by engine lubrication requirements
Track Length 11’9”
Drawbar Pull 38,324 lbs.
Alternator 100 amp alternator
Hydraulic
Operating Pressure Hoist: 4900 PSI
Tilt: 4900 PSI
Swing: 3000 PSI
Tool: 4900 PSI
Telescope: 4900 PSI
Propel: 4900 PSI
Pilot System: 550 PSI
Hydraulic Cylinders Four Cylinders:
One tool: 5.0” ID, 3.0” rod, 25.9” stroke
Two hoist: 3.50” ID, 2.559” rod, 31.0” stroke
One telescope: 3.5” ID, 2.559” rod, 11’ stroke
Oil Capacity 65 Gallons
Hydraulic Motors Four Hydraulic Motors:
Swing: 51 HP
Tilt: 50 HP
Two Propel Motors: 120 HP
Operational
Dig Depth 19’11”
Travel Speed - Forward High Speed: 3.4 MPH
Low Speed: 1.9 MPH
Boom Rotation Torque: 25,800 ft. lb.
Speed: 7 RPM
Swing Priority swing circuit w/axial piston motor
Planetary transmission
Max. Radius 28’4” (at Groundline)
Boom Telescope 11’0”
Boom Tilt 220°
Boom Force 22,075 lb.
Rated Ripper Tooth Force 25,405 lbs.
System Monitor Electronic monitor in cab indicates:
Low hydraulic fluid level
High hydraulic fluid temperature
System working pressure
System pilot pressure
Swing Speed 8.0 RPM
Swing Clearance 7’6”
Attachment Pivot Angle 165°
Pad Width 19.7”-23’6”
Ground Bearing Pressure 8.5-10.1 PSI
Boom Pivot Angle 105°
Swing Brake Automatic spring-set/hydraulic release wet-disc parking brake
Dynamic braking is provided by the hydraulic system
Max Scaling Height 22'10"
Battery
Voltage 24 volt starter
Amps 100 amp alternator
Battery Two SAE #C31-S 1000 CCA batteries
  • CHASSIS DESIGN
    • Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
    • Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
    • Travel speeds up to 12 mph
    • Variable displacement high torque piston motor powers two-speed power shift transmission
    • Electronically operated travel alarm signals carrier movement
    • Variable displacement high torque piston motor powers two-speed power shift-on-the-fly transmission
    • Automatic spring-set/hydraulic release wet-disc parking brake
    • Dynamic braking is provided by the hydraulic system
  • BOOM
    • Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
    • Full boom telescopes and tilts 360° to address hard-to-reach prying locations and avoid overhead obstructions
    • All hydraulic hoses are located safely inside the boom
    • Double rollers handle rigors of scaling
    • Consistent boom force through the entire dig cycle
    • Rugged boom telescopes out to 48’ 9”
    • Low profile operation for work beneath low ceilings
    • Full-length boom visibility during the entire dig cycle
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • All-weather cab has tinted safety glass, acoustical lining, filtered fresh air heater, defroster and A/C
    • Front window has heat-resistant glass
    • Tilting, telescoping steering column provides smooth, comfortable steering
    • Hydraulic foot pedal controls braking functions
    • Independent rocker switches control stabilizers, axle oscillation, park brake and hazard lights
    • Adjustable seating module has joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • Excellent visibility of the boom and surrounding area
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable, without the need for outriggers
    • Extra tough telescoping boom design, with full power through the entire dig cycle
    • Cycle speeds comparable or exceeding conventional excavators
    • Electronic joysticks provide precise control over boom and attachment positioning

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Gradall
MODEL XL 3220 V

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Gradall XL 3220 V

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Gradall XL 3220 V Mine Scaling Excavator for Sale

Increase scaling productivity with unique boom action

Handle the rigors of mine scaling with a rugged triangular Gradall boom, including full-boom tilt, double rollers and a host of other high performance, high durability features.
GENERAL INFORMATION
Manufacturer
Gradall
Model Year
Model
XL 3220 V
Condition
NEW
Dimensions
Length
21’10” (wo/attachment) 23’11” (w/attachment open)
Width
9’
Height
10’5” (wo/attachment) 10’9” (w/attachment open)
Weight
44,327 lbs.
Ground Clearance
18”
Fuel Tank Capacity
82 Gallons
Transport Length
23’11” (w/ Attachment)
Maximum Slope
30°
Engine
Drive Type
Crawler: Three-stage planetary drive with integral speed limiting valve and automatic spring-set/hydraulic release wet-disc parking brake
Engine Make
Volvo
Engine Model
TAD571 VE
Engine Type
Tier 4f
Cylinders
4
Horsepower
172 HP
Net Horsepower
152 HP
Cooling
liquid cooled
Torque
590 ft. lb.
Rated RPM
2000 RPM
Cycles
4
Filtration System
10 micron return filter 10 micron pilot filter Fin and tube-type oil cooler with thermal by-pass and relief valves Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Starter
24 volt starter
Brakes
Three-stage planetary drive with integral speed limiting valve and automatic spring-set/hydraulic release wet-disc parking brake
Gradeability
58%, limited by engine lubrication requirements
Track Length
11’9”
Drawbar Pull
38,324 lbs.
Alternator
100 amp alternator
Hydraulic
Operating Pressure
Hoist: 4900 PSI Tilt: 4900 PSI Swing: 3000 PSI Tool: 4900 PSI Telescope: 4900 PSI Propel: 4900 PSI Pilot System: 550 PSI
Hydraulic Cylinders
Four Cylinders: One tool: 5.0” ID, 3.0” rod, 25.9” stroke Two hoist: 3.50” ID, 2.559” rod, 31.0” stroke One telescope: 3.5” ID, 2.559” rod, 11’ stroke
Oil Capacity
65 Gallons
Hydraulic Motors
Four Hydraulic Motors: Swing: 51 HP Tilt: 50 HP Two Propel Motors: 120 HP
Operational
Dig Depth
19’11”
Travel Speed - Forward
High Speed: 3.4 MPH Low Speed: 1.9 MPH
Boom Rotation
Torque: 25,800 ft. lb. Speed: 7 RPM
Swing
Priority swing circuit w/axial piston motor Planetary transmission
Max. Radius
28’4” (at Groundline)
Boom Telescope
11’0”
Boom Tilt
220°
Boom Force
22,075 lb.
Rated Ripper Tooth Force
25,405 lbs.
System Monitor
Electronic monitor in cab indicates: Low hydraulic fluid level High hydraulic fluid temperature System working pressure System pilot pressure
Swing Speed
8.0 RPM
Swing Clearance
7’6”
Attachment Pivot Angle
165°
Pad Width
19.7”-23’6”
Ground Bearing Pressure
8.5-10.1 PSI
Boom Pivot Angle
105°
Swing Brake
Automatic spring-set/hydraulic release wet-disc parking brake Dynamic braking is provided by the hydraulic system
Max Scaling Height
22'10"
Battery
Voltage
24 volt starter
Amps
100 amp alternator
Battery
Two SAE #C31-S 1000 CCA batteries

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
