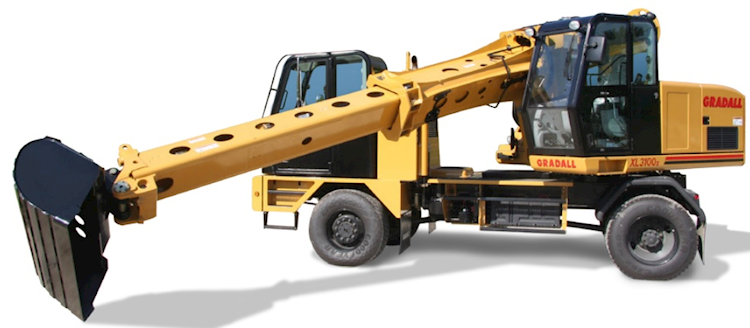

New Gradall XL 3100 V Highway Speed Wheeled Excavator for Sale

Highway-speed Gradall excavators travel quickly to one or more jobsites and then back to the safety of the equipment yard at the end of the day. Leave $100,000 worth of equipment – your lowboy trailer and truck – back in the equipment yard while you complete more work with fewer men and machines.
Body
Chassis Three aluminum bar-plate type coolers stacked vertically
Air to air intake charge air cooler, radiator and transmission cooler
All coolers backed by a molded fan shroud, engine mounted fan ring and 26.8” 9-blade fan driven by a Volvo electronically controlled variable speed fan drive
Frame 48 in. (1.2 m) wide, welded plate design
65 ksi material
Steering Ross, integral hydraulic power steering
Gear-type power steering pump
Four-quart power steering reservoir with filter
10 micron pre-filter
Wheels Hub piloted disc
10-stud, 11.25” bolt circle
Dimensions
Length 23’3” (wo/bucket)
27’6” (w/bucket)
Width 8’6”
Height 11’11” (4 x 2 w/bucket)
12’3” (4 x 4 w/bucket)
11’1” (4 x 2 wo/bucket)
11’5” (4 x 4 wo/bucket)
Weight 40,930 lbs.
Wheelbase 13 ft. 4 in. (4.1 m)
Ground Clearance 10 in. (254 mm)
Fuel Tank Capacity 100 gal. (378 l)
Transport Length 27’6” (w/bucket)
Transport Height 11’11”
Transport Width 8’6” (w/bucket)
Depth 16’3” (4 x 4)
16’6” (4 x 2)
Engine
Drive Type 4x2 or 4x4
Engine Make Volvo
Engine Model TAD572VE Tier 4f 5.1L
Engine Type Diesel
Cylinders Inline 4
Horsepower 215 hp @ 2,300 rpm
Net Horsepower 198 hp @ 2,300 rpm
Cooling Liquid
Torque 660 ft. lbs. @ 1,200 - 1,700 rpm
Air Cleaner 2-stage Donaldson PSD PowerCore®
Fuel Type Diesel
Electrical System 24 volt, 110 amp alternator with integral voltage regulator, two SAE #C31-S 1000 CCA batteries
Rated RPM 2300
Cycles 4
Air Filter Two-stage Donaldson PSD PowerCore with high efficiency pre-cleaner, vacuator value and remote service indicator
Filtration System 5 micron return filter with magnet
10 micron pilot filter
Fin and tube-type oil cooler with thermostatically controlled cooling fan
Pressure-compensated, load-sensing valves with circuit reliefs in all circuits
Drivetrain
Number of Speeds 6-speed
Drive 4 x 2 or 4 x 4
Axles Front Axles:
4 x 2: Meritor Model MFS-16-122A, 16,000 lb (7,257 kg) rating
4 x 4: Meritor Model MX19-145, 19,000 lb (8,618 kg) rating, 7.17 ratio
Rear Axle:
Meritor Model RS25-160, 25,250 lb (11,453 kg) rating. 7.17 ratio
Single reduction with driver controlled differential lock in front/rear
Inter-axle differential with lock
Transmission Type 6-speed Automatic
Transmission Allison 3500 RDS
Brakes 4 x 2 Front: Meritor “Q” Series
Cam-Master Size: 16.5” x 5”
Automatic slack adjusters
4 x 4 Front: Meritor “Q” Series
Cam-Master Size: 16.5” x 6”
Automatic Slack Adjusters.
Rear: Meritor “P” Series
Series Cam-Master Size: 16.5” x 7”
Automatic slack adjusters
Spring brake system incorporates emergency and parking brakes on rear axle
Heated air dryer
Suspension Front: Eight leaf spring with automatic lock-out cylinders
Rear: Solid mount
Tires 4 x 4 front: 425/65R22.5 LR (L) on/off highway traction tread
4 x 2 front: 385/65R22.5 LR (J) on/off highway tread
4 x 2 and 4 x 4 rear: 11R24.5 LR (H) on/off highway traction tread
Hydraulic
Pump One load-sensing axial piston pump, 0-77 gpm (0-291 L/min) total
One gear pump (pilot and cooling), 11 gpm (41 L/min)
Operating Pressure Hoist-4,800 PSI
Tilt-2,500 PSI
Swing-4,200 PSI
Tool-4,800 PSI
Telescope-4,800 PSI
Remote Propel-4,800 PSI
Pilot System-550 PSI
Hydraulic Cylinders Four Double Acting Cylinders
Two hoist cylinders: 3.5” x 2.56” rod x 31” stroke
One tool cylinder: 4.25” bore x 3.0” rod x 25.9” stroke
One telescope: 3.5” ID x 2.559” rod x 11’ stroke
Oil Capacity Reservoir: 50 Gallons
System: 65 Gallons
Hydraulic Motors Three Hydraulic Motors
Swing, 51 hp (38kW)
Tilt, 21 hp (16 kW)
Remote drive, 110 hp (82 kW) total
Operational
Dig Depth 18’4”
Bucket Breakout Force 17,990 lbs.
Travel Speed - Forward 60 mph (96.6 km/h)
Travel Speed - Reverse 6.4 mph (10.3 km/h)
Lift Capacity 7,870 lbs.
Boom Lift Capacity 7,870 lbs.
Max. Load @ Full Height 15’5”
Max. Radius At Groundline: 27’3”
Boom Telescope 11’0”
Boom Tilt 220˚
Boom Force 21,940 lbs.
Bucket Pivot Angle 165˚
Swing Speed 8.0 RPM
Swing Clearance 7’6”
Max. Work Height 14’11”
Gross Vehicle Axle Rating 41,250 lbs.
Swing Brake Automatic spring-set/hydraulic release wet disc parking brake
Dynamic braking provided by hydraulic system
Battery
Voltage 24V
Amps 110A



  • CHASSIS DESIGN
    • Both upper structure and carrier are powered by a single Volvo engine that increases fuel efficiency by 5%
    • Engine meets highest global standards including State IV (EU) and Tier-4 Final emissions requirements
    • Over-the-road highway speed travel at 60 mph
    • Carriers available with 4 x 2 or 6 x 4 drive, with optional 4 x 4 and 6 x 6
    • Front axle lockout cylinders and strong box plate frame construction provide stable work platform
    • No need for outriggers
    • Six-speed automatic transmission
  • CHASSIS CAB
    • Standard convenience features include an adjustable steering column, dual reading lights and radio
    • Ergonomically designed interior with extra sound-deadening
    • Rubber mounts isolate cab from frame, creating comfortable ride
    • Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
    • Engine shutdown controlled by engine electronics
    • Indicator lights and controls for front axle engagement (4 x 4 and 6 x 6 models) and rear axle differential lock
    • Comfort features including air suspension seat, sliding windows, fresh air heater and defroster and tinted glass
  • BOOM
    • Full boom tilts 220° for efficient sloping, grading and spreading material
    • No loss of power to attachment tilting capability
    • Consistent boom force through the entire dig cycle
    • Dig down at 75° angle
    • Rugged telescoping boom telescopes up to 33’ 9”
    • Low profile for work under bridges, trees and in tunnels
    • Full-length boom visibility during the entire dig cycle
    • Fast cycle times - ditching, loading and spreading
    • Quick attach bolt system handles full range of attachments
  • OPERATOR CAB
    • Choose the Gradall, Deere or SAE joystick pattern using an in-cab switch
    • Quiet, roomy cab and comfortable seating module, with joystick controls built into the armrests
    • Internal tooth swing bearing provides smooth, stable movement
    • With foot pedals, reposition carrier with new electric remote drive system at speeds up to 5 mph
    • Excellent job site and full boom visibility
    • Standard air conditioning
    • Optional rollover protection
    • Removable, stow-able front window brings fresh air into the cab
  • ADVANCED SYSTEMS
    • High performance, high reliability 24-volt electrical system
    • Legendary Bosch Rexroth design and reliability
    • All new, modern high-pressure hydraulic system is electronically controlled with pressure-compensated, load-sensing valves
    • Combined electrical system for chassis and excavator delivers advanced, effective operation
  • EXCAVATOR
    • Short tail swing won't obstruct traffic
    • Stable, without the need for outriggers
    • All new electric remote drive system for chassis repositioning
    • No need for a second engine
  • ATTACHMENTS
    • Trenching Buckets
    • Excavating Buckets
    • Ditch Cleaning Buckets
    • Dredging Buckets
    • Pavement Removal Buckets
    • Grading Blades
    • Boom Extensions
    • Hydraulic Hammers
    • Grapples
    • Flail Mowers
    • Rotary Mowers
    • Quick change and reversible buckets fabricated using steel plate with high strength, low alloy cutting edges and wear strips
    • Standard attachments available for wide range of applications
    • Capacities shown are in heaped cubic yard
  • Vandalism protection kit including window covers
  • Strobe light
  • Tilt steering column

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
