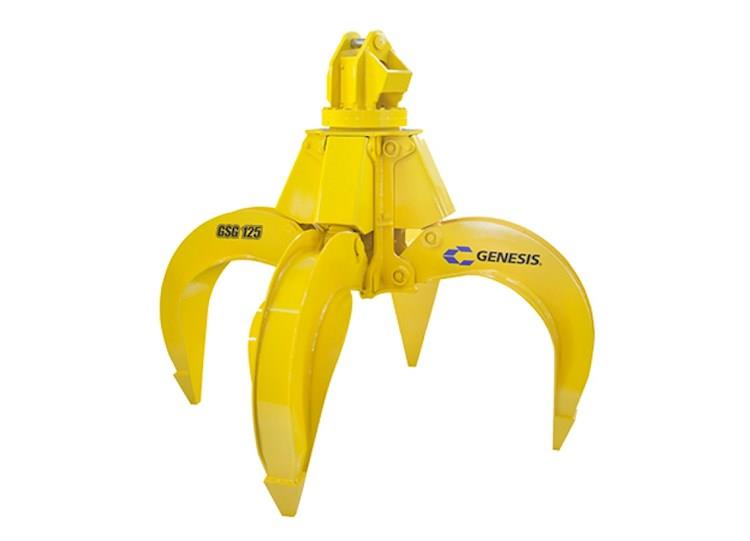

New Genesis GSG Scrap Grapple for Sale The Genesis Scrap Grapple is a low-maintenance, high-capacity orange peel grapple designed for high volume scrap processing. Available in 10 models, the GSG features large-bore hydraulic cylinders that maximize clamping force and high-torque, continuous 360-degree rotation for handling large and uneven loads. Large diameter hardened steel pins with integrated shear-proof pin retainers and hardened steel bearings with dust seals at all pivot points minimize maintenance. The Genesis Scrap Grapple is also suited for C&D sorting, bulk material handling and other applications in which volume and uptime are key.
The Genesis Scrap Grapple is a low-maintenance, high-capacity orange peel grapple designed for high volume scrap processing.
Models
|
| Dimensions | |
|---|---|
| Weight | GSG 50: 3,050 lbs. GSG 65: 3,150 lbs. GSG 75: 3,250 lbs. GSG 100: 3,500 lbs. GSG 100 HD: 4,300 lbs. GSG 125: 3,600 lbs. GSG 125 HD: 4,500 lbs. GSG 150: 4,800 lbs. GSG 200: 5,000 lbs. GSG 250: 5,700 lbs. |
| Min. Machine Size | GSG 50/GSG 65/GSG 75: 20 mt GSG 100/GSG 125: 22 mt GSG 100 HD: 25 mt GSG 125 HD: 27 mt GSG 150: 30 mt GSG 200: 40 mt GSG 250: 45 mt |
| Operational | |
|---|---|
| Capacity | GSG 50: 0.50 yd³ GSG 65: 0.65 yd³ GSG 75: 0.75 yd³ GSG 100 & GSG 100 HD: 1 yd³ GSG 125 & GSG 125 HD: 1.25 yd³ GSG 150: 1.5 yd³ GSG 200: 2 yd³ GSG 250: 2.5 yd³ |
| Application | Scrap Handling Bulk Material Handling C&D Sorting |
| Jaw Open Width | GSG 50: 64" (point) GSG 65: 69" (point) GSG 75: 74" (flat)/76" (point) GSG 100: 79" (flat)/80" (point) GSG 100 HD: 78" (flat)/79" (point) GSG 125: 89" (flat)/86" (point) GSG 125 HD: 85" (flat)/86" (point) GSG 150: 91" (flat)/89" (point) GSG 200: 96" (flat)/95" (point) GSG 250: 108" (flat)/105" (point) |
| Jaw Open Height | GSG 50: 81" (point) GSG 65: 83" (point) GSG 75: 85" (point) GSG 100: 90" (point) GSG 100 HD: 77" (flat)/86" (point) GSG 125: 92" (point) GSG 125 HD: 79" (flat)/88" (point) GSG 150: 81" (flat)/94" (point) GSG 200: 82" (flat)/96" (point) GSG 250: 84" (flat)/100" (point) |
| Jaw Closed Width | GSG 50: 52" (point) GSG 65: 54" (point) GSG 75: 59" (point) GSG 100: 68" (point) GSG 100 HD: 66" (flat)/63" (point) GSG 125: 71" (point) GSG 125 HD: 71" (flat)/67" (point) GSG 150: 75" (flat)/72" (point) GSG 200: 78" (flat)/76" (point) GSG 250: 86" (flat)/85" (point) |
| Jaw Closed Height | GSG 50: 88" (point) GSG 65: 91" (point) GSG 75: 91" (flat)/95" (point) GSG 100: 93" (flat)/100" (point) GSG 100 HD: 91" (flat)/98" (point) GSG 125: 98" (flat)/101" (point) GSG 125 HD: 95" (flat)/102" (point) GSG 150: 100" (flat)/108" (point) GSG 200: 103" (flat)/112" (point) GSG 250: 109" (flat)/118" (point) |
| Footprint | GSG 50: 60" (point) GSG 65: 64" (point) GSG 75: 70" (point) GSG 100: 73" (point) GSG 100 HD: 71" (flat)/72" (point) GSG 125: 79" (point) GSG 125 HD: 77" (flat)/78" (point) GSG 150: 80" (flat)/81" (point) GSG 200: 84" (flat)/86" (point) GSG 250: 94" (flat)/95" (point) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Genesis |
| MODEL | GSG Scrap Grapple |
