Fecon offers single knife or dual knife Bunching Shears for skid steers and excavators to nimbly shear, lift, bunch, and carry multiple trees with a single attachment. Fecon has designed models for excavators 8-16 ton which require as little as 15 gpm of Low Flow Hydraulics. Our Tree Shears are ideal for reaching up and down slopes and areas that are otherwise inaccessible. These heavy-duty attachments are equipped with a Fecon "H" mounting bracket and bolt-on hanger bracket sized to the Excavator.
Fecon now offers the Fecon Rotating Shear (FRS) which gives excavator operators the advantage of 360° rotation of their tree shear. Allowing more reach and access to trees with less repositioning of your machine. Whether you are thinning trees, felling or doing road side clean up; the FRS will get the job done faster! With models ranging from 5-35 tons and cuts up to 20” diameter; there’s an FRS for your job. You can equip the FRS with an accumulator arm for when you are shearing smaller material allowing you to bunch and keep shearing. FRS is made with tough “Hardox in My Body” and has a single blade design for cutting.

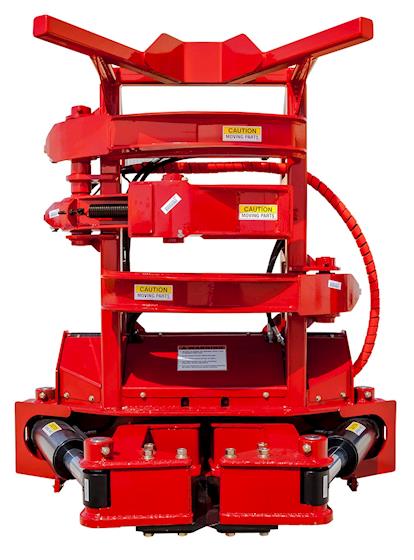

Fecon offers two types of Tree Shears for Skid Steers - Single Knife and a Dual Knife (FBS1200 or FBS1500). Both are equipped with heavy-duty cylinders and rods to provide strong shearing action and faster cycle times. They also feature a strong yet lighter-weight frame, fitted with adjustable AR400 steel knives allowing you to grab more trees with a lower ground PSI. These shears are ideal for thinning and fuels reduction, among other types of tree removal applications. The dual knife action feature provides a more positive cut while maintaining the tree central to the shear and carrier. Fecon offers four excavator tree shear models: FBS1200EXC, FBS1500EXC, and the FBS1600EXC, each with varying cutting capacity diameters (12", 14", 15" and 16"). There is a tree shear to fit any 8-16 ton. Whether you are reaching down a slope or across a gully, this is the excavator attachment to satisfy all of your tree felling needs. All four models are provided with the "H" style mounting bracket and bolt-on hanger bracket fit to the excavator. Each model is equipped with heavy-duty cylinders and rods to provide strong shearing action and faster cycle times. They also have a strong yet lightweight frame, fitted with adjustable AR400 steel knives to provide you with efficient cutting in a durable tree shear.
Models
Dimensions | |
---|---|
Width | FBS1200SS/EXC: 50” FBS1500SS/EX: 65” FBS1600/EX: 62” |
Height | FBS1200SS/EXC: 64” FBS1500SS/EX: 70” FBS1600/EX: 72” |
Weight | FBS1200SS/EXC: 1,250 lbs. FBS1500SS/EX: 1,900 lbs. FBS1600/EX: 3,600 lbs. |
Depth | FBS1200SS/EXC: 40” FBS1500SS/EX: 46” FBS1600/EX: 67” |
Exc Size | Excavator Size: FBS1200SS/EXC: 8-10 T FBS1500SS/EX: 10-12 T FBS1600/EX: 12-20 T FRS02: 4.5-7 T FRS04: 5.5-9 T FRS05: 8-14 T FRS10: 12-18 T FRS15: 16-24 T FRS20: 21-35 T |
Height of Shear | FRS02: 23” FRS04: 24” FRS05: 47” FRS10: 56” FRS15: 68” FRS20: 73” |
Weight of Accumulator | FRS02: N/A FRS04: N/A FRS05: 132 lbs. FRS10: 240 lbs. FRS15: 240 lbs. FRS20: 495 lbs. |
Weight of Shear | FRS02: 750 lbs. FRS04: 950 lbs. FRS05: 1,200 lbs. FRS10: 2,160 lbs. FRS15: 3,420 lbs. FRS20: 4,050 lbs. |
Engine | |
---|---|
Accumulating Capacity | FBS1200SS/EXC: 128si FBS1500SS/EX: 325si FBS1600/EX: 404si |
Accumulator Arm Cylinder | FBS1200SS/EXC: 2x10 FBS1500SS/EX: 2.5x10 FBS1600/EX: 3.5x11 |
Grabber Arm Cylinder | FBS1200SS/EXC: 2x10 (2) FBS1500SS/EX: 3x10 (2) FBS1600/EX: 3.5x9.5 (2) |
Knife Cylinder | FBS1200SS/EXC: 4x8 (2) FBS1500SS/EX: 5x12 (2) FBS1600/EX: 6x14 |
Max PSI | FRS02: 3200 PSI FRS04: 3200 PSI FRS05: 3650 PSI FRS10: 4350 PSI FRS15: 4350 PSI FRS20: 4350 PSI |
Hydraulic | |
---|---|
Hydraulic Flow | Requirements: FBS1200SS/EXC: 15-20 gpm FBS1500SS/EX: 15-20 gpm FBS1600/EX: 25-35 gpm |
Operating Pressure | Hydraulic Pressure Requirements: FBS1200SS/EXC: 2,000-3,000 psi FBS1500SS/EX: 2,000-3,000 psi |
Hydraulics | FBS1200SS/EXC: Single Lo-Flo Supply, includes diverter valve for Accumulator Arm FBS1500SS/EX: Single Lo-Flo Supply, includes diverter valve for Accumulator Arm FBS1600/EX: Single Lo-Flo Supply, includes diverter valve for Accumulator Arm |
Operational | |
---|---|
Rotation | FRS02: N/A FRS04: 5 gpm FRS05: 5 gpm FRS10: 5 gpm FRS15: 11 gpm FRS20: 11 gpm |
Adjustable Knife | FBS1200SS/EXC: 2 FBS1500SS/EX: 2 FBS1600/EX: 1 |
Blade Opening | FRS02: 35” FRS04: 35” FRS05: 18” FRS10: 25” FRS15: 29.5” FRS20: 33.5” |
Cutting Capacity | FBS1200SS/EXC: 12” FBS1500SS/EX: 15” FBS1600/EX: 16” FRS04: 6” |
Cutting Capacity Diameter | FRS02: 6” FRS05: 10” FRS10: 14” FRS15: 18” |
Fixed Knife | FBS1200SS/EXC: 0 FBS1500SS/EX: 0 FBS1600/EX: 1 |
Grapple Opening | FRS02: 35” FRS04: 35” FRS05: 33.5” FRS10: 43” FRS15: 43” FRS20: 59” |
Shear Min/Max | FRS02: 13/16 FRS04: 13/16 FRS05: 16/21 FRS10: 21/26 FRS15: 34/40 FRS20: 40/48 |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Fecon |
MODEL | Tree Shears |
