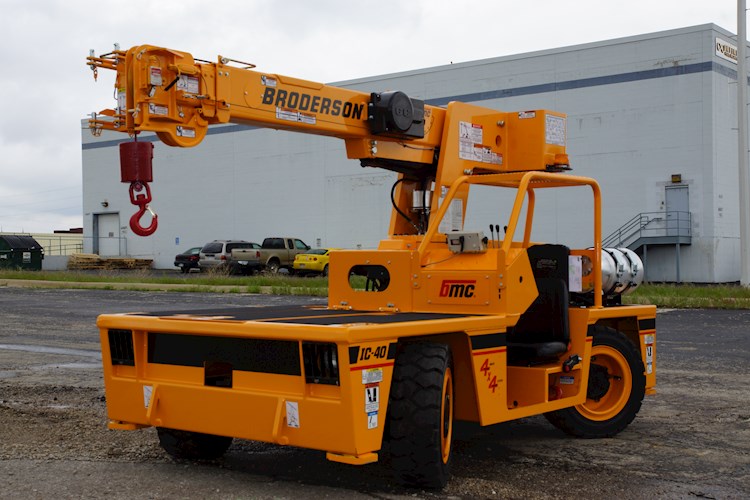

Renowned for its legendary reliability, return on investment and industry-leading performance, the IC 40 is a very popular compact pick and carry deck crane. Operator fatigue is minimized with easy to operate fully hydraulic controls that deliver smooth precise operation. The IC 40's tight turning radius enhances maneuverability, providing greater functionality at space-constrained work sites.
|Chassis||CARGO DECK: 29 sq. ft. (2.7m2) of deck area. 6,000 lbs. (2,720 kg) capacity on deck when load is centered over or between axles.
OUTRIGGERS: Four hydraulic outriggers of box-beam construction. Independent controls for each. Hydraulic cylinders are equipped with direct connected holding valves.
HEADLIGHT & TAILLIGHT GRILLES: Welded steel protective grilles for headlights and taillights.
LIFTING RINGS: Lifting rings at each corner of cargo deck so sling can be attached for lifting crane.
FRONT PULLING EYE: Mounted on front bumper
|Weight||8,920 lbs. (4,050 kg)|
|Capacity||11,400 lbs. (Pick and Carry)|
|Max Tip Height||46’|
|Engine Model||1.6L EFI & 1.8L D1803 (T4F)|
|Engine Type||Dual Fuel (1.6L EFI)
Diesel (1.8L D1803 (T4F))
|Cylinders||4 (1.6L EFI)
3 (1.8L D1803 (T4F))
|Horsepower||44 HP (1.6L EFI)
50 HP (1.8L D1803 (T4F))
|Displacement||1.6L (1.6L EFI)
1.8L (1.8L D1803 (T4F))
|Max Travel Speed||0 to 10 mph|
|Fuel Tank Capacity||13.5 Gallons|
|Axles||FRONT: Planetary drive/steer axle with 16.15:1 ratio. Differential equipped with “limited slip” feature. Axle is rigidly mounted to frame.
REAR: Planetary drive/steer axle with 16.15:1 ratio. Differential is “limited slip” in rear axle. 1-1/2 degree oscillation in either direction
|Pump||Piston type, direct driven from engine crankshaft|
|Hydraulic Capacity||14 Gallons|
|Hydraulic System||Piston type, direct driven from crankshaft|
|Maximum Pressure||4,000 PSI|
|Hydraulic Pump||TANDEM PUMP mounted to rear of hydrostatic piston pump. Delivers 6 GPM (23 L/min) at 2,600 PSI (179 bar) for boom circuits and 17 GPM (64 L/min) at 2,250 PSI (155 bar) for hoist circuit. System protected by relief valves.|
|Brakes||Primary braking from hydrostatic transmission. Foot-actuated wet-disc brakes in each axle for additional braking in some conditions. Lever-actuated parking brake to hold crane when not being driven.|
|Tires||28x9-15 pneumatic tires. Pressurized to 120 PSI (80 KPa) for crane rated loads.|
|Steering||Hydraulic steering unit with a cylinder attached to each axle. Rear axle is the primary steer. An electric switch in the operator’s compartment is used to select rear-wheel steering, four wheel round steer, or crab steering. Electronic sensors & control box automatically align the steering when a new mode STEERING is selected. 1/2 degree oscillation in either direction.|
|Lift Capacity||18,000 lbs.|
|Drawbar Pull||2,000 lbs.|
|Outriggers Up Lift Capacity||18,000 lbs.|
|Boom Extensions||7’2” to 19’2”|
|Max Boom Length||30’|
|Max Tip Height-Boom||19'|
|Boom Rotation||360° Continuous
Heavy-duty ball bearing rotation gear with external teeth. Rotation is powered by hydraulic motor & worm gear drive
|Boom Speed||1.4 RPM (Rotation)
17 sec. (Elevation)
32 sec. (Extension)
|Boom Hoist||Turret mounted planetary gear hoist hydraulically powered with a bare drum line pull of 5,000 lbs. (2,270 kg) & a line speed of 86 FPM (26 m/min). Hoist includes 85 ft. (26 m) of 3/8 in. (9.5 mm) wire rope, downhaul weight, swivel hook and sheave block for 2-part line.|
|Electrical System||LIGHTING PACKAGE: One pair headlights and taillight.
DISPLAY: Fuel, ammeter, oil pressure, and water temperature gauges, hydraulic oil temperature gauge and hourmeter.
BACK-UP ALARM: Provides pulsating sound from 97dB alarm when transmission is in reverse.
OUTRIGGER ALARM SYSTEM: Two-tone alarm is activated when “outrigger down” controls are operated.
