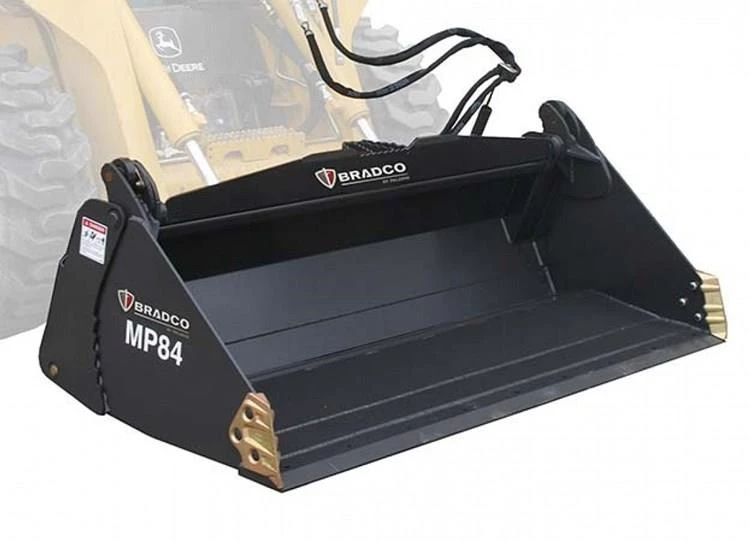

Bradco-Paladin Multi-Purpose 4-in-1 Bucket

New Bradco-Paladin Bucket

New Bradco Multi-Purpose 4-in-1 Bucket for Sale

The Bradco 4-in-1 Multi-Purpose Bucket functions as a loader bucket, clam, grapple, dozer, box scraper and bottom dump bucket. Has strong hinges and pins to distribute load. The bottom dump buckets allow the operator to dump into high-side board trucks. This product is also available CE certified.



Comes in:

  • Standard Duty Buckets
    • 60"
    • 66"
    • 72"
  • Heavy Duty Buckets
    • 72"
    • 78"
    • 84"
Dimensions
Length 37.47"
Width 60" SD Bucket: 60.96”
66" SD Bucket: 66.96”
72" SD Bucket: 72.96”
72" HD Bucket: 73”
78" HD Bucket: 78.75”
84" HD Bucket: 84.75”
Height 60", 66" & 72"-SD Bucket: 27.32”
72", 78" & 84"-HD Bucket: 27.69”
Weight 60" SD Bucket: 585 lbs.
66" SD Bucket: 620 lbs.
72" SD Bucket: 655 lbs.
72" HD Bucket: 900 lbs.
78" HD Bucket: 935 lbs.
84" HD Bucket: 975 lbs.
Clam Length SD Buckets: 23.06"
72" & 78" HD Buckets: 26"
84" HD Buckets: 27"
Clam Opening SD Buckets: 34.64"
SD Buckets: 34.79"
Backblade Length SD Buckets: 12.36"
HD Buckets: 11.52"
Hydraulic
Operating Pressure SD Buckets: 2250 PSI
HD Buckets: 3000 PSI
Operational
Application Agriculture
Construction
Demolition & Recycling
Forestry
Land Management
Material Handling
Clamping Force SD Buckets: 2,354 lbs.
HD Buckets: 6,400 lbs.
Heaped Capacity 60" SD Buckets: 12.23 cu/ft
66" SD Buckets: 15.76 cu/ft
72" SD Buckets: 17.23 cu/ft
72" HD Buckets: 19.99 cu/ft
78" HD Buckets: 21.69 cu/ft
84" HD Buckets: 23.4 cu/ft

Features

  • Replacement bolt-on wear edge, tooth bars and tooth bars that fit over bolt-on wear edge
  • Functions as a loader bucket, clam, dozer, scraper and bottom dump bucket
  • Strong hinges and pins to distribute load
  • SD & HD Buckets
    • Conventional or bottom dump buckets allows the operator to dump into high side board trucks
    • Long-floor design improves cutting edge visibility, for maximum accuracy when grading
    • Constructed of high tensile material for reduced weight and higher strength
  • HD Buckets
    • Dual check valve
    • Spherical bushings on cylinder ends
    • 1” x 6” cutter edge on front of clam and ¾” x 6” high carbon edge on rear of clam

Options

  • Bolt-on side cutters, spill guards
  • SD & HD Buckets
    • Removable spill plate for improved visibility
  • HD Buckets
    • Side cutters
    • Bolt-on tooth bars
    • Bolt-on tooth bar that will fit with bolt on edge

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Bradco-Paladin
MODEL Multi-Purpose 4-in-1 Bucket

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Bradco-Paladin Multi-Purpose 4-in-1 Bucket

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Bradco Multi-Purpose 4-in-1 Bucket for Sale

The Bradco 4-in-1 Multi-Purpose Bucket functions as a loader bucket, clam, grapple, dozer, box scraper and bottom dump bucket. Has strong hinges and pins to distribute load. The bottom dump buckets allow the operator to dump into high-side board trucks. This product is also available CE certified.



Comes in:

  • Standard Duty Buckets
    • 60"
    • 66"
    • 72"
  • Heavy Duty Buckets
    • 72"
    • 78"
    • 84"
GENERAL INFORMATION
Manufacturer
Bradco-Paladin
Model Year
Model
Multi-Purpose 4-in-1 Bucket
Condition
NEW
Dimensions
Length
37.47"
Width
60" SD Bucket: 60.96” 66" SD Bucket: 66.96” 72" SD Bucket: 72.96” 72" HD Bucket: 73” 78" HD Bucket: 78.75” 84" HD Bucket: 84.75”
Height
60", 66" & 72"-SD Bucket: 27.32” 72", 78" & 84"-HD Bucket: 27.69”
Weight
60" SD Bucket: 585 lbs. 66" SD Bucket: 620 lbs. 72" SD Bucket: 655 lbs. 72" HD Bucket: 900 lbs. 78" HD Bucket: 935 lbs. 84" HD Bucket: 975 lbs.
Clam Length
SD Buckets: 23.06" 72" & 78" HD Buckets: 26" 84" HD Buckets: 27"
Clam Opening
SD Buckets: 34.64" SD Buckets: 34.79"
Backblade Length
SD Buckets: 12.36" HD Buckets: 11.52"
Hydraulic
Operating Pressure
SD Buckets: 2250 PSI HD Buckets: 3000 PSI
Operational
Application
Agriculture Construction Demolition & Recycling Forestry Land Management Material Handling
Clamping Force
SD Buckets: 2,354 lbs. HD Buckets: 6,400 lbs.
Heaped Capacity
60" SD Buckets: 12.23 cu/ft 66" SD Buckets: 15.76 cu/ft 72" SD Buckets: 17.23 cu/ft 72" HD Buckets: 19.99 cu/ft 78" HD Buckets: 21.69 cu/ft 84" HD Buckets: 23.4 cu/ft
