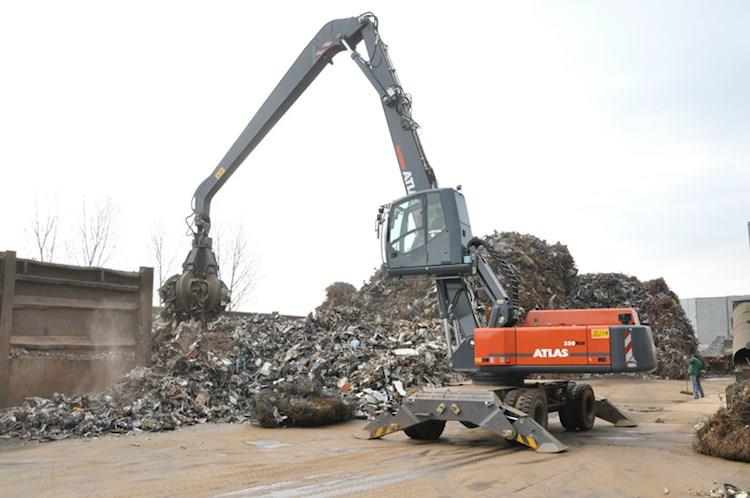

Atlas 350 MH

New Material Handler working

New Atlas 350 MH Material Handler for sale

ATLAS material handlers include mobile industrial machines and industrial tracked machines, which work on applications such as scrap, wood, bulky goods, special recycling, port applications and vacuum operations. They have fast cycle times, optimized handling, extended life spam, range of diverse equipment and so much more.

  • Fast cycle times
  • Optimized handling
  • Mechanical expertise
  • 102 years manufacturing experience
  • Reliability
  • Extended life span
  • Versatility
  • Range of diverse equipment to meet customer expectations
Dimensions
Length 18’9”
Width 9’8”
Height 10’7”
Weight 80,640 lbs.
Engine
Engine Make Deutz
Engine Model TCD 6.1 L6 EU Stage V
Engine Type Turbocharger/intercooler
Horsepower 245 HP
Number of Cylinders 6
Hydraulic
Hydraulic System AWE 4 system (load sensing)
Suction valves for all work functions
Temperature-controlled fan for cooler
Load-limit-controlled high-performance piston pumps
Load-retaining and fine-drop valve in lifting circuit
Fuel-efficient required power regulation
Pipe-break protection valves for lifting cylinders
Sensitive, proportional, independent control
Grab and grab-rotating function
Primary and secondary protection against overload
2 additional circuits for additional consumer loads possible
Operating Pressure 4641 PSI
Operational
Transmission Variable displacement motor, 2-gear transmission; Driving direction pre-selection via lever at steering-wheel; All-wheel drive
Grapple Size 1 Yard
Electrical
Starter 24 V/5.5 kW
Battery 2 x 12 V/100 Ah
  • Equipment
    • Basic Device Atlas 350MH
      • 350MH material handler with quadruple outrigger support and 2 lifting cylinders (A 84.32)
    • Booms
      • Loading boom 28'6" (C84.5i)
      • Loading boom 31' (C84.6i)
      • Loading boom 34'9" (C84.7i)
      • Loading boom 38'1" (C84.8i)
    • Sticks
      • Stick 18'1" (D84.15i)
      • Stick 22'6" (D84.16i)
      • Stick 25'4" (D84.17i)
      • Stick 29'6" (D84.18i) (for loading boom 10.60 m only (C84.7i))
    • Standard Equipment
      • Engine
        • Automatic idle
        • Diesel pre-filter
        • Engine monitoring
        • Diesel particulate filters
      • Hydraulics
        • Grab and grab-rotating function
        • Accumulator for emergency lowering of the arm system
        • Pipe break protection valves for lifting cylinders
        • Max. load-limit control
        • Cylinder end-position damping
        • Electrical central lubrication
      • Cab
        • Air-conditioning with automatic control
        • Preparation for radio installation
        • Slim steering column, height and tilt adjustable
        • Seat adjustable separately from console
      • Equipment
        • Combined lubricating points for swing bearing and arm equipment
      • Undercarriage
        • Wet disc brakes
  • Additional Equipment
    • Engine
      • Refueling pump
      • Auxiliary heating
      • Cold startup assistance
    • Hydraulics
      • Hydraulic kit, to operate front and rear supports separately
      • Hydraulic kit, to operate supports per axle separately
      • Bio oil
    • Cab
      • Cab protection guard
      • Beacon light
      • Heated driver's seat
      • Rdio CD/MP3, front AUX in, USB
      • Lift-Cab 8'6"
      • Vario cab can be elevated 6'7" high and 6'7" forwards
      • Cab elevation 2'/4'/4'9"/6'7"
      • Electric central lubrication system
      • LED working lights
    • Undercarriage
      • Solid rubber tyres
      • Tool box in the undercarriage
  • Attachments
    • Clamshell grab
    • Orange ppel grab
    • Load hook
    • Load lifting magnet
    • Log grab

Tires

  • Solid rubber, elastic 8-tyres 12.00-20

All machines are not available at all locations.

View Brochure

Main Technical Specifications
MAKE Atlas
MODEL 350 MH

Why rent when you can own?

Call us to see if ownership makes economical sense for you and your organization.

Atlas 350 MH

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Atlas 350 MH Material Handler for sale

ATLAS material handlers include mobile industrial machines and industrial tracked machines, which work on applications such as scrap, wood, bulky goods, special recycling, port applications and vacuum operations. They have fast cycle times, optimized handling, extended life spam, range of diverse equipment and so much more.

  • Fast cycle times
  • Optimized handling
  • Mechanical expertise
  • 102 years manufacturing experience
  • Reliability
  • Extended life span
  • Versatility
  • Range of diverse equipment to meet customer expectations
GENERAL INFORMATION
Manufacturer
Atlas
Model Year
Model
350 MH
Condition
NEW
Dimensions
Length
18’9”
Width
9’8”
Height
10’7”
Weight
80,640 lbs.
Engine
Engine Make
Deutz
Engine Model
TCD 6.1 L6 EU Stage V
Engine Type
Turbocharger/intercooler
Horsepower
245 HP
Number of Cylinders
6
Hydraulic
Hydraulic System
AWE 4 system (load sensing) Suction valves for all work functions Temperature-controlled fan for cooler Load-limit-controlled high-performance piston pumps Load-retaining and fine-drop valve in lifting circuit Fuel-efficient required power regulation Pipe-break protection valves for lifting cylinders Sensitive, proportional, independent control Grab and grab-rotating function Primary and secondary protection against overload 2 additional circuits for additional consumer loads possible
Operating Pressure
4641 PSI
Operational
Transmission
Variable displacement motor, 2-gear transmission; Driving direction pre-selection via lever at steering-wheel; All-wheel drive
Grapple Size
1 Yard
Electrical
Starter
24 V/5.5 kW
Battery
2 x 12 V/100 Ah
