Manitowoc MLC200

New Crane

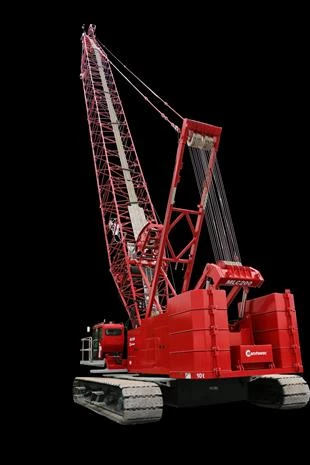

New Manitowoc MLC200 Crane for Sale

This 220 USt (200t) capacity crane provides efficient assembly, versatile performance, and superior serviceability. With FACT connections and button style rope terminations, reeving and boom assembly are simple and fast. The main boom, fixed jib and luffing jib combinations allow the flexibility you need for any jobsite configuration. Manitowoc’s Crane Control System (CCS) and wider tilting cab give the operator both comfort and control of the load for excellent productivity.
Body
Cab New wider cab provides 10% increased operator legroom. Fully enclosed and galvaneeled steel insulated module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, air conditioning, dome light, sun visor and shade, fire extinguisher and air circulating fan are standard.
• Optional: Vision cab, cab tilt, external RCI light, electronic level indicator, radio and camera system.
Car Body Connects rotating bed to crawler assemblies. High strength fabricated steel assembly with FACT™ connection system for fast installation and removal of crawler assemblies.
Dimensions
Length 32’2 ½”
Width 24’4 ¼”
Height 11’11 ¾”
Capacity 220 US tons
Engine
Engine Make Cummins
Engine Model QSL9
Engine Type Tier 4 Final/Stage V Engine
Cylinders 6
Horsepower 340 HP
Fuel Tank Capacity 150 Gallons
Control System The Crane Control System (CCS) offers a user-friendly interface, full graphic display mounted vertically for better visibility, a jog dial for easier data input and ergonomic joysticks. Block-up limit control is standard for hoist and whip lines. Travel and swing alarms are standard. RCL/RCI (Rated Capacity Limiter/Rated Capacity Indicator) system is standard.
Hydraulic
Hydraulic Capacity 145 Gallons
Hydraulic System Three high-pressure pumps are driven by the engine. Two pumps provide “open loop” hydraulic power enabling simultaneous multifunction capability. Two pumps provide independent “closed loop” hydraulic power for the swing and boom hoist system. An additional pump provides hydraulic power for the cooler fan and an additional pump is included with free fall.
Hydraulic reservoir capacity is 145 gallon (550 liter) and is equipped with breather, sight and electrical level indicator, clean out access, and internal diffuser. Replaceable, full flow tank filters are furnished in the hydraulic circuit. All oil is filtered prior to return to the hydraulic reservoir. Hydraulic system also includes hydraulic oil cooler.
Operational
Counterweight The upperworks counterweight is attached to rotating bed with remote controlled hydraulically actuated pins. The upperworks counterweight consists of a one-piece tray, one center counterweight adapter, and eight upper counterweight boxes. Carbody counterweight boxes are attached to carbody.
Series 1: Upper counterweight (4 pieces+tray) - 114,600 lb (51 980 kg)
Series 2: Upper counterweight (6 pieces+tray) - 149,600 lb (67 860 kg)
---Carbody counterweight (2 pieces) - 60,400 lb (27 400 kg)
---Total counterweight - 210,000 lb (90 808 kg)
Series 3: Upper counterweight (8 pieces+tray) - 184,600 lb (83 730 kg)
---Carbody counterweight (2 pieces) - 60,400 lb (27 400 kg)
---Total counterweight - 245,000 lb (111 130 kg)
Drum Two 37 in (940 mm) width drums are driven by independent variable displacement axial piston hydraulic motors through planetary reduction. Drums are grooved for 26 mm rope and mounted in rotating bed. Powered hoisting/lowering operation is standard with automatic (spring applied, hydraulically released) multi-disc brakes, and drum rotation indicators.
• Optional: free-fall operation for front and/or rear drums.
• Optional: auxiliary (third) hydraulic powered drum mounted in boom butt. Drum is grooved for 26 mm rope. All hydraulic and electrical components to equip drum come along with the drum.
Swing Independent single swing drive mounted in rotating bed is powered by a hydraulic motor driving a spur gear through a planetary reduction with internal brake
Swing Speed 1.8 RPM
Maximum Line Pull 31,500 lbs. (on drums 1 & 2) (rated)
Rope Length 1” (rotation-resistant)
Mast and Gantry The 20 part boom hoist reeving is reeved between the 10 sheave gantry and 11 sheave 9,1 m (30 ft) long live mast with the dead end on the gantry. When used with rigging block sheaves in the live mast the machine is capable of installing crawlers, carbody counterweights, stacking the upperworks counterweights and assembling the boom and jib. The gantry is also utilized to lift the entire upperworks counterweight assembly into place
Boom
Max Boom Length 292’
Max Jib Length Fixed: 80'
Luffing: 170'
Boom Hoist Independent boom hoist consists of a single drum grooved for 22 mm diameter wire rope. Includes 22 mm diameter wire rope for boom hoist reeving. Drum is powered by a fixed displacement hydraulic motor coupled to an internal brake and planetary gearbox equipped with ratchet and pawl.
Electrical
Altenator 110 amp

Versatile Performance

  • 292 ft (89 m) No. B10:76A main boom utilizes boom insert assemblies that can be interchanged with 14000
  • 80 ft (24.4 m) No. 134 fixed jib shares components with other models including the MLC150-1 and MLC250
  • 170 ft (51.8 m) No.135 luffing jib shares components with other models including the MLC150-1 and MLC250
  • 26 mm rotation resistant wire rope provides 31,500 lb (14 290 kg) linepull on drums 1 and 2

Efficient Assembly

  • Gantry raised counterweight reduces components and maintenance
  • Steel straps provide easy assembly and storage of boom suspension
  • Button style wire rope terminations for quick and easy reeving
  • FACT™ connected boom inserts for quick and efficient boom assembly

Superior Serviceability

  • CCS (Crane Control System) equipped utilizing common electrical components with current products across product lines
  • CCS provides individual function hour timing and on board diagnostics in the cab without the need for specialized equipment
  • Open loop hydraulics provide common architecture and many components with the MLC100, MLC150-1 and MLC250
  • 340 hp (254 kW) Cummins QSL9 Tier 4 final / Stage V engine
  • Quick drains and easily visible sight glasses allow for ease of preventative maintenance and daily checks
  • Freefall on drums 1 and 2
  • Tilt cab
  • Vision cab
  • Cameras
  • APU (Auxiliary power unit) and mast/boom work lights
  • Hybrid Powertrain – Parallel diesel electric hybrid including QSB4.5L Cummins engine
