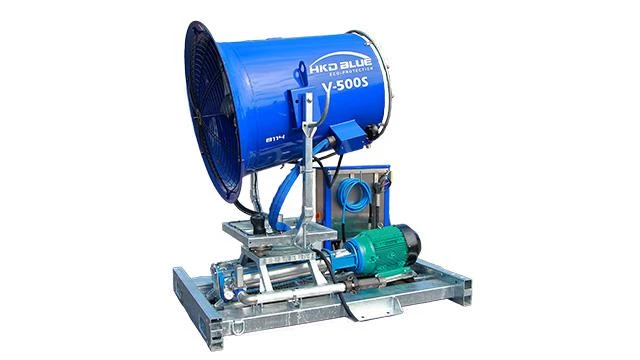

New HKD Blue V-500S Skid Cannon for Sale The skid mounted V-500S cannon removes the headache of popped tires and makes site location a breeze due to its compact frame. Load this cannon with industry leading coverage into the back of your long-bed pick-up truck and hit the road. It’s that simple. Complete with the GEYSER central nozzle (hyperlink to geyser page?) and outer misting ring, the skid mounted V-500S can provide an area coverage of 180,000 sq. ft. Fitted with self draining features and full remote functionality. Easily move the cannon by fork-lift or crane. The V-500S (Skid) unit is designed for the bed of your long-box pickup truck. Tow behind a 60kw generator, and you are ready to start up at a moments notice. Applications Include:
|
| Water System | |
|---|---|
| Pump Model | Goulds 10- |
| Stages | 15 |
| Connection | 2” fem cam |
| Pressure | Min: 10 PSI Max: 150 PSI @ 10 GPM: 450 PSI @ 100 GPM: 300 PSI |
| Stainless Filter | 595 microns |
| Geyser Flow | 10-100 GPM |
| Nozzle Ring | 15 GPM |
| Chassis | |
|---|---|
| Barrell | Powder Coated Steel |
| Skid | Galvanized Steel |
| Remote | |
|---|---|
| Battery | AA |
| Angle & Oscillation | Yes |
| Fan Start-Stop | Yes |
| Flow Adjustment | Yes |
| LED On-Off | Yes |
| Pump Start-Stop | Yes |
| Range | 1,000’ |
| Miscellaneous | |
|---|---|
| Oscillation | 259° |
| Cable Length | 100’ |
| Cable Size | AWG 4 |
| Electric Water Sensor | Yes |
| Forklift Accessible | Yes |
| Generator Req. | 70 kW |
| Nozzle Ring Quantity | 12 |
| Pressure Washer | Yes |
| Running Amps | 58 |
| Spring Loaded Drains | 3 |
| Trailer | |
|---|---|
| Hitch | N/A |
| Trailer | N/A |
| Motors | |
|---|---|
| Voltage | 480v |
| Frequency | 60 Hz |
| Electric Motor | 38 kW |
| Geyser Nozzle | 120v |
| Motor Oscillation | 24v |
| Fan Motor | 25 HP |
| Fan Capacity | 33,000 cfm |
| Automatic Oscillation | 350° |
| Elevation Jack | 120v |
| Dimensions | |
|---|---|
| Length | 80” |
| Width | 50” |
| Height | 85” |
| Weight | 1,950 lbs. |
| Performance | |
|---|---|
| Brakes | N/A |
| Flow | 100 GPM |
| Application | Dust Control and Dust Suppression; Smoke Emissions Control; Scrap Yard Fire Suppression; Local and Federal Dust Emissions Compliance |
| Pump Capacity | 10-80 GPM @ 300-500 PSI |
| Flow Rate | 10-100 GPM |
| Distance | 250’ |
| Droplet Size | 10-200 micron |
| Spray Angle | 0-45° |
| Misting Coverage | 177,000 ft² |
| Operation Type | Remote or Manual |
| Projection | 300’ |
| Pump Motor | 15 HP |
| Voltage/Frequency | 480v @ 60 Hz 600v @ 60 Hz 380v @ 50 Hz |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | HKD Blue |
| MODEL | V-500S |
