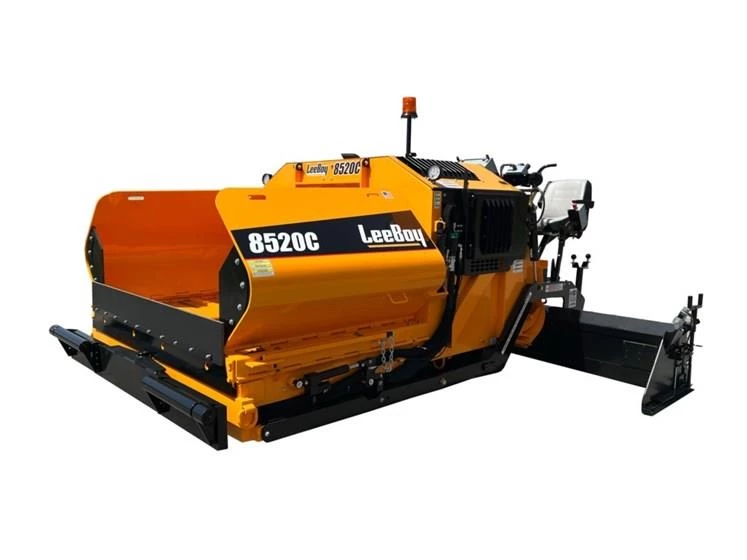

New LeeBoy 8520C Asphalt Paver for Sale We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8520C is a 125hp workhorse. Standard machine assets include the 3,450 lbs Legend HD Screed with, heavy-duty conveyor chains, dual seating and sliding main controls, a LeeBoy 2-year product warranty as well as many other enhancements. As always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat. |
| Dimensions | |
|---|---|
| Length | 14’10” |
| Height | 6’10” (high deck) |
| Weight | 21,400 lbs. |
| Transport Length | 13’10” |
| Transport Width | 8’6” |
| Engine | |
|---|---|
| Fuel Tank Capacity | 32 gallons |
| Engine/Drivetrain | |
|---|---|
| Engine Make | Kubota turbocharged diesel. Tier 4 Final |
| Horsepower | 125 HP |
| Steering | Dual electronic steering controls Electronically controlled pumps operated by the forward/reverse joysticks |
| Washdown System | Electric HD pump with hose and two hose reels |
| Track Drive System | Hydrostatically powered, self-cleaning crawler type |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 25 Gallons |
| Operational | |
|---|---|
| Paving Speed | 0 to 150’ per minute (1.7 mph) |
| Travel Speed - Forward | 0 to 300’ per minute (3.4 mph) |
| Push Rollers | Two rollers with sealed bearings mounted to allow pivoting on frame Vertically adjustable oscillating push rollers |
| Material Augers | Two hydraulically operated under auger material cutoffs |
| Material Handling | HD conveyor chains and flight bars Single point lube system Two 12” proportionally adjustable augers |
| Paving | |
|---|---|
| Paving Width | Variable up to 15’ |
| Paving Depth | 0”-6” Manual flight screws positioned on the screed to control material thickness |
| Screed | Legend HD Screed Consisting of a main screed and two hydraulically operated screed extensions |
| Screed Heat | Legend electric screed heat, 14.4 kw generator Electric timer and automatic RPM control system Environmentally safe, sealed s-curve elements in main screed and sealed blade style elements in extensions |
| Screed Vibration | Equipped with two electric vibrators, 4100 RPM |
| Screed Crown/Invert | Equipped with a crown/invert adjustment Includes a leveling indicator for the operator |
| Operators Platform | Full machine width platform Walkboard extensions slide outs, left and right Two operator seats |
| Operators Control | All control switches are in a single control box which slides from right side to left side Each side of the screed has independent control box |
| Track Size | 14” w x 87” l poly |
| Hopper | |
|---|---|
| Hopper Capacity | 9 ton |
| Hopper Wings | 10’ hopper wings down |
