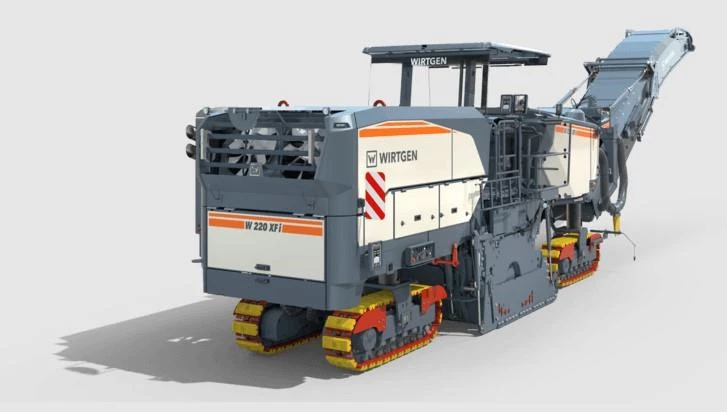

Wirtgen W 220 XF

Used Milling Machine

New WIRTGEN W 220 XF Large Milling Machine for Sale

Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.

The heavy-duty cold milling machine handle a wide range of applications, from surface layer rehabilitation to complete pavement removal and fine milling. Rapid milling drum assembly changes and particularly fast milling drum changes for milling widths of 7 ft 3 in (2.2. m), 8 ft 2 in (2.5 m), 11 ft 6 in (3.5 m) or 12 ft 6 in (3.8 m) thanks to the MCS (Multiple Cutting System) further expand the machine’s wide range of applications. Thanks to the unique DUAL SHIFT powershift transmission with extended milling drum speed, the W 220 XF is the perfect choice for particularly demanding milling taks.

Rugged and Compact High-Performance Cold Milling Machine

  • The rugged cold milling machine is ideal for a broad spectrum of applications ranging from surface layer rehabilitation to complete pavement removal and fine milling.
  • The machine’s already broad spectrum of applications is further expanded by the ability to quickly exchange milling drum assembly and the particularly fast exchangeability of milling drums with MCS – Multiple Cutting System – for milling widths of 2.2 m, 2.5 m, 3.5 m, or 3.8 m.
  • In automatic mode, the innovative MILL ASSIST machine control system always selects the best ratio between performance and costs and also allows the selection of a working strategy for the optimization of costs, performance, or quality.
  • Thanks to the unique DUAL SHIFT powershift transmission with extended milling drum speed, the W 220 XF is the perfect choice for particularly demanding milling tasks.
  • The new LEVEL PRO ACTIVE leveling system integrated in the machine control system optimizes the precision of height control and machine positioning.
Dimensions
Length 6’7”
Width 14”
Height 2’6”
Weight 83,335 lbs.
Engine
Engine Make John Deere
Engine Model 6180HD-S5-PDR
Cylinders 6
Horsepower 841 HP
Cooling Water
Displacement 1.092 in³
Fuel Consumption 42 gal/h (at rated power)
16.8 gal/h (in field mix)
Fuel Tank Capacity 343 Gallons
Water Tank Capacity 1,096 Gallons
Emission Standards EU Stage 5/US EPA Ter 4f
Drivetrain
Working Speed 0-33 MPH
Travel Speed - Forward 0-289 fpm
Hydraulic
Hydraulic Oil Capacity 31.7 Gallons
Operational
Cutting Width 7’3”
Cutting Depth 14”
Conveyor Belt Width 3’7” (primary)
3’3” (discharge)
Drum Diameter 3’9” (w/tools)
Conveyor Discharge Capacity 722 yd³/h
Electrical
Sound Level ≤113 dB(A) (w/EN 500-2 engine)
≥80 dB(A) (operator’s platform
Power Supply 24 V

Exhaust emissions category: EU Stage 5/US EPA Tier 4f

Operating weight: 83,335 lbs.

Milling Width: 7’3”

Milling Depth Max: 14”

Displacement: 1.092 in³

Max. travel and milling speed: 0-88 m/min (0-5.3 km/h)

Maximum Power: 627 kW/841 HP



Standard Equipment

Basic Machine

  • Base machine with engine
  • Machine frame featuring a single wasp waist at the rear right and a dual wasp waist at the front
  • DUAL SHIFT two-speed powershift transmission for efficient engine speeds combined with powerful milling drum speeds
  • Automatic pressure adjustment of the hydraulic pump for cylinder functions in accordance with performance requirements for reduced diesel consumption
  • Hydraulically opening, soundproof engine cowling
  • Air compressor system
  • Battery-operated hydraulic unit for auxiliary drive
  • Two cooling fans to minimize power consumption of the cooling system

Milling Drum Unit

  • Adjustment of material depressor contact pressure via the control panel or automatically via the MILL ASSIST feature to reduce chunk formation
  • Electrical adjustment of scraper contact pressure via the control panel
  • Automatically controlled locking feature of scraper
  • Milling drum rotation device with electro-hydraulic milling drum drive for slowly turning the milling drum during pick replacement
  • Single-piece water spray bar in the milling drum unit for reliable pick cooling and to prevent dust development
  • Automatic control of the water quantity via the MILL ASSIST feature
  • Height adjustment stroke increased by 8 in (200 mm) to facilitate pick replacement and the exchange of milling drum units
  • Pre-fitting to allow the quick exchange of milling drum units
  • Hydraulically lifting side plats, clearance right 18 in (450 mm), clearance left 13 in (330 mm)

Loading of the Milled Material

  • Increased conveyor swing angles of 65° each to the left and right
  • Discharge conveyor with adjustable conveying speed and two slewing speeds for precise loading
  • Boost feature for a temporary increase of the belt speed and conveying performance of the discharge conveyor by 20%
  • Water spray system in the primary conveyor
  • Larger conveyor pump for a constant belt speed even at a low engine speed of 1,300 rpm

Machine Control and Leveling System

  • User-friendly control panel including 7” color screen
  • LEVEL PRO ACTIVE leveling system with numerous automated and complementary operator relieving features
  • LEVEL PRO ACTIVE – automatic height control in transport mode
  • LEVEL PRO ACTIVE – ramp milling and auto-start feature for the second milling cut
  • RAPID SLOPE cross-slope sensor for LEVEL PRO ACTIVE leveling system
  • MILL ASSIST assistance system for automatic adjustment of the milling drum speed in accordance with the main area of application and the parameters selected in terms of engine load, advance rate, milling volume and quality of the milling pattern
  • Automatic start-stop feature of the milling drum to reduce diesel consumption
  • Comprehensive machine diagnostics on the control panel including, for example, a diagnostic system for the CAN bus
  • Voltmeter integrated into the control panel for voltage measurement in the event of a malfunction
  • Two control panels for operating functions performed by ground crew

Operator’s Platform

  • Convenient access to the operator’s platform, left and right
  • Anti-vibration mounted operator’s platform across the full width of the machine including fold-out railing, right
  • Electrical control cabinet on the operator’s platform for optimum accessibility and fast troubleshooting
  • Electrical level indicator for the water tank on the external control panels
  • Time display on the main control panel and on the exterior control panels
  • Two mirrors at the front, one mirror at the rear of the machine

Track Unit and Height Adjustment

  • PTS – automatic alignment of the machine parallel to the pavement surface
  • ISC – intelligent track speed control including hydraulic four-track drive
  • Fourfold full-floating axle for high machine stability
  • High travel speed of up to 88 m/min at low engine speeds (1,350 rpm), reduced diesel consumption and low noise emissions

Miscellaneous

  • “Welcome-and-Go-Home-Light” feature in the area of the operator’s platform and access
  • Large storage compartment on the machine for pick containers
  • High-pressure water system with automatic on/off function, 261 psi (18 bar), 17.7 gal/min (67 l/min)
  • Good accessibility to all maintenance points on the engine station
  • Pneumatic hammer with pick extractor/inserter
  • Large tool kit in lockable tool box
  • A total of six EMERGENCY STOP switches in appropriate positions on the machine
  • Pre-fitting for installing the WITOS FleetView control unit
  • European type certification, EuroTest mark and CE conformity



Standard Equipment, can be replaced with optional equipment if desired

Milling Drum Unit

  • Milling drum housing FB2200 (7 ft 3 in)
  • Water spray bar for FB2200 (7 ft 3 in)

Milling Drums

  • Milling drum FB2200 (7 ft 3 in) HT22 PLUS LA15 with 180 picks

Loading of the Milled Material

  • Discharge conveyor, 26 ft 9 in (8,150 mm) long, 3 ft 3 in (1,000 mm) wide, with hydraulic folding device

Operator’s Platform

  • Operator’s platform with functional stand-up seat

Miscellaneous

  • Water tank filling from rear of machine
  • John Deere Operations Center: Digital solutions for optimizing processes, machines, and services
  • Standard LED lighting system with 19,700 lumens
  • Milling Drum Unit
    • Milling drum housing MCS BASIC FB2200 (7 ft 3 in)
    • Milling drum housing MCS BASIC FB2500 (8 ft 2 in)
    • Milling drum housing MCS EXTEND FB3500 (11 ft 6 in)
    • Milling drum housing MCS EXTEND FB3800 (12 ft 6 in)
    • Quick-change milling drum unit FB2200 (7 ft 3 in) MCS BASIC
    • Quick-change milling drum unit FB2500 (8 ft 2 in) MCS BASIC
    • Quick-change milling drum unit FB3800 (12 ft 6 in) MCS EXTEND
    • Electrically switchable sectional water spray bar for FB2200 (7 ft 3 in)
    • Water spray bar for FB2500 (8 ft 2 in)
    • Electrically switchable sectional water spray bar for FB2500 (8 ft 2 in)
    • Four-part water spray bar for FB3500 (11 ft 6 in)/FB3800 (12 ft 6 in) with section controller
    • Electrically switchable sectional water spray bar for FB3500 (11 ft 6 in)/FB3800 (12 ft 6 in)
    • Mounting aid for lifting out the primary conveyor when changing the milling drum unit
    • Actual milling depth measurement and display on the LEVEL PRO ACTIVE panel
    • Overload sensors installed on the scraper
    • Active floating position for the side plates, left and right
    • Extension of MCS BASIC with a hydraulically opening side door for FB2200 (7 ft 3 in)/FB2500 (8 ft 2 in)
    • Wear protection rollers for side plates, left or right
    • Transport carriage for milling drum units from FB2200 (7 ft 3 in) to FB4400 (14 ft 5 in)
    • Milling drum mounting and transport carriage FB1500 (4 ft 11 in) to FB2500 (8 ft 2 in)
    • Transport roller set for simplified milling drum unit change (FB1500 (4 ft 11 in) – FB3800 (12 ft 6 in))
  • Milling Drums
    • Milling drum FB2200 (7 ft 3 in) HT22 PLUS LA18 with 156 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA15 with 180 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA18 with 156 picks
    • Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 PLUS LA15 with 196 picks
    • Milling drum MCS EXTEND FB3500 (11 ft 6 in) HT22 PLUS LA15 with, multi-part, with 294 picks
    • Milling drum MCS EXTEND FB3800 (12 ft 6 in) HT22 PLUS LA15 with, multi-part, with 314 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA8 with 297 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA25 with 134 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT5 PLUS LA6X2 with 740 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA8 with 18 standard picks and 280 PCD tools
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA15 with 18 standard picks and 162 PCD tools
    • Milling drum MCS BASIC FB2500 (8 ft 2 in) HT5 PLUS LA6X2 with 840 picks
    • Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 PLUS LA8 with 335 picks
    • Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 PLUS LA25 with 141 picks
    • Milling drum MCS BASIC FB2200 (7 ft 3 in) HT22 PLUS LA25 with 136 picks
    • Milling drum MCS BASIC FB2500 (8 ft 2 in) HT22 PLUS LA25 with 148 picks
  • Loading of the Milled Material
    • Discharge conveyor, 26 ft 9 in (8,150 mm) long, 3 ft 3 in (1,000 mm) wide
    • VCS extraction system
    • Signal lights for visual “stop” and “go” instructions for the truck driver
    • Support device for discharge conveyor
    • ACTIVE CONVEYOR swing angle control for discharge conveyor
  • Machine Control and Leveling System
    • Extension of LEVEL PRO ACTIVE with one hydraulic sensors mounted on the right
    • Extension of LEVEL PRO ACTIVE with two hydraulic sensors mounted on the left and the right
    • Extension of LEVEL PRO ACTIVE with two ultrasonic sensors for multiplex scanning
    • Extension of LEVEL PRO ACTIVE with four ultrasonic sensors for multiplex scanning
    • Extension of LEVEL PRO ACTIVE with two ultrasonic sensors for multiplex scanning (FB3500 (11 ft 6 in)/FB3800 (12 ft 6 in)
    • Extension of LEVEL PRO ACTIVE with four ultrasonic sensors for multiplex scanning (FB3500 (11 ft 6 in)/FB3800 (12 ft 6 in)
    • Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines without canopy
    • Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines with canopy
    • Extension of LEVEL PRO ACTIVE with pre-fitting for 3D leveling for machines with cabin
    • Extension of LEVEL PRO ACTIVE with two laser receivers
  • Operator’s Platform
    • Operator’s platform with functional stand-up seat, large storage compartment
    • Operator’s platform with functional stand-up seat, a large storage compartment and weather canopy
    • Operator’s platform with a high-quality comfort cabin
    • Additional stand-up seat for operator’s platform
    • Heating operator’s platform
  • Miscellaneous
    • Hydraulically operated filling pump for water refilling
    • WPT Milling including WITOS FleetView – precise tracking of the milling performance for machines without canopy or with operator’s cabin
    • Extended LED lighting system with 43,600 lumens
    • High-performance LED lighting system with 93,600 lumens, including LED lighting balloon
    • Two additional weights with a total weight of 3,307 lbs (1,500 kg)
    • Compact storage compartment at the rear of the machine for a pick container
    • Large storage compartment at the rear of the machine for 72 pick containers
    • Preliminary equipment for hydraulically driven sweeping brush
    • Storage compartment close to the rear track units for 10 pick containers
    • Hydraulically driven sweeping unit
    • Powerful high-pressure water cleaner, 2,176 psi (150 bar), 4 gal/min (15 l/min)
    • One hydraulic pick ejector
    • Two hydraulic pick ejectors
    • 5” control panel for controlling the leveling system
    • 7” control panel for displaying the machine control system and for controlling the leveling system
    • Qty. 1-2” control panel including favorites buttons
    • Qty. 2-2” control panels including favorites buttons
    • User-specific storage of machine settings via SMART KEY key fob
    • 2-fold camera system
    • 4-fold camera system with 10” control panel
    • 8-fold camera system with 10” control panel
    • Monitor system for cabin option with 8 cameras and 10” control panel
    • Dual starter system
    • Electrical diesel suction and pressure pump including 24 ft 7 in (7.50 m) suction hose
    • License plate holder with LED lighting
    • Additional double air horn at the top end of the discharge conveyor for signaling purposes
    • Additional weight 7,937 lbs (3,600 kg)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Wirtgen
MODEL W 220 XF

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Wirtgen W 220 XF

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New WIRTGEN W 220 XF Large Milling Machine for Sale

Large milling machines have a milling drum positioned centrally beneath the machine and a two-part front-loading system. Trucks can be loaded quickly and flexibly via the slewing and height-adjustable discharge conveyor. A variety of different milling drums and milling drum assemblies are available to cater to the wide array of milling tasks. They can be exchanged quickly and easily to suit the application. The range of applications extends from wide-scale complete removal down to a depth of 35 cm in a single pass to the rehabilitation of concrete pavements and airport runways as well as fine milling to improve pavement skid resistance.

The heavy-duty cold milling machine handle a wide range of applications, from surface layer rehabilitation to complete pavement removal and fine milling. Rapid milling drum assembly changes and particularly fast milling drum changes for milling widths of 7 ft 3 in (2.2. m), 8 ft 2 in (2.5 m), 11 ft 6 in (3.5 m) or 12 ft 6 in (3.8 m) thanks to the MCS (Multiple Cutting System) further expand the machine’s wide range of applications. Thanks to the unique DUAL SHIFT powershift transmission with extended milling drum speed, the W 220 XF is the perfect choice for particularly demanding milling taks.

Rugged and Compact High-Performance Cold Milling Machine

  • The rugged cold milling machine is ideal for a broad spectrum of applications ranging from surface layer rehabilitation to complete pavement removal and fine milling.
  • The machine’s already broad spectrum of applications is further expanded by the ability to quickly exchange milling drum assembly and the particularly fast exchangeability of milling drums with MCS – Multiple Cutting System – for milling widths of 2.2 m, 2.5 m, 3.5 m, or 3.8 m.
  • In automatic mode, the innovative MILL ASSIST machine control system always selects the best ratio between performance and costs and also allows the selection of a working strategy for the optimization of costs, performance, or quality.
  • Thanks to the unique DUAL SHIFT powershift transmission with extended milling drum speed, the W 220 XF is the perfect choice for particularly demanding milling tasks.
  • The new LEVEL PRO ACTIVE leveling system integrated in the machine control system optimizes the precision of height control and machine positioning.
GENERAL INFORMATION
Manufacturer
Wirtgen
Model Year
Model
W 220 XF
Condition
NEW
Dimensions
Length
6’7”
Width
14”
Height
2’6”
Weight
83,335 lbs.
Engine
Engine Make
John Deere
Engine Model
6180HD-S5-PDR
Cylinders
6
Horsepower
841 HP
Cooling
Water
Displacement
1.092 in³
Fuel Consumption
42 gal/h (at rated power) 16.8 gal/h (in field mix)
Fuel Tank Capacity
343 Gallons
Water Tank Capacity
1,096 Gallons
Emission Standards
EU Stage 5/US EPA Ter 4f
Drivetrain
Working Speed
0-33 MPH
Travel Speed - Forward
0-289 fpm
Hydraulic
Hydraulic Oil Capacity
31.7 Gallons
Operational
Cutting Width
7’3”
Cutting Depth
14”
Conveyor Belt Width
3’7” (primary) 3’3” (discharge)
Drum Diameter
3’9” (w/tools)
Conveyor Discharge Capacity
722 yd³/h
Electrical
Sound Level
≤113 dB(A) (w/EN 500-2 engine) ≥80 dB(A) (operator’s platform
Power Supply
24 V

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
LOCATIONS
CAREERS
CONTACT
