Vogele SUPER 2100-5 X

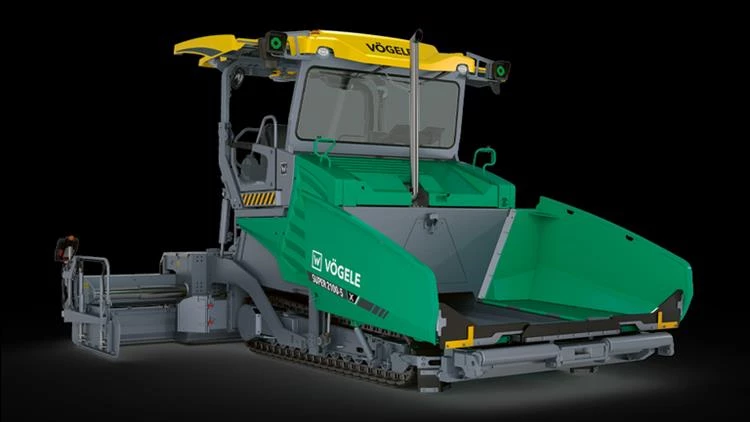

New VOGELE Paver

Kirby-Smith Machinery has a new VOGELE SUPER 2100-5 X Road Paver for Sale

Far and wide: The VÖGELE pavers of the Highway Class are perfectly at home on highways and handling other demanding large-scale projects. Immense paving widths and laydown rates, the possibility of using high compaction technology and plenty of power are all part of the package with these pavers.



The Dash 5 paver SUPER 2100-5 X

With the SUPER 2100-5 X-Tier tracked paver, VÖGELE is taking two steps into the future at once: new operator ergonomics, more automated processes and faster setup times, together with reduced noise and exhaust emissions. Highway Class pavers are perfectly at home whether on highways or handling other demanding large-scale projects.



Technologies

  • ErgoPlus 5; ErgoPlus – The operating concept: An innovative machine with the latest technology also includes an advanced operating concept. This must be easy and intuitive to use – and simultaneously ergonomic. The ErgoPlus 5 operating concept makes the operator the focus.
  • Comfort Package with PAC (Paver Access Control): The Comfort Package makes operating Dash 5 pavers more user-friendly, safe and ergonomic than ever before. The Comfort Package includes the PAC comfort access feature, Ergonomic Plus operator seats, luggage nets, sound insulation in the canopy, and bottle holders.
  • VOGELE EcoPlus: The fact that our road pavers comply with the applicable emissions directives is by no means enough for us. The machine concept of the “Dash 5” generation is based on environmentally friendly machine technology. An important building block for this is VOGELE EcoPlus which reduces consumption and emissions.
  • Light Package and Light Package Plus: In the Light Package and Light Package Plus, VOGELE offers two options for optimum illumination of the workplace for the Dash 5 machine generation.



Highlights

  • Latest-generation tracked paver, with a large range of applications and pave widths up to 32 ft. (9.75 m)
  • Powerful John Deere engine, meaning one-stop service
  • The VOGELE EcoPlus low-emissions package significantly reduces fuel consumption and noise
  • ErgoPlus 5 – the next step in the evolution of VOGELE’s tried and tested operating concept
  • Equipped for the future with ErgoPlus 5 Premium Touch
  • Optimum material feed thanks to the large material hopper, the PaveDock sprung push-rollers, and the PaveDock Assistant communication system
  • Improved safety and reduced setup times at night-working job sites thanks to Light Package and Light Package Plus
  • Paver Access Control (PAC) makes the paver ready for operation and transport more quickly
  • Auto Grade Plus and Grade Assist automated grade and slope control for automated roof profile and transverse profile paving
  • New-generation screeds with Dual Shift Tamper for rapid tamper stroke adjustment
Body
Lubrication Centralized lubrication system with electrically driven grease pump
Dimensions
Length 17’8”
Width 11’
Height 12’8”
Weight AB 500 TV: paving widths up to 16’5”: 51,370 lbs.
AB 500 TV: paving widths up to 28’8”: 63,275 lbs.
Auger Type 2, with replaceable auger blades and reversible direction of rotation
Engine
Engine Type Diesel Engine
Fuel Tank Capacity 105 Gallons
Transport Speed 2.7 MPH
Exhaust gas after-treatment DOC, DPF, SCR
Engine/Drivetrain
Engine Make John Deere
Engine Model 6.8L PVS
Cylinders 6
Horsepower 250 HP (Nominal)
238 HP (ECO mode)
Cooling Liquid-cooled
Track Type With Rubber Pads
Emission Standards European exhaust emissions standard EU Stage 5, US standard EPA Tier 4f, India CEV 5, South Korea KMOE 5
Traction Drive Electronically controlled separate hydraulic drive provided for each crawler track
Auger Height Infinitely variable hydraulically up to 6”
Track Tension Adjuster Spring assembly
Operational
Paving Speed 82 FPM
Feed Height 23”
Hopper Width 10’9”
Conveyor Drive Separate hydraulic drive provided for each conveyor
Conveyor Speed Up to 147 fpm, infinitely variable (manual or automatic)
Push Rollers Oscillating
Position: can be displaced forwards by 4”
Option: sprung and oscillating (PaveDock), displaceable longitudinally by 4”
Ground Contact 10’12”
Auger Diameter 19”/16”/13”
Auger Drive Separate hydraulic drive provided for each auger
Auger Speed Up to 80 RPM, infinitely variable (manual or automatic)
Screed Power Three-phase AC generator
Lubrication of Track Rollers Lifetime
Screed Compacting Systems TV, TP1, TP2, TP2 Plus
Screed Layer Thickness Up to 12”
Conveyor Type 2, with replaceable feeder bars, direction of conveyor temporarily reversible
Screed Length AB500/600: TV-22’/TP1, TP2, TP2 Plus-22’5”
SB 300/350: TV, TP1, TP2: 21’6”
SB 300 HD: TV-21’6”
Paving
Screed Width AB 500: 8’4”-16’5”
AB 600: 9’10”-19’8”
Max Width:
AB 500: 28’8” (TV/TP1/TP2); 26’3” (TP2 Plus)
AB 600: 32’ (TV/TP1/TP2); 29’6” (TP2 Plus)
Screed Heat Electric by heating rods
Hopper
Hopper Capacity 15.4 tons, including conveyor tunnel
  • Nominal output: 250 HP
  • Basic width: 8’4”
  • Paving Width, max: 45’11”
  • Maximum Laydown rate: 1,210 US t/hr
  • Transport Width: 8’4”



  • Powerful oil-cooled generator
  • VOGELE EcoPlus low-emissions package (Standard only for exhaust emissions standard EU Level 5, US EPA Tier 4f)
  • ErgoPlus 5 paver operator’s platform with fixed roof
  • Large receiving hopper with 30,865 lbs. (14 tonnes) capacity
  • Sonic sensor to control augers
  • Auger tunnel illumination
  • John Deere Operations Center
  • Paver operator’s console Premium Touch
  • Windshield with wipers
  • Convenience package with Paver Access Control (PAC)
  • Pave Assist Plus to automate routine tasks
  • Light Package and Light Package Plus
  • PaveDock Assistant communication system
  • PaveDock sprung push-rollers
  • Hydraulic hopper front
  • Auto Grade Plus and Grade Assist for automated grade and slope
  • Ventilation system
  • VOGELE RoadScan comprehensive asphalt temperature measuring system
  • Hydraulic tamper stroke adjustment at the touch of a button
  • AutoTrac automatic steering and width control
