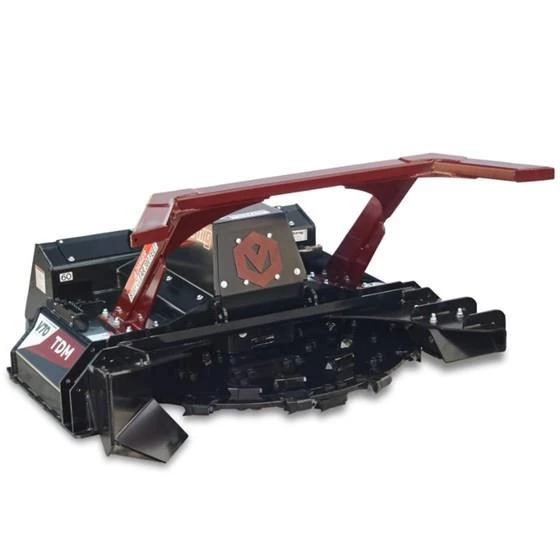

Virnig V70 Tree Disc Mulcher

New Tree Mulcher for Sale

New Virnig V70 Tree Disc Mulcher for Sale

Efficiently mulch 6-8” diameter trees and quickly cut up to 14” diameter trees.

Models

  • TDM60
Dimensions
Width 60”
Weight 2,710 lbs.
Overall Width 70”
Overall Height 40.5"
Deck Height 11"
Cutting Width 60”
Overall Depth 77.5"
Push Bar Height 40.5"
Disc Thickness 1.25"
Deck Thickness 0.25" (top, side)
0.375" (inside)
Engine
GPM Range 30-45 High Flow Only
Operational
Number of Tools/Teeth 12 Teeth on Top
20 Teeth on Bottom
12 Teeth on Outside
Capacity Greater than 2,800 lbs. (recommended loader)
Cutting Capacity Diameter 14”
Cut Height 2.1" (min)
Disc Tip Speed TDM60-HF45: 11,155 FPM @ 30 GPM; 13,006 FPM @ 35 GPM; 14,875 FPM @ 40 GPM; 16,730 FPM @ 45 GPM
TDM60-HF50: 14,810 FPM @ 45 GPM; 16,460 FPM @ 50 GPM
  • BENT-AXIS PISTON MOTOR WITH RELIEF VALVES
  • STANDARD MOTOR GUARD & SPINDLE GUARD
  • 60″ FULLY-MACHINED PERFECTLY BALANCED QUADCO® DISC
  • BOLT-ON STEEL TOOTH MOUNTS WITH FOUR-SIDED ROTATABLE & REPLACEABLE TEETH (CARBIDE TEETH AVAILABLE)
  • 3 DECK MOUNTED TEETH & RECUTTER BAR FOR A FINER FINISH
  • 3/8″ GRADE 80 INTERIOR DECK WELDMENT
  • REPLACEABLE PUSH BAR, CHUTE & DEFLECTOR
  • TWO CHUTE STYLES Choose from two chute styles; standard or open.

STANDARD CHUTE

  • Tapered design helps guide trees into the disc.
  • Bottom edge drops below the disc to scoop trees.



OPEN CHUTE

  • Increased space between chute and disc to process larger, bushy material.
  • Bottom edge flush with disc allowing work at or below grade.
