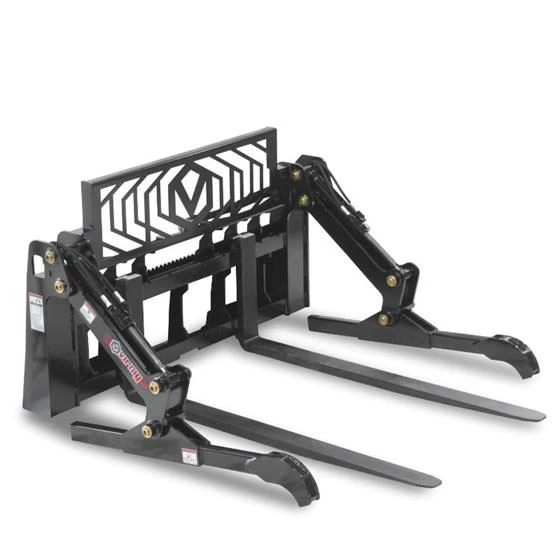

Virnig V60 Two-Cylinder Pipe Pallet Fork Grapple

New Virnig Grapple for Sale

New Virnig V60 Two-Cylinder Pipe Pallet Fork Grapple for Sale

Two-cylinder independent clamp arms open to near vertical for handling palleted material.

Models

  • PPFG248
  • PPFG260
Dimensions
Weight PPFG248: 920 lbs.
PPFG260: 925 lbs.
Overall Width 70.8”
Overall Height 81.4” (open)
40.4” (closed)
Tine Length PPFG248: 48”
PPFG260: 60”
Tine Thickness PPFG248: 1.75”
PPFG260: 1.5”
Tine Width 4.0”
Overall Depth PPFG248: 56”
PPFG260: 67.5”
Grapple Arm Width 8.3”
Operational
Lift Capacity PPFG248: 6200 lbs.
PPFG260: 5500 lbs.
Tine Spacing 8.9”-49.1”
Recommended Loader Capacity Greater than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.25”
  • 48” OR 60″ ITA CLASS II FORGED TINES
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V60 Two-Cylinder Pipe Pallet Fork Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V60 Two-Cylinder Pipe Pallet Fork Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V60 Two-Cylinder Pipe Pallet Fork Grapple for Sale

Two-cylinder independent clamp arms open to near vertical for handling palleted material.

Models

  • PPFG248
  • PPFG260
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V60 Two-Cylinder Pipe Pallet Fork Grapple
Condition
NEW
Dimensions
Weight
PPFG248: 920 lbs. PPFG260: 925 lbs.
Overall Width
70.8”
Overall Height
81.4” (open) 40.4” (closed)
Tine Length
PPFG248: 48” PPFG260: 60”
Tine Thickness
PPFG248: 1.75” PPFG260: 1.5”
Tine Width
4.0”
Overall Depth
PPFG248: 56” PPFG260: 67.5”
Grapple Arm Width
8.3”
Operational
Lift Capacity
PPFG248: 6200 lbs. PPFG260: 5500 lbs.
Tine Spacing
8.9”-49.1”
Recommended Loader Capacity
Greater than 1500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.25”
