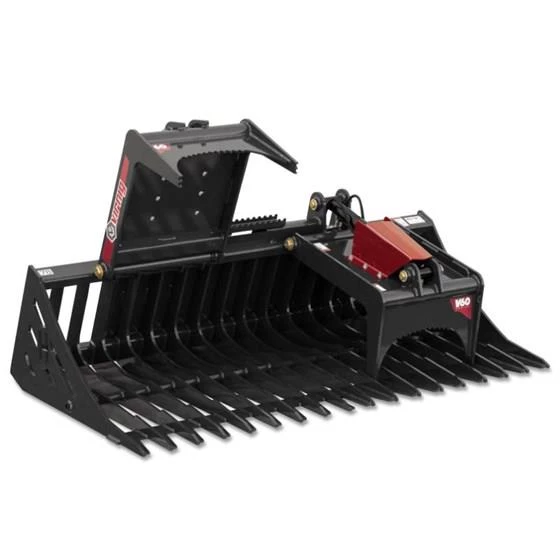

New Virnig V60 Skeleton Rock Grapple for Sale The toughest rock grapple built for the most demanding applications. Models
|
| Specs | |
|---|---|
| Number of Tines | HSRGV72: 17 (w/sides) HSRGV78: 18 (w/sides) HSRGV84: 20 (w/sides) HSRGV90: 21 (w/sides) |
| Body | |
|---|---|
| Tine Tip Type | Smooth |
| Tine Tip Cross Member | Yes |
| Side Plates | Yes |
| Dimensions | |
|---|---|
| Weight | HSRGV72: 1080 lbs. HSRGV78: 1115 lbs. HSRGV84: 1170 lbs. HSRGV90: 1205 lbs. |
| Overall Width | HSRGV72: 73.5” HSRGV78: 79.5” HSRGV84: 85.5” HSRGV90: 91.5” |
| Overall Height | 27.8” |
| Bucket Height | 21.5” |
| Tine Thickness | 0.5” (*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).) |
| Overall Depth | 42.9” |
| Space Between Tines | HSRGV72: 4.0” HSRGV78: 4.1” HSRGV84: 3.9” HSRGV90: 4.0” |
| Operational | |
|---|---|
| Tine Spacing | HSRGV72: 4.0” HSRGV78: 4.1” HSRGV84: 3.9” HSRGV90: 4.0” |
| Recommended Loader Capacity | Greater than 1800 lbs. |
| Cylinder Bore | 2.0” |
| Cylinder Pins Diameter | 1.25” |
| Cylinder Stroke | 8.375” |
| Hinge Pin Diameter | 1.563” |
| Grapple Jaw Opening | 36.1” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Virnig |
| MODEL | V60 Skeleton Rock Grapple |
