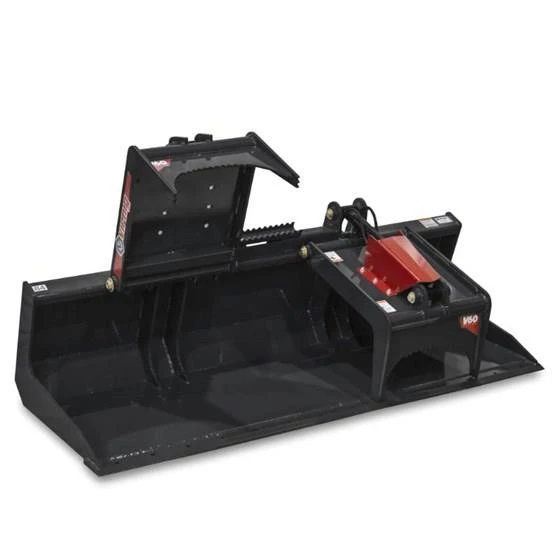

Virnig V60 Scrap Grapple

New Virnig Scrape Grapple for Sale

New Virnig V60 Scrap Grapple for Sale

The toughest solid bottom grapple for scooping and hauling loose and bulky debris.

Models

  • ISG72
  • ISG78
  • ISG84
  • ISG90
Body
Structural Wear Bars under Bucket ISG72: 4 (1/2” x 4”)
ISG78: 5 (1/2” x 4”)
ISG84: 5 (1/2” x 4”)
ISG90: 5 (1/2” x 4”)
Bucket and Jaw Steel Type Grade 50
Extra Bucket Reinforcement Yes
Number of Vertical Braces 4
Dimensions
Weight ISG72: 1080 lbs.
ISG78: 1130 lbs.
ISG84: 1170 lbs.
ISG90: 1210 lbs.
Overall Width ISG72: 73.5”
ISG78: 79.5”
ISG84: 85.5”
ISG90: 91.5”
Overall Height 29.0”
Bucket Height 22.5”
Overall Depth 35.5”
Operational
Recommended Loader Capacity Greater than 2400 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 38.8”
  • EXTRA BRACE PLATE & 1/2” VERTICAL BRACES INSIDE BUCKET FOR ADDED STRENGTH
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • 3/4″ x 6″ WELD-ON EDGE
  • STANDARD WITH CYLINDER GUARDS
  • BOLT-ON EDGE INSTALLED
    • Extends bucket edge life.
    • Reversible 5/8” x 8” bolt-on wear edge with 5/8” plow bolt holes spaced 6” on center.
    • Available on all Virnig Buckets except skeleton style, unless noted.
  • SERRATED BOLT-ON EDGE INSTALLED
    • Excellent alternative to toothbar for chiseling and breaking up compacted soil.
    • 3/4″ x 8″ single bevel, serrated edge with 5/8″ plow bolt holes spaced 6″ on center.
    • Available on all Virnig Buckets except skeleton style, unless noted.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V60 Scrap Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V60 Scrap Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V60 Scrap Grapple for Sale

The toughest solid bottom grapple for scooping and hauling loose and bulky debris.

Models

  • ISG72
  • ISG78
  • ISG84
  • ISG90
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V60 Scrap Grapple
Condition
NEW
Body
Structural Wear Bars under Bucket
ISG72: 4 (1/2” x 4”) ISG78: 5 (1/2” x 4”) ISG84: 5 (1/2” x 4”) ISG90: 5 (1/2” x 4”)
Bucket and Jaw Steel Type
Grade 50
Extra Bucket Reinforcement
Yes
Number of Vertical Braces
4
Dimensions
Weight
ISG72: 1080 lbs. ISG78: 1130 lbs. ISG84: 1170 lbs. ISG90: 1210 lbs.
Overall Width
ISG72: 73.5” ISG78: 79.5” ISG84: 85.5” ISG90: 91.5”
Overall Height
29.0”
Bucket Height
22.5”
Overall Depth
35.5”
Operational
Recommended Loader Capacity
Greater than 2400 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.563”
Grapple Jaw Opening
38.8”
