Virnig V60 Root Rake Grapple

New Grapple for Sale

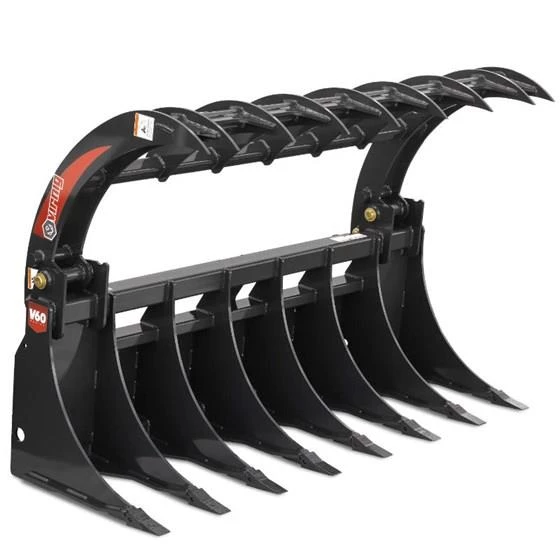

New Virnig V60 Root Rake Grapple for Sale

The toughest and largest Virnig root rake designed to dig, rake, pile and load brush.

Models

  • RRG72
  • RRG78
  • RRG84
Body
Tine Tip Type Cast Teeth
Number of Jaws 1
Dimensions
Weight RRG72: 1175 lbs.
RRG78: 1230 lbs.
RRG84: 1315 lbs.
Overall Width RRG72: 74.5”
RRG78: 80.5”
RRG84: 86.5”
Overall Height 38.3”
Bucket Height 29.7”
Tine Thickness 0.5” (*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth 31.6”
Space Between Teeth RRG72: 9.8”
RRG78: 10.8”
RRG84: 9.8”
Space Between Tines RRG72: 10.5” (grapple Jaws)
RRG78: 11.7” (grapple Jaws)
RRG84: 10.7” (grapple Jaws)
Cylinder Rod Size 1.5”
Operational
Number of Tools/Teeth RRG72: 7
RRG78: 7
RRG84: 8
Tine Spacing RRG72: 9.8”
RRG84: 9.8”
Recommended Loader Capacity Greater than 2400 lbs.
Cylinder Bore 2.5”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 53.7”
  • HARD STOPS TO PREVENT EXCESS CYLINDER STRESS
  • SERIES 23 PIN-ON TEETH CUT INTO SOIL, DIG OUT ROCKS & ROOTS
  • STANDARD WITH CYLINDER GUARDS

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V60 Root Rake Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V60 Root Rake Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V60 Root Rake Grapple for Sale

The toughest and largest Virnig root rake designed to dig, rake, pile and load brush.

Models

  • RRG72
  • RRG78
  • RRG84
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V60 Root Rake Grapple
Condition
NEW
Body
Tine Tip Type
Cast Teeth
Number of Jaws
1
Dimensions
Weight
RRG72: 1175 lbs. RRG78: 1230 lbs. RRG84: 1315 lbs.
Overall Width
RRG72: 74.5” RRG78: 80.5” RRG84: 86.5”
Overall Height
38.3”
Bucket Height
29.7”
Tine Thickness
0.5” (*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth
31.6”
Space Between Teeth
RRG72: 9.8” RRG78: 10.8” RRG84: 9.8”
Space Between Tines
RRG72: 10.5” (grapple Jaws) RRG78: 11.7” (grapple Jaws) RRG84: 10.7” (grapple Jaws)
Cylinder Rod Size
1.5”
Operational
Number of Tools/Teeth
RRG72: 7 RRG78: 7 RRG84: 8
Tine Spacing
RRG72: 9.8” RRG84: 9.8”
Recommended Loader Capacity
Greater than 2400 lbs.
Cylinder Bore
2.5”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.563”
Grapple Jaw Opening
53.7”
