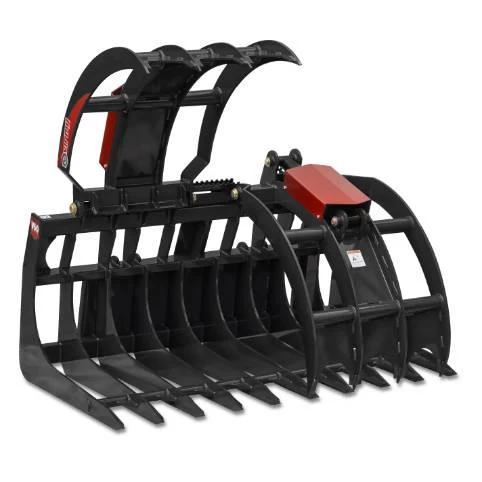

New Virnig V60 Large Capacity Skeleton Grapple for Sale The largest Virnig grapple for handling logs and brush and securing uneven loads. Models
|
| Specs | |
|---|---|
| Number of Tines | LCG72: 10 (w/sides) LCG84: 12 (w/sides) |
| Body | |
|---|---|
| Tine Tip Type | Smooth |
| Number of Jaws | 2 |
| Dimensions | |
|---|---|
| Weight | LCG72: 1585 lbs. LCG84: 1690 lbs. |
| Overall Width | LCG72: 73.0” LCG84: 85.0” |
| Overall Height | 42.5” |
| Bucket Height | 33” |
| Tine Thickness | 0.5” (Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).) |
| Overall Depth | 46” |
| Space Between Tines | LCG72: 7.5” LCG84: 7.1” |
| Cylinder Rod Size | 1.5” |
| Operational | |
|---|---|
| Tine Spacing | LCG72: 7.5” LCG84: 7.1” |
| Recommended Loader Capacity | Greater than 2400 lbs. |
| Cylinder Bore | 2.5” |
| Cylinder Pins Diameter | 1.25” |
| Cylinder Stroke | 8.375” |
| Hinge Pin Diameter | 1.563” |
| Grapple Jaw Opening | 62.8” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Virnig |
| MODEL | V60 Large Capacity Skeleton Grapple |
