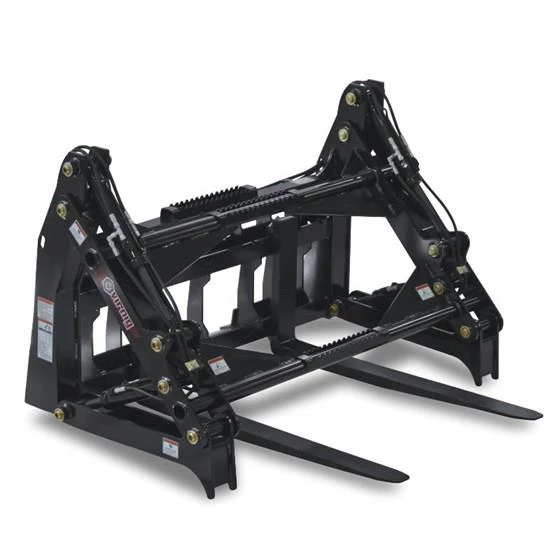

Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple

New Virnig Grapple for Sale

New Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple for Sale

Four-cylinder design applies consistent pressure to secure long pipe over uneven terrain.

Models

  • PPFG448
  • PPFG460
Dimensions
Weight PPFG448: 1060 lbs.
PPFG460: 1065 lbs.
Overall Width 69.0”
Overall Height 62.0” (open)
42.5” (closed)
Tine Length PPFG448: 48”
PPFG460: 60”
Tine Thickness PPFG448: 1.75”
PPFG460: 1.5”
Tine Width 4.0”
Overall Depth PPFG448: 58”
PPFG460: 70”
Grapple Arm Width 11.4”
Grapple Arm Depth 30.4”
Operational
Lift Capacity PPFG448: 6200 lbs.
PPFG460: 5500 lbs.
Tine Spacing 8.9”-49.0”
Recommended Loader Capacity Greater than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25’”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.25”
  • 48” OR 60″ ITA CLASS II FORGED TINES
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V60 Four-Cylinder Pipe Pallet Fork Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V60 Four-Cylinder Pipe Pallet Fork Grapple for Sale

Four-cylinder design applies consistent pressure to secure long pipe over uneven terrain.

Models

  • PPFG448
  • PPFG460
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V60 Four-Cylinder Pipe Pallet Fork Grapple
Condition
NEW
Dimensions
Weight
PPFG448: 1060 lbs. PPFG460: 1065 lbs.
Overall Width
69.0”
Overall Height
62.0” (open) 42.5” (closed)
Tine Length
PPFG448: 48” PPFG460: 60”
Tine Thickness
PPFG448: 1.75” PPFG460: 1.5”
Tine Width
4.0”
Overall Depth
PPFG448: 58” PPFG460: 70”
Grapple Arm Width
11.4”
Grapple Arm Depth
30.4”
Operational
Lift Capacity
PPFG448: 6200 lbs. PPFG460: 5500 lbs.
Tine Spacing
8.9”-49.0”
Recommended Loader Capacity
Greater than 1500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25’”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.25”
