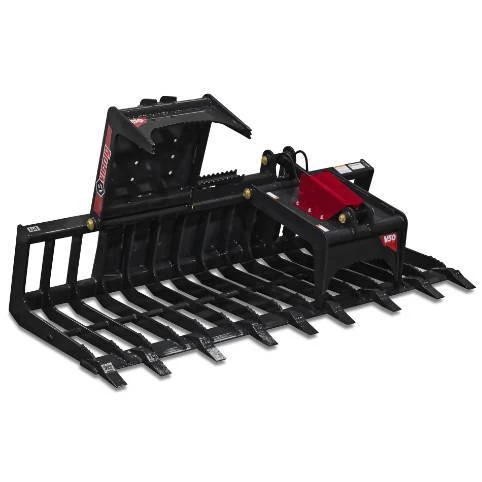

Virnig V50 Skeleton Tooth Grapple

New Open Skeleton Tooth Grapple for Sale

New Virnig V50 Skeleton Tooth Grapple for Sale

Same design as the V50 Skeleton Grapple but teeth added for aggressive digging and max wear life.

Models

  • TSGV72
  • TSGV78
  • TSGV84
  • TSGV90


Dimensions
Weight TSGV72: 1005 lbs.
TSGV78: 1055 lbs.
TSGV84: 1095 lbs.
TSGV90: 1145 lbs.
Overall Width TSGV72: 73.5”
TSGV78: 79.5”
TSGV84: 85.5”
TSGV90: 91.5”
Overall Height 27.5”
Bucket Height 21.3”
Tine Thickness 0.5” (Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth 43.3”
Space Between Teeth TSGV72: 6.8”-8.8”
TSGV78: 6.3”-8.8”
TSGV84: 6.8”-9.3”
TSGV90: 6.8”-8.8”
Space Between Tines 5.5”
Operational
Number of Tools/Teeth TSGV72: 8 (Teeth)
TSGV78: 9 (Teeth)
TSGV84: 9 (Teeth)
TSGV90: 10 (Teeth)
Recommended Loader Capacity Greater than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 40.9”
  • SERIES 23 PIN-ON TEETH CUT INTO SOIL, DIG OUT ROCKS & ROOTS
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • STANDARD WITH CYLINDER GUARDS
