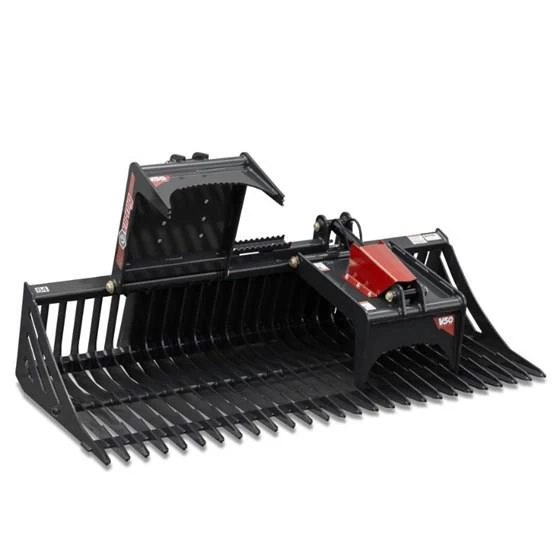

Virnig V50 Skeleton Rock Grapple

New Grapple for Sale

New Virnig V50 Skeleton Rock Grapple for Sale

The Original Skeleton Rock Bucket designed with a grapple to help secure rocks and uneven loads.

Models

  • SRGV60
  • SRGV66
  • SRGV72
  • SRGV78
  • SRGV84
Specs
Number of Tines SRGV60: 19 (w/sides)
SRGV66: 21 (w/sides)
SRGV72: 23 (w/sides)
SRGV78: 25 (w/sides)
SRGV84: 27 (w/sides)
Body
Tine Tip Type Smooth
Tine Tip Cross Member Yes
Side Plates Yes
Dimensions
Width SRGV60: 61.0”
SRGV66: 67.6”
SRGV72: 74.3”
SRGV78: 80.9”
SRGV84: 87.5”
Weight SRGV60: 940 lbs.
SRGV66: 990 lbs.
SRGV72: 1035 lbs.
SRGV78: 1080 lbs.
SRGV84: 1125 lbs.
Overall Width SRGV60: 61.0”
SRGV66: 67.6”
SRGV72: 74.3”
SRGV78: 80.9”
SRGV84: 87.5”
Overall Height 27.8”
Bucket Height 21.5”
Tine Thickness 0.375” (Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth 42.9”
Space Between Tines 2.9”
Operational
Jaw Opening 36.1”
Tine Spacing 2.9”
Recommended Loader Capacity Greater than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 36.1”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • ROCK DAM & NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS
  • STANDARD WITH CYLINDER GUARDS
  • OPEN SIDES (SRGV-O)
    • Same grapple design but without sides.
    • Hauling brush and logs, even those wider than the grapple, is easy with an open sided design.
