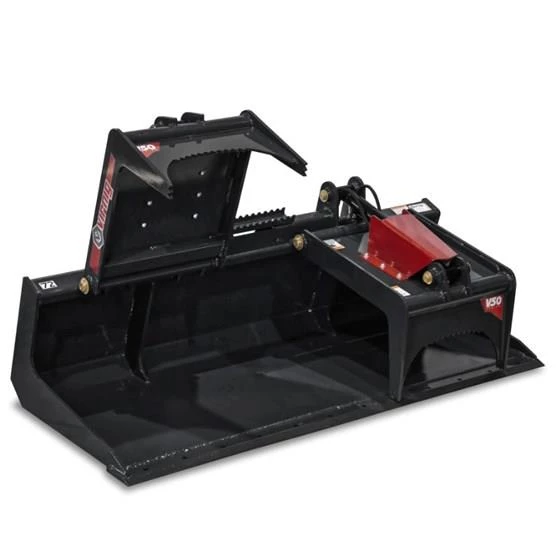

Virnig V50 Scrap Grapple

Front of new Virnig Grapple

New Virnig V50 Scrap Grapple for Sale

Solid bottom grapple for scooping and hauling loose and bulky debris.

Models

  • SBG60
  • SBG66
  • SBG72
  • SBG78
Body
Structural Wear Bars under Bucket SBG60: 2 (1/2” x 4”)
SBG66: 2 (1/2” x 4”)
SBG72: 2 (1/2” x 4”)
SBG78: 3 (1/2” x 4”)
Bucket and Jaw Steel Type Grade 50
Extra Bucket Reinforcement No
Number of Vertical Braces 2
Dimensions
Width SBG60: 61.5”
SBG66: 67.5”
SBG72: 73.5”
SBG78: 79.5”
Weight SBG60: 895 lbs.
SBG66: 930 lbs.
SBG72: 965 lbs.
SBG78: 1015 lbs.
Overall Width SBG60: 61.5”
SBG66: 67.5”
SBG72: 73.5”
SBG78: 79.5”
Overall Height 27.3”
Bucket Height 20.8”
Overall Depth 35.5”
Operational
Recommended Loader Capacity Less than 2400 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 36.9”
  • 1/2” VERTICAL BRACES INSIDE BUCKET
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • 3/4″ x 6″ WELD-ON EDGE
  • STANDARD WITH CYLINDER GUARDS
  • BOLT-ON EDGE INSTALLED
    • Extends bucket edge life.
    • Reversible 5/8” x 8” bolt-on wear edge with 5/8” plow bolt holes spaced 6” on center.
    • Available on all Virnig Buckets except skeleton style, unless noted.
  • SERRATED BOLT-ON EDGE INSTALLED
    • Excellent alternative to toothbar for chiseling and breaking up compacted soil.
    • 3/4″ x 8″ single bevel, serrated edge with 5/8″ plow bolt holes spaced 6″ on center.
    • Available on all Virnig Buckets except skeleton style, unless noted.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V50 Scrap Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V50 Scrap Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V50 Scrap Grapple for Sale

Solid bottom grapple for scooping and hauling loose and bulky debris.

Models

  • SBG60
  • SBG66
  • SBG72
  • SBG78
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V50 Scrap Grapple
Condition
NEW
Body
Structural Wear Bars under Bucket
SBG60: 2 (1/2” x 4”) SBG66: 2 (1/2” x 4”) SBG72: 2 (1/2” x 4”) SBG78: 3 (1/2” x 4”)
Bucket and Jaw Steel Type
Grade 50
Extra Bucket Reinforcement
No
Number of Vertical Braces
2
Dimensions
Width
SBG60: 61.5” SBG66: 67.5” SBG72: 73.5” SBG78: 79.5”
Weight
SBG60: 895 lbs. SBG66: 930 lbs. SBG72: 965 lbs. SBG78: 1015 lbs.
Overall Width
SBG60: 61.5” SBG66: 67.5” SBG72: 73.5” SBG78: 79.5”
Overall Height
27.3”
Bucket Height
20.8”
Overall Depth
35.5”
Operational
Recommended Loader Capacity
Less than 2400 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.563”
Grapple Jaw Opening
36.9”
