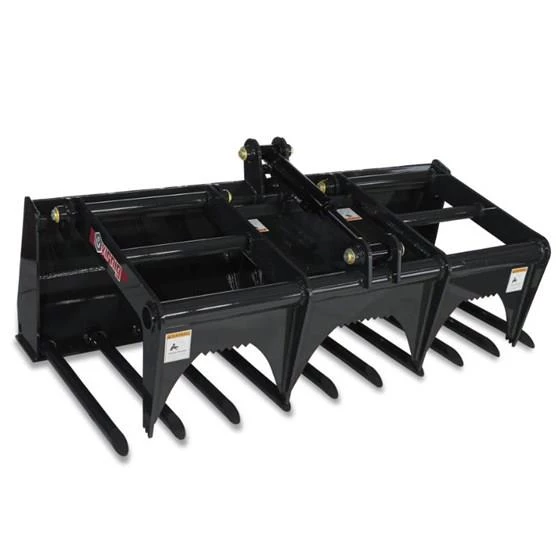

Virnig V40 Utility Fork Grapple

New Virnig Grapple for Sale

New Virnig V40 Utility Fork Grapple for Sale

Single jaw grapple designed to handle manure, brush and debris.

Models

  • MGV160
  • MGV166
  • MGV172
  • MGV178
Specs
Number of Tines MGV160: 9
MGV166: 10
MGV172: 11
MGV178: 12
Body
Number of Jaws 1
Dimensions
Width MGV160: 61.3”
MGV166: 67.3”
MGV172: 73.3”
MGV178: 79.3”
Weight MGV160: 835 lbs.
MGV166: 860 lbs.
MGV172: 950 lbs.
MGV178: 990 lbs.
Overall Width MGV160: 61.3”
MGV166: 67.3”
MGV172: 73.3”
MGV178: 79.3”
Overall Height 27”
Bucket Height 21.5”
Tine Thickness 1.75”
Overall Depth 33.5”
Space Between Tines MGV160: 5.4”
MGV166: 5.3”
MGV172: 5.2”
MGV178: 5.1”
Tine Diameter 1.75” (Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength))
Fixed or Replaceable Tines Replaceable
Operational
Tine Spacing MGV160: 5.4”
MGV166: 5.3”
MGV172: 5.2”
MGV178: 5.1”
Recommended Loader Capacity Less than 2400 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.25”
Grapple Jaw Opening 38.0”
  • NO CROSS MEMBER FOR BETTER PENETRATION
  • HIGH STRENGTH REPLACEABLE TINES
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V40 Utility Fork Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V40 Utility Fork Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V40 Utility Fork Grapple for Sale

Single jaw grapple designed to handle manure, brush and debris.

Models

  • MGV160
  • MGV166
  • MGV172
  • MGV178
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V40 Utility Fork Grapple
Condition
NEW
Specs
Number of Tines
MGV160: 9 MGV166: 10 MGV172: 11 MGV178: 12
Body
Number of Jaws
1
Dimensions
Width
MGV160: 61.3” MGV166: 67.3” MGV172: 73.3” MGV178: 79.3”
Weight
MGV160: 835 lbs. MGV166: 860 lbs. MGV172: 950 lbs. MGV178: 990 lbs.
Overall Width
MGV160: 61.3” MGV166: 67.3” MGV172: 73.3” MGV178: 79.3”
Overall Height
27”
Bucket Height
21.5”
Tine Thickness
1.75”
Overall Depth
33.5”
Space Between Tines
MGV160: 5.4” MGV166: 5.3” MGV172: 5.2” MGV178: 5.1”
Tine Diameter
1.75” (Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength))
Fixed or Replaceable Tines
Replaceable
Operational
Tine Spacing
MGV160: 5.4” MGV166: 5.3” MGV172: 5.2” MGV178: 5.1”
Recommended Loader Capacity
Less than 2400 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.25”
Grapple Jaw Opening
38.0”
