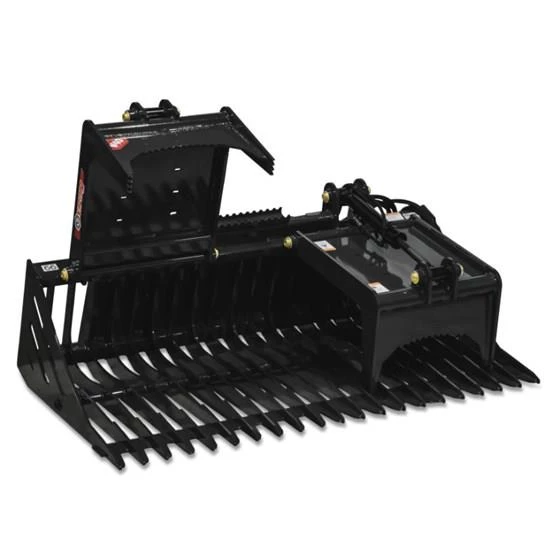

Virnig V40 Skeleton Rock Grapple

New Virnig Grapple for Sale

New Virnig V40 Skeleton Rock Grapple for Sale

Pick and haul rocks while leaving dirt behind, this grapple excels with smaller skid steers and track loaders.

Models

  • BSRGV66
  • BSRGV72
  • BSRGV84
Specs
Number of Tines BSRGV66: 21
BSRGV72: 23
BSRGV84: 27
Body
Tine Tip Type Smooth
Tine Tip Cross Member Yes
Side Plates Yes
Dimensions
Width BSRGV66: 67.6”
BSRGV72: 74.3”
BSRGV84: 87.5”
Weight BSRGV66: 925 lbs.
BSRGV72: 960 lbs.
BSRGV84: 1040 lbs.
Overall Width BSRGV66: 67.6”
BSRGV72: 74.3”
BSRGV84: 87.5”
Overall Height 26.5”
Bucket Height 20.0”
Tine Thickness 0.375” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength))
Overall Depth 39.9”
Space Between Tines 2.9”
Operational
Jaw Opening 35.2”
Tine Spacing 2.9”
Recommended Loader Capacity Less than 2400 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.25”
Grapple Jaw Opening 35.2”
  • EVERY OTHER TINE IS MADE FROM ONE PIECE OF STEEL
  • ROCK DAM & NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS
  • Cylinder Guards
    • Protect cylinders from damage
  • Open Sides (BSRGV-O)
    • Open Sided Option Available
    • Same grapple design but without sides
    • Hauling brush and logs, even those wider than the grapple, is easy with an open sided design
