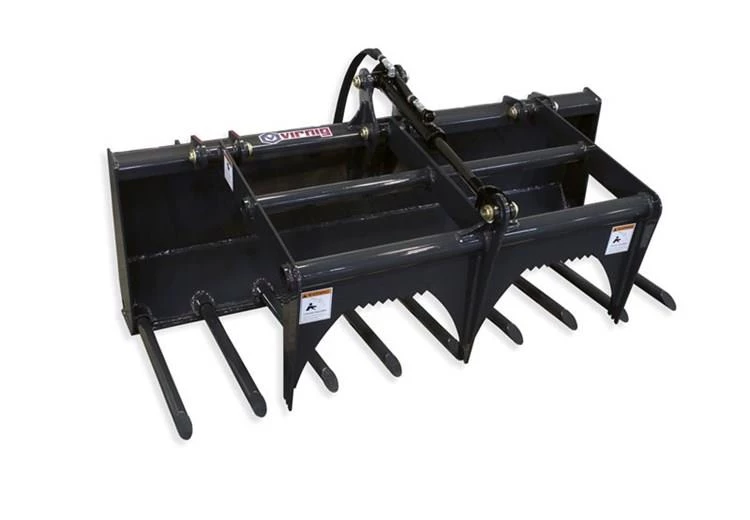

Virnig V30 Compact Tractor Utility Fork Grapple

New Grapple for Sale

New Virnig V30 Compact Tractor Utility Fork Grapple for Sale

Universal skid steer mount only.

Models

  • UGV48-CT
  • UGV54-CT
  • UGV60-CT
  • UGV66-CT
  • UGV72-CT
Specs
Number of Tines UGV48-CT: 7
UGV54-CT: 8
UGV60-CT: 9
UGV66-CT: 10
UGV72-CT: 11
Body
Number of Jaws 1
Dimensions
Weight UGV48-CT: 480 lbs.
UGV54-CT: 510 lbs.
UGV60-CT: 540 lbs.
UGV66-CT: 570 lbs.
UGV72-CT: 600 lbs.
Overall Width UGV48-CT: 49”
UGV54-CT: 54.5”
UGV60-CT: 60.5”
UGV66-CT: 66.5”
UGV72-CT: 72.5”
Overall Height 28.2”
Bucket Height 20.5”
Overall Depth 36.3”
Space Between Tines UGV48-CT: 6.0”
UGV54-CT: 5.9”
UGV60-CT: 5.7”
UGV66-CT: 5.6”
UGV72-CT: 5.4”
Tine Diameter 1.5” (Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength))
Operational
Recommended Loader Capacity Less than 1500 lbs.
Cylinder Bore 1.25”
Cylinder Pins Diameter 1.0”
Cylinder Stroke 8.0”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 37.5”
  • LOW PROFILE FOR EXCELLENT VISIBILITY
  • HIGH STRENGTH REPLACEABLE TINES
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V30 Compact Tractor Utility Fork Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V30 Compact Tractor Utility Fork Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V30 Compact Tractor Utility Fork Grapple for Sale

Universal skid steer mount only.

Models

  • UGV48-CT
  • UGV54-CT
  • UGV60-CT
  • UGV66-CT
  • UGV72-CT
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V30 Compact Tractor Utility Fork Grapple
Condition
NEW
Specs
Number of Tines
UGV48-CT: 7 UGV54-CT: 8 UGV60-CT: 9 UGV66-CT: 10 UGV72-CT: 11
Body
Number of Jaws
1
Dimensions
Weight
UGV48-CT: 480 lbs. UGV54-CT: 510 lbs. UGV60-CT: 540 lbs. UGV66-CT: 570 lbs. UGV72-CT: 600 lbs.
Overall Width
UGV48-CT: 49” UGV54-CT: 54.5” UGV60-CT: 60.5” UGV66-CT: 66.5” UGV72-CT: 72.5”
Overall Height
28.2”
Bucket Height
20.5”
Overall Depth
36.3”
Space Between Tines
UGV48-CT: 6.0” UGV54-CT: 5.9” UGV60-CT: 5.7” UGV66-CT: 5.6” UGV72-CT: 5.4”
Tine Diameter
1.5” (Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength))
Operational
Recommended Loader Capacity
Less than 1500 lbs.
Cylinder Bore
1.25”
Cylinder Pins Diameter
1.0”
Cylinder Stroke
8.0”
Hinge Pin Diameter
1.0”
Grapple Jaw Opening
37.5”
