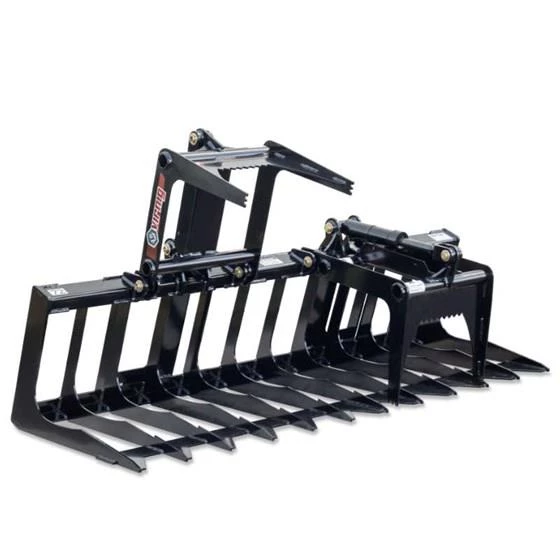

Virnig V30 Compact Tractor Skeleton Grapple

New Grapple for Sale

New Virnig V30 Compact Tractor Skeleton Grapple for Sale

Two-cylinder independent grapple with open-sided design for hauling brush and logs. Open bottom allows dirt to fall through.

Universal skid steer mount only.

Models

  • SGV48-CT
  • SGV54-CT
  • SGV60-CT
  • SGV66-CT
  • SGV72-CT
Specs
Number of Tines SGV48-CT: 8 (w/sides)
SGV54-CT: 9 (w/sides)
SGV60-CT: 10 (w/sides)
SGV66-CT: 11 (w/sides)
SGV72-CT: 12 (w/sides)
Body
Side Plate Thickness 0.375” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength))
Dimensions
Weight SGV48-CT: 290 lbs.
SGV54-CT: 305 lbs.
SGV60-CT: 320 lbs.
SGV66-CT: 335 lbs.
SGV72-CT: 350 lbs.
Overall Width SGV48-CT: 47.9”
SGV54-CT: 54.3”
SGV60-CT: 60.9”
SGV66-CT: 67.5”
SGV72-CT: 74.1”
Overall Height 22.9”
Bucket Height 19.0”
Tine Thickness 0.25” (Material is Grade 50 Plate (150,000 PSI Minimum Yield Strength))
Overall Depth 29.0”
Space Between Tines 6.4”
Inside Depth 23.5”
Operational
Recommended Loader Capacity Less than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.0”
Cylinder Stroke 6.0”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 28.7”
  • EVERY TINE IS MADE FROM ONE PIECE FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
  • OPTIONAL CYLINDER GUARDS AVAILABLE

CYLINDER GUARDS

  • Protect cylinders from damage.
