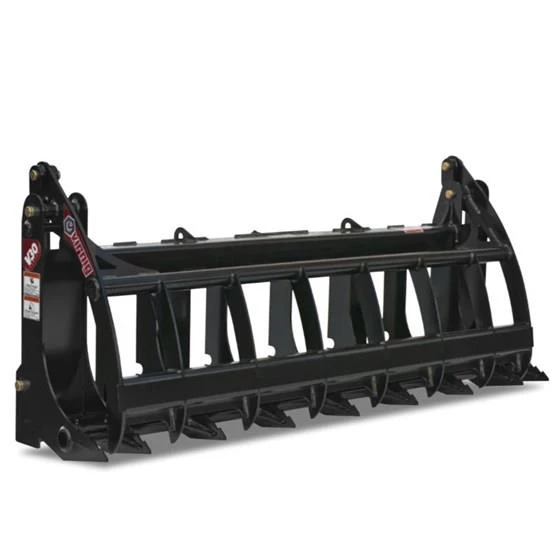

Virnig V30 Compact Tractor Root Rake Grapple

New Virnig Grapple for Sale

New Virnig V30 Compact Tractor Root Rake Grapple for Sale

Quickly dig, rake, pile and load brush. Designed light but tough for compact tractors.

Universal skid steer mount only.

Models

  • URG54-CT
  • URG60-CT
  • URG66-CT
Specs
Number of Tines URG54-CT: 7 (bottom)
URG60-CT: 8 (bottom)
URG66-CT: 9 (bottom)
Dimensions
Weight URG54-CT: 255 lbs.
URG60-CT: 300 lbs.
URG66-CT: 320 lbs.
Overall Width URG54-CT: 56.5”
URG60-CT: 61.5”
URG66-CT: 67.5”
Overall Height 27.9”
Bucket Height 24.9”
Tine Thickness 0.25” (Material is AR400 Plate (150,000 PSI Minimum Yield Strength))
Overall Depth 16.6”
Space Between Tines URG54-CT: 4.8” (bottom)/7.8” (Grapple Jaws)
URG60-CT: 4.8” (bottom)/7.3” (Grapple Jaws)
URG66-CT: 4.8” (bottom)/7.0” (Grapple Jaws)
Space Between Bottom URG54-CT: 10.5”
URG60-CT: 9.8”
URG66-CT: 9.1”
Space Between Grapple Jaws URG54-CT: 11.2”
URG60-CT: 9.8”
URG66-CT: 9.2”
Operational
Recommended Loader Capacity Less than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.0”
Cylinder Stroke 6.0”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 35.5”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • URG60 & URG66 TINES GUESSETED FOR EXTRA STRENGTH
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V30 Compact Tractor Root Rake Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V30 Compact Tractor Root Rake Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V30 Compact Tractor Root Rake Grapple for Sale

Quickly dig, rake, pile and load brush. Designed light but tough for compact tractors.

Universal skid steer mount only.

Models

  • URG54-CT
  • URG60-CT
  • URG66-CT
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V30 Compact Tractor Root Rake Grapple
Condition
NEW
Specs
Number of Tines
URG54-CT: 7 (bottom) URG60-CT: 8 (bottom) URG66-CT: 9 (bottom)
Dimensions
Weight
URG54-CT: 255 lbs. URG60-CT: 300 lbs. URG66-CT: 320 lbs.
Overall Width
URG54-CT: 56.5” URG60-CT: 61.5” URG66-CT: 67.5”
Overall Height
27.9”
Bucket Height
24.9”
Tine Thickness
0.25” (Material is AR400 Plate (150,000 PSI Minimum Yield Strength))
Overall Depth
16.6”
Space Between Tines
URG54-CT: 4.8” (bottom)/7.8” (Grapple Jaws) URG60-CT: 4.8” (bottom)/7.3” (Grapple Jaws) URG66-CT: 4.8” (bottom)/7.0” (Grapple Jaws)
Space Between Bottom
URG54-CT: 10.5” URG60-CT: 9.8” URG66-CT: 9.1”
Space Between Grapple Jaws
URG54-CT: 11.2” URG60-CT: 9.8” URG66-CT: 9.2”
Operational
Recommended Loader Capacity
Less than 1500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.0”
Cylinder Stroke
6.0”
Hinge Pin Diameter
1.0”
Grapple Jaw Opening
35.5”
