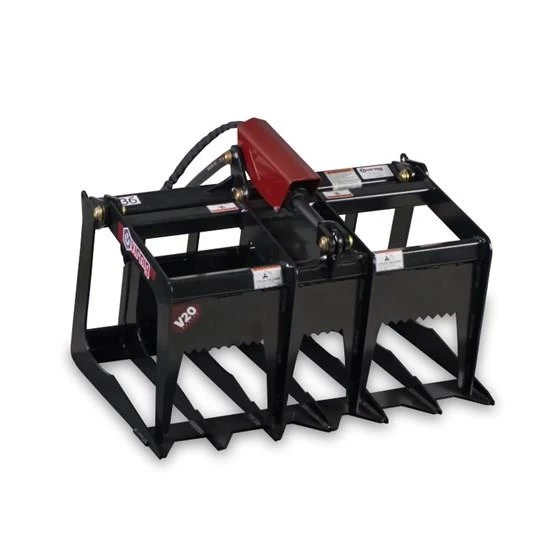

Virnig V20 Mini Skid Steer Skeleton Grapple

New Virnig Skid Steer for Sale

New Virnig V20 Mini Skid Steer Skeleton Grapple for Sale

Open-sided design for hauling brush and logs. Open bottom allows dirt to fall through. Available Widths 36″, 42″, 48″

Models

  • CSGV36
  • CSGV42
  • CSGV48
Specs
Number of Tines CSGV36: 7 (w/sides)
CSGV42: 8 (w/sides)
CSGV48: 9 (w/sides)
Body
Tine Tip Type Smooth
Tine Tip Cross Member Yes
Side Plates No
Dimensions
Weight CSGV36: 240 lbs. (ASV mount adds approximately 30 lbs. and Bobcat mount adds 15 lbs. to model weight)
CSGV42: 265 lbs. (ASV mount adds approximately 30 lbs. and Bobcat mount adds 15 lbs. to model weight)
CSGV48: 280 lbs. (ASV mount adds approximately 30 lbs. and Bobcat mount adds 15 lbs. to model weight)
Overall Width CSGV36: 36.0”
CSGV42: 42.0”
CSGV48: 48.0”
Overall Height 26.6”
Bucket Height 24.1”
Tine Thickness 0.25” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength)
Overall Depth 31.9”
Space Between Tines 5.9”
Operational
Tine Spacing 5.9”
Recommended Loader Capacity Greater than 500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.0”
Cylinder Stroke 6.0”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 30.3”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
  • STANDARD WITH CYLINDER GUARD

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V20 Mini Skid Steer Skeleton Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V20 Mini Skid Steer Skeleton Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V20 Mini Skid Steer Skeleton Grapple for Sale

Open-sided design for hauling brush and logs. Open bottom allows dirt to fall through. Available Widths 36″, 42″, 48″

Models

  • CSGV36
  • CSGV42
  • CSGV48
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V20 Mini Skid Steer Skeleton Grapple
Condition
NEW
Specs
Number of Tines
CSGV36: 7 (w/sides) CSGV42: 8 (w/sides) CSGV48: 9 (w/sides)
Body
Tine Tip Type
Smooth
Tine Tip Cross Member
Yes
Side Plates
No
Dimensions
Weight
CSGV36: 240 lbs. (ASV mount adds approximately 30 lbs. and Bobcat mount adds 15 lbs. to model weight) CSGV42: 265 lbs. (ASV mount adds approximately 30 lbs. and Bobcat mount adds 15 lbs. to model weight) CSGV48: 280 lbs. (ASV mount adds approximately 30 lbs. and Bobcat mount adds 15 lbs. to model weight)
Overall Width
CSGV36: 36.0” CSGV42: 42.0” CSGV48: 48.0”
Overall Height
26.6”
Bucket Height
24.1”
Tine Thickness
0.25” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength)
Overall Depth
31.9”
Space Between Tines
5.9”
Operational
Tine Spacing
5.9”
Recommended Loader Capacity
Greater than 500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.0”
Cylinder Stroke
6.0”
Hinge Pin Diameter
1.0”
Grapple Jaw Opening
30.3”
