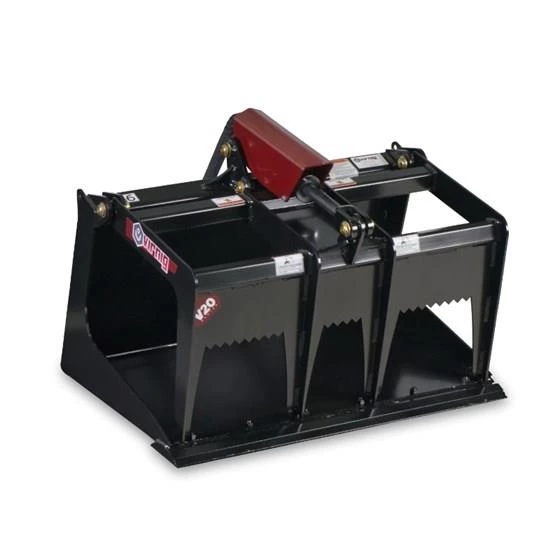

Virnig V20 Mini Skid Steer Scrap Grapple

New Virnig Grapple for Sale

New Virnig V20 Mini Skid Steer Scrap Grapple for Sale

Solid bottom grapple for scooping and hauling loose and bulky debris. Available Widths 36″, 42″, 48″

Models

  • CSG36
  • CSG42
  • CSG48
Dimensions
Weight CSG36: 325 lbs. (Bobcat mount adds approximately 10 lbs. to model weight)
CSG42: 355 lbs. (Bobcat mount adds approximately 10 lbs. to model weight)
CSG48: 380 lbs. (Bobcat mount adds approximately 10 lbs. to model weight)
Overall Width CSG36: 36.0”
CSG42: 42.0”
CSG48: 48.0”
Overall Height 27.0”
Bucket Height 24.5”
Overall Depth 30.8”
Operational
Recommended Loader Capacity Greater than 500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.0”
Cylinder Stroke 6.0”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 30.9”
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGE
  • 1/2″ x 4″ WELD-ON EDGE
  • STANDARD WITH CYLINDER GUARD

BOLT-ON EDGE INSTALLED

  • Extends bucket edge life.
  • Reversible 1/2” x 6” bolt-on wear edge with 1/2” plow bolt holes spaced 6” on center.
  • Available on all Virnig mini skid buckets except skeleton rock, unless noted.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V20 Mini Skid Steer Scrap Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V20 Mini Skid Steer Scrap Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V20 Mini Skid Steer Scrap Grapple for Sale

Solid bottom grapple for scooping and hauling loose and bulky debris. Available Widths 36″, 42″, 48″

Models

  • CSG36
  • CSG42
  • CSG48
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V20 Mini Skid Steer Scrap Grapple
Condition
NEW
Dimensions
Weight
CSG36: 325 lbs. (Bobcat mount adds approximately 10 lbs. to model weight) CSG42: 355 lbs. (Bobcat mount adds approximately 10 lbs. to model weight) CSG48: 380 lbs. (Bobcat mount adds approximately 10 lbs. to model weight)
Overall Width
CSG36: 36.0” CSG42: 42.0” CSG48: 48.0”
Overall Height
27.0”
Bucket Height
24.5”
Overall Depth
30.8”
Operational
Recommended Loader Capacity
Greater than 500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.0”
Cylinder Stroke
6.0”
Hinge Pin Diameter
1.0”
Grapple Jaw Opening
30.9”

Legal Notice: Manufacturer Name, Logo and Model Information are Registered Trademarks of the Manufacturer.
Specifications and other information are subject to change without notice. No representation of accuracy is made.
Image is believed to be in the public domain or used with permission.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
