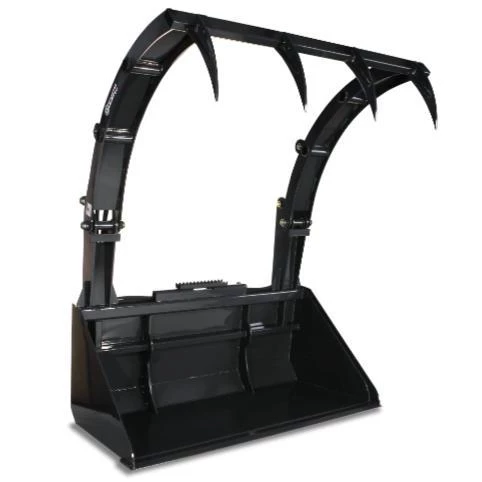

Virnig Hay Bucket Grapple

New Grapple for Sale

New Virnig Hay Bucket Grapple for Sale

Haul hay bales, silage and other light materials.



Models

  • HBG72
  • HBG84
Body
Bucket Type Solid
Number of Grapple Teeth 4
Struck Bucket Capacity HBG72: 27.7 cubic feet
HBG84: 32.2 cubic feet
Structural Wear Bars under Bucket 5
Dimensions
Weight HBG72: 1350 lbs.
HBG84: 1450 lbs.
Overall Width HBG72: 71.25” (inside); 73.5” (outside)
HBG84: 83.25” (inside); 85.5” (outside)
Overall Height 58.3”
Bucket Height 31.4”
Overall Depth 40.0”
Space Between Grapple Teeth 19.3”
Grapple Tine Thickness 0.5” (Tine Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength))
Operational
Recommended Loader Capacity Greater than 2400 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Heaped Bucket Capacity HBG72: 33.2 cubic feet
HBG84: 38.8 cubic feet
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 74.3”
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • 3/4″ x 6″ WELD-ON EDGE
  • BOLT-ON EDGE INSTALLED
    • Extends bucket edge life.
    • Reversible 5/8” x 8” bolt-on wear edge with 5/8” plow bolt holes spaced 6” on center.
    • Available on all Virnig Buckets except skeleton style, unless noted.
  • SERRATED BOLT-ON EDGE INSTALLED
    • Excellent alternative to toothbar for chiseling and breaking up compacted soil.
    • 3/4″ x 8″ single bevel, serrated edge with 5/8″ plow bolt holes spaced 6″ on center.
    • Available on all Virnig Buckets except skeleton style, unless noted.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL Hay Bucket Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig Hay Bucket Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig Hay Bucket Grapple for Sale

Haul hay bales, silage and other light materials.



Models

  • HBG72
  • HBG84
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
Hay Bucket Grapple
Condition
NEW
Body
Bucket Type
Solid
Number of Grapple Teeth
4
Struck Bucket Capacity
HBG72: 27.7 cubic feet HBG84: 32.2 cubic feet
Structural Wear Bars under Bucket
5
Dimensions
Weight
HBG72: 1350 lbs. HBG84: 1450 lbs.
Overall Width
HBG72: 71.25” (inside); 73.5” (outside) HBG84: 83.25” (inside); 85.5” (outside)
Overall Height
58.3”
Bucket Height
31.4”
Overall Depth
40.0”
Space Between Grapple Teeth
19.3”
Grapple Tine Thickness
0.5” (Tine Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength))
Operational
Recommended Loader Capacity
Greater than 2400 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Heaped Bucket Capacity
HBG72: 33.2 cubic feet HBG84: 38.8 cubic feet
Hinge Pin Diameter
1.563”
Grapple Jaw Opening
74.3”
