Takeuchi TL11R3

New Takeuchi Compact Track Loader

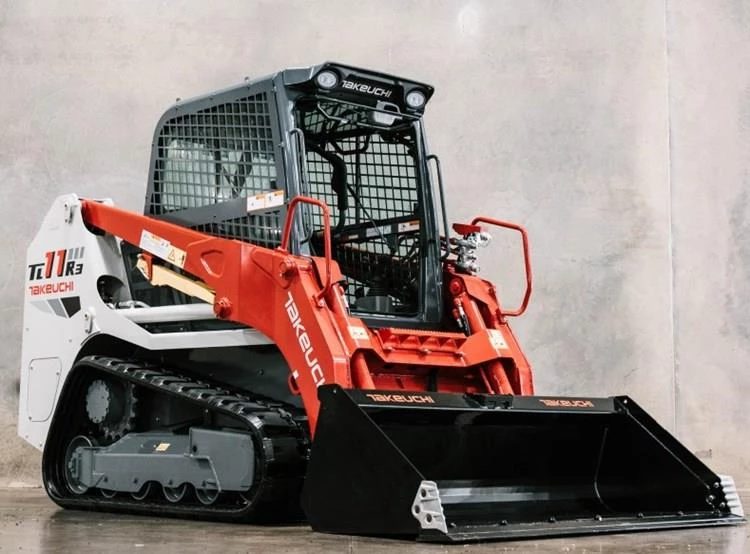

New Takeuchi TL11R3 Track Loader for Sale

The TL11R3 Compact Track Loader has an operating weight of 11,650 lbs and a 107.3-horsepower engine, making it a versatile and well-balanced machine that excels in a wide range of applications. Its radial lift boom design is engineered to deliver superior breakout forces, making the TL11R3 particularly well suited for grading and dirt work. The TL11R3’s operator station features an intuitive 8-inch touchscreen multi-information display that integrates Bluetooth radio and air conditioning controls within the screen.

It also includes a standard rearview camera, EH joystick controls, an adjustable suspension seat, and a large cup holder—all designed to keep operators informed, comfortable, and less fatigued. Electric-over hydraulic controls ensure smooth operation for both travel and loader functions while enabling a range of new features that optimize productivity. Additionally, a heavy-duty rear door and a tilt-up cab provide exceptional access to the TL11R3’s engine and routine inspection points.
Dimensions
Length 9’11.3”
Ground Clearance 12.4”
Overall Width 6’
Operating Weight 11,650 lbs. (canopy)
11,980 lbs. (cab)
Dump Height 7’11.3” (fully raised)
Dump Reach 2’11.2” (fully raised)
Dump Angle 40°
Transport Length 12’8.6”
Transport Height 7’7.7”
Lifting Height 10’6” Lift Height to Bucket Pin)
Engine
Engine Make Kubota
Engine Model V3800-TIE5B
Horsepower 107.3 HP
Cooling 16.9 qt
Displacement 230 Cu in.
Torque 271.4 ft.-lb.
Fuel Consumption 3.9 gal/h (65% of Full Load)
Fuel Tank Capacity 33.4 Gallons
Lubrication System 14 qt
DEF Tank Capacity 4.8 Gallons
Drivetrain
Track Width 17.7”
Travel Speed - Forward Low: 4.8 MPH
High: 7.5 MPH
Track Length 5’2.8” (Ground Contact)
Ground Pressure 4.71 PSI (canopy)
4.84 PSI (cab)
Hydraulic
Hydraulic Pressure 3,480.9 PSI (system)
Hydraulic System Capacity 22.2 Gallons
Auxiliary Flow Primary Circuit: 23.1 GPM
Secondary Circuit: 23.1 GPM
High Flow: 40.5 GPM
Hydraulic Reservoir Capacity 15.6 Gallons
Operational
Tipping Load 7,825 lbs.
Breakout Force 7,958 lbs. (bucket)
7,126 lbs. (lift arm)
Traction Force 13,196 lbs.
ROC 2,735 lbs.
Operating Load 3,913 lbs. at 50% of Tipping Load
Rollback Angle 30°
Clearance Circle 8’8” w/bucket
4’10.6” wo/bucket
5’10.2” rear
Operating Height 13’11.1”
Departure Angle 29°

ENGINE

  • EU Stage V / EPA Tier 4 Compliant
  • Turbocharged
  • DOC+DPF+SCR Exhaust After Treatment Automatic Fuel Bleed System
  • Double Element Air Cleaner
  • Active Power Control
  • High Capacity Fuel Tank
  • Engine Safety Start System on Right Console
  • Engine Auto Stop
  • Parking Brake
  • Idle Up in Cold Weather
  • High-Capacity Radiator, Hydraulic Oil Cooler
  • Mounted Side-by-Side on Swing Out Frame
  • Engine Preheat
  • Engine Block Heater (cab only)

OPERATOR STATION

  • ROPS/FOPS (Level I, TOP Guard Level II on high flow)
  • Tilt Up Operator’s Station
  • Deluxe High Back Adjustable
  • Suspension Seat
  • 12V Power Outlet
  • 2’’ Retractable Seat Belt
  • Radio with Bluetooth (cab only)
  • Heat & Air Conditioner (cab only)
  • Joystick Pattern Change (ISO or H)
  • Foot throttle (Accel./Decel.)
  • Pressurized Cab with Roll-up Door, Defrost and Front Wiper
  • Polycarbonate Door (high flow only)

ELECTRICAL

  • 8” Touchscreen Multi-Informational Display
  • Rubberized Weatherproof Push Buttons
  • 12-volt System with 80 amp Alternator
  • LED Light Package; 2 Forward
  • Backup Alarm & Horn
  • 14-Pin Connector
  • 14-Pin Detent
  • Rearview Camera
  • 270° Rearview Camera (standard on high flow, optional on standard flow)
  • Steering Drift Adjustment
  • Travel Joystick Sensitivity Adjustment
  • Passcode Keyless Push-Button Start

TAKEUCHI FLEET MANAGEMENT

  • 5-Year Standard Service
  • Minimize Downtime
  • Remote Diagnostics
  • Utilization Tracking
  • Proactive Maintenance
  • Control Costs
  • Geofencing

UNDERCARRIAGE AND FRAME

  • Double Flanged Front and Rear Idlers
  • 2-Speed Travel
  • High Torque Planetary Final Drive
  • 17.7” Rubber Crawlers
  • Creep Mode
  • Slip Detection
  • Speed-Sensitive Ride Control (standard on high flow, optional on standard flow)
  • Automatic Transmission
  • Permanently Sealed Track Rollers with Metal Face Seals
  • Fully Welded Frame with Integrated Cross Members
  • Grease Type Track Adjuster
  • Rear Bumper Integrated into Frame
  • Front and Rear Tie-Down & Lift Points

HYDRAULIC & WORKING EQUIPMENT

  • EH Joystick Controls
  • Radial Lift Arm Design
  • Self-Leveling Up (standard)
  • Loader Joystick Sensitivity Adjustment
  • Arm Float
  • Proportional Auxiliary Controls with Detent
  • Pressure Relieving Flat Face Coupler Body
  • Hydraulic Quick Coupler (cab standard)
  • Steel Hydraulic Tank with Fluid Sight Gauge
  • Air Breather & Filter in Hydraulic Tank
  • Secondary Auxiliary Circuit (standard with high flow only)

HYDRAULIC & WORKING EQUIPMENT

  • Arm Height Limit (optional)
  • Self-Leveling Down (optional)
  • Arm & Bucket Return to Position (optional)
  • High Flow Auxiliary Hydraulics (optional)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Takeuchi
MODEL TL11R3

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Takeuchi TL11R3

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Takeuchi TL11R3 Track Loader for Sale

The TL11R3 Compact Track Loader has an operating weight of 11,650 lbs and a 107.3-horsepower engine, making it a versatile and well-balanced machine that excels in a wide range of applications. Its radial lift boom design is engineered to deliver superior breakout forces, making the TL11R3 particularly well suited for grading and dirt work. The TL11R3’s operator station features an intuitive 8-inch touchscreen multi-information display that integrates Bluetooth radio and air conditioning controls within the screen.

It also includes a standard rearview camera, EH joystick controls, an adjustable suspension seat, and a large cup holder—all designed to keep operators informed, comfortable, and less fatigued. Electric-over hydraulic controls ensure smooth operation for both travel and loader functions while enabling a range of new features that optimize productivity. Additionally, a heavy-duty rear door and a tilt-up cab provide exceptional access to the TL11R3’s engine and routine inspection points.
GENERAL INFORMATION
Manufacturer
Takeuchi
Model Year
Model
TL11R3
Condition
NEW
Dimensions
Length
9’11.3”
Ground Clearance
12.4”
Overall Width
6’
Operating Weight
11,650 lbs. (canopy) 11,980 lbs. (cab)
Dump Height
7’11.3” (fully raised)
Dump Reach
2’11.2” (fully raised)
Dump Angle
40°
Transport Length
12’8.6”
Transport Height
7’7.7”
Lifting Height
10’6” Lift Height to Bucket Pin)
Engine
Engine Make
Kubota
Engine Model
V3800-TIE5B
Horsepower
107.3 HP
Cooling
16.9 qt
Displacement
230 Cu in.
Torque
271.4 ft.-lb.
Fuel Consumption
3.9 gal/h (65% of Full Load)
Fuel Tank Capacity
33.4 Gallons
Lubrication System
14 qt
DEF Tank Capacity
4.8 Gallons
Drivetrain
Track Width
17.7”
Travel Speed - Forward
Low: 4.8 MPH High: 7.5 MPH
Track Length
5’2.8” (Ground Contact)
Ground Pressure
4.71 PSI (canopy) 4.84 PSI (cab)
Hydraulic
Hydraulic Pressure
3,480.9 PSI (system)
Hydraulic System Capacity
22.2 Gallons
Auxiliary Flow
Primary Circuit: 23.1 GPM Secondary Circuit: 23.1 GPM High Flow: 40.5 GPM
Hydraulic Reservoir Capacity
15.6 Gallons
Operational
Tipping Load
7,825 lbs.
Breakout Force
7,958 lbs. (bucket) 7,126 lbs. (lift arm)
Traction Force
13,196 lbs.
ROC
2,735 lbs.
Operating Load
3,913 lbs. at 50% of Tipping Load
Rollback Angle
30°
Clearance Circle
8’8” w/bucket 4’10.6” wo/bucket 5’10.2” rear
Operating Height
13’11.1”
Departure Angle
29°
