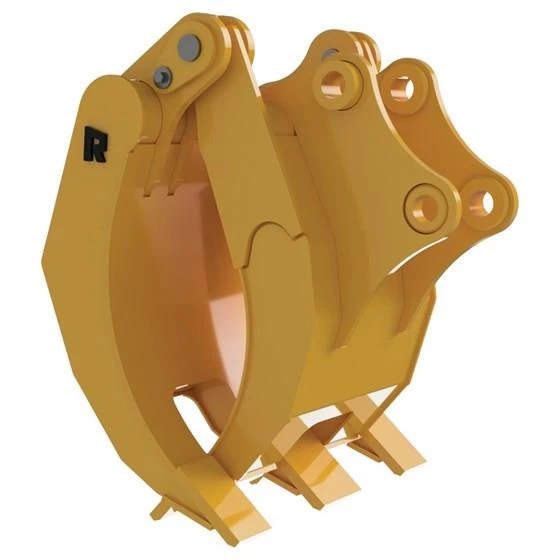

New Rockland H23 Severe Service Excavator Grapple for Sale Rockland Excavator Grapples really get the job done! Whether it be demolition work, loading rock, clearing land, or handling trash, there is a Rockland Excavator Grapple for your application. Rockland Excavator Grapples are designed to produce and built to last. They are built entirely out of high strength, alloy steel plate, and use the same Rockland reinforced box-frame design. Both models are equipped with replaceable wear plates at the front and rear of each tine. They both pivot on heat-treated, hardened pins and bushings. H23 Severe Service - The H23 was designed specifically for rough applications. Its narrow, two-tine clamp and three-tine frame maximize both clamping and digging forces. It is recommended for heavy-duty demolition work, rock handling, severe land clearing jobs, and other applications that require maximum clamping, prying, and breakout forces. All Rockland Excavator Grapples are built with the same dedication to quality that made our other products famous. We build great grapples and we back up that claim with a no nonsense, 2 year/4000 hour warranty. Increase your excavator’s productivity— specify a Rockland Excavator Grapple. Mounting Information: Rockland Excavator Grapples mount on the stick in place of the standard bucket using standard factory pins. An optional Rockland pin and bushing kit is available that allows the grapple to be installed on more than one machine in the same weight class. The grapple is supplied with a support strut and a strut mounting bracket that must be welded to the bottom of the excavator stick. For rough tough jobs, choose this grapple!
Machine Class
|
Specs | |
---|---|
Machine Class | A, B, C, D, E, F |
Dimensions | |
---|---|
Weight | A: 1,520 lbs. B: 2,740 lbs. C: 3,650 lbs. D: 5,300 lbs. E: 7,100 lbs. F: 7,100 lbs. |
Height-Closed | A: 49 11/16” B: 58 ¾” C: 71 7/8” D: 74 ¾” E: 83 3/8” F: 90” |
Excavator Weight | A: 25,001-33,000 lbs. B: 33,001-52,000 lbs. C: 52,001-70,000 lbs. D: 70,001-90,000 lbs. E: 90,001-110,000 lbs. F: 110,001-160,000 lbs. |
Operational | |
---|---|
Jaw Width | A: 32 ¼” (lower); 21 ¼” (upper) B: 45” (lower); 30 ½” (upper) C: 45” (lower); 30 ½” (upper) D: 49 ¼” (lower); 32 ¾” (upper) E: 53 ¼” (lower); 35” (upper) F: 60” (lower); 39” (upper) |
Max Opening | A: 90” B: 97” C: 115” D: 118” E: 145” F: 155” |
Min Opening | A: 7” B: 9” C: 10.5” D: 12.5” E: 15” F: 18” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
Main Technical Specifications | |
---|---|
MAKE | Rockland |
MODEL | H23 Severe Service Excavator Grapple |
