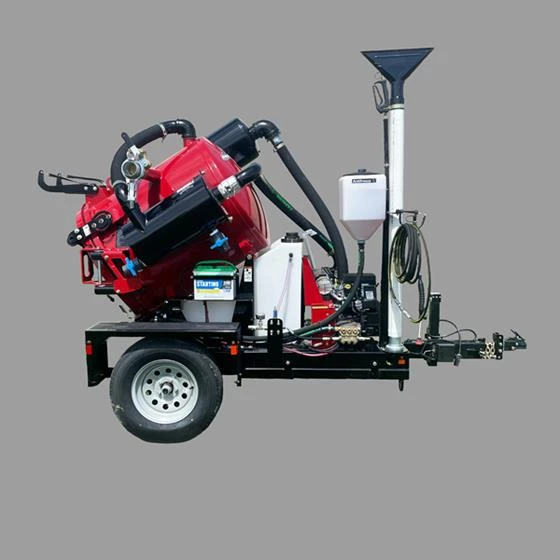

Ring-O-Matic FT150 VX

New Ring-O-Matic Vacuum Excavator

New Ring-O-Matic FT150 VX Vacuum Excavator for Sale

The FT-150 is a highly versatile machine available in three configurations: trailer-mounted, skid-mounted, or with a skid loader attachment. It has earned the nickname "King of the rental yard" due to its compact size and powerful performance. Homeowners, landscapers, and Golf Course superintendents alike appreciate this machine's lightweight footprint and impressive capabilities. Don't be fooled by its small size - the FT-150 boasts a 100-gallon fresh water capacity, 15"hg and 600CFM. Whether you have a big or small job, the FT-150 can deliver impressive results.
Blower/Fan
Vacuum Pump/Blower Type PD lobe pump
Water System
Water Tank Capacity 90 Gallons
Water Pump Auto Water Pump Unloader to Reduce Engine Loading & Wear-Standard
Water Pressure 3.5 GPM @ 3,000 PSI
Water Shut-Off Standard for Electronic Low Water
Water Pump Drive Belt with electric clutch
Water Supply Hose 25’ x 3/8” ID
Filtration
Air Filter Cyclo-Separator Replaceable Canister
Specs
Warranty 1 Year
Hour Meter/Tachometer/Vacuum Gauge Optional
Load Level Indicator and Auto Shutoff Auto shut-off only (option)
Winterize System Standard, Easy-to-use
Body
Door Manually operated full opening rear door
Tongue Weight 671 lbs. empty (optimum & Balanced)
Door Latch Manual single latch design (rear door)
Hitch Type Skid Steer/Truck/Trailer
Axles, Capacity and Suspension Type 4,000 lbs. Dexter Torflex
Dimensions
Length 134.03”; Skid: 99.78”
Width 71.07”; Skid: 62.56”
Height 87.10”; Skid: 71.46”
Weight 1984 lbs.; Skid: 1545 lbs.
Mount Skid Steer/Truck/Trailer
Tank 32 degree tilt (unload fixed tank)
Tire Size 225/75R15
Engine
Engine Make Kohler
Engine Type Air Cooled
Horsepower 25 HP
Fuel Tank Capacity 7 Gallons
Reverse Flow Optional
Max Vac Level in Hg 600 CFM/15”/Howden Roots
Operational
Brakes Never adjust electric (trailer)
Spoils Tank Capacity 150 Gallons
Inlet Valve Size 3”
Drain Valve Size 3”
Electrical
Lighting Dual LED work lights & strobe
  • Engine: The Ft 150 VX is powered by a 25-HP Kohler Gas engine, which provides ample amount of power to run the blower and water pump.
  • Fixed-Tank: The Ft 150 VX has a fixed Spoils tank design which eliminates the need for hydraulics on the machine. This makes removing spoils and washing out the tank simple and easy.
  • Blower: The Ft 150 VX has a 600 CFM Howden Roots Blower that offers 15” of max Hg. Optional Reverse Flow for easy offloading and assists in clearing hose obstructions.
  • Water Pump: With a water pump rated at 3.5 GPM / 3000 PSI the FT 150 VX will Dig and perform in all types of soil conditions.
  • Watertank: With a 90 gallon fresh water tank conveniently located under the spoils tank. You will always have enough water to finish the job.
  • Skid Steer Mount: The FT150 VX is equipped with an optional Skid Steer mount allowing easy access to back yard easement locates and other areas where a truck and trailer would not be able to go. THe skid mount also allows the FT150 to be placed in a standard size pickup bed. The versatility of the FT150 VX allows this machine to separate itself from its competitors.
  • Patented Cyclo-Jet Pothole Excavator-Stainless or Dielectric (recommended)
  • Lighted Arrow Bar to Direct Traffic
  • In Tank Clean Out System
