Ring-O-Matic 275 VX

New Ring-O-Matic

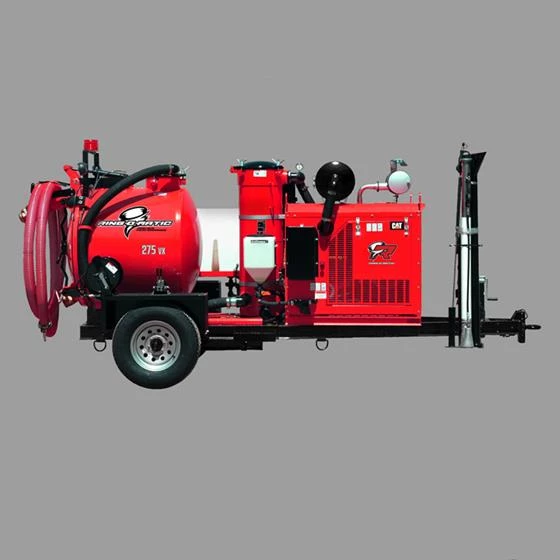

New Ring-O-Matic 275 VX Diesel Vacuum Excavator

Homeowners and small contractors appreciate the towing capability, compact size, and versatility of the 275VX. With this equipment, homeowners can complete home projects quickly and with minimal disturbance to their yard or landscaping. Contractors can also send a smaller crew including non-CDL drivers to make necessary repairs and uncover buried utilities, thereby streamlining project completion time.
Blower/Fan
Vacuum Pump/Blower Type Positive displacement lobe pump
Water System
Water Tank Capacity 100 Gallons
Water Pressure 4,000 PSI (factory set @ 3,500 PSI)
Water Supply 6 GPM
Water Shut-Off Standard (Electronic Low)
Water Pump Unloader Standard (Auto Water Pump Unloader to Reduce Engine Loading & Wear)
Water Pump Drive Belt w/Electric Clutch
Water Supply Hose 50’ x 3/8” ID
Water Supply Reel Location Rear Curbside
Filtration
Air Filter Cyclonic-Action through a .3 micron filter
Air Filter Capacity 106 ft²
Specs
Warranty One Year
Hour Meter/Tachometer/Vacuum Gauge Standard
Load Level Indicator and Auto Shutoff Sight Glass & Auto Shutoff
Winterize System Standard
Body
Door Hydraulically operated full opening rear door
Tongue Weight 1,000 lbs.
Door Latch Manual (rear door latch)
Trailer Type Single Axle (Dual Axle Option)
Hitch Type Pintle
Axles, Capacity and Suspension Type 7,000 lbs. Dexter Torflex
Dimensions
Length 185” (trailer)/140” (skid)
Width 86” (trailer)/79” (skid)
Height 86” (trailer)/67” (skid)
Weight 4,300 lbs. (trailer)/3,700 lbs. (skid)
Gross Vehicle Wt Rating (GVWR) 7,500 lbs.
Mount Trailer, Truck & Skid Mounting
Tire Size ST235/80 R 16 Load Range E
Engine
Engine Type Tier 4F Industrial Diesel
Fuel Tank Capacity 29 Gallons
Reverse Flow Standard
Max Vac Level in Hg 600 CFM/15” Max Hg
Hydraulic
Hydraulic Hoist Unload Single Cylinder
Operational
Brakes Never adjust electric
Control Positions Front curbside with lockable cabinet
Spoils Tank Capacity 250 Gallons
Inlet Valve Size 4”
Drain Valve Size 4”
Electrical
Lighting Dual LED work lights and strobe: Standard
  • Compact: The compact design of the 275vx and 350vx allows them to be used for multiple applications while delivering the same power of the Standard 550vx and 850VX machines.
  • ½ Ton Tow-Able: A 1/2 ton pick-up is more than enough to pull the 275vX. Choose between a single axle or dual Axles to best fit your towing power.
  • Reverse Flow: The 275vx and 350VX offers reverse flow standard, which allows you to pressurize the tank for easy offloading and assists in clearing hose obstructions.
  • Spider Door Lock: The Spider Door lock is the markets best manual door option and allows the machine to do the work while the operator only needs to actuate an easy pull lever
  • Viper Tool: The patented VIPER Pothole Tool delivers unmatched performance on the jobsite. This combination of the digging lance and suction tube makes work easy and clean.
  • Patented Viper Pothole Tool – Stainless or Dielectric (recommended)
  • Curbside Remote Auxiliary Hydraulics
  • Lighted Arrow Bar to Direct Traffic
  • Manual Boom
  • Removable Water Heater
  • In Tank Clean Out System

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Ring-O-Matic
MODEL 275 VX

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Ring-O-Matic 275 VX

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Ring-O-Matic 275 VX Diesel Vacuum Excavator

Homeowners and small contractors appreciate the towing capability, compact size, and versatility of the 275VX. With this equipment, homeowners can complete home projects quickly and with minimal disturbance to their yard or landscaping. Contractors can also send a smaller crew including non-CDL drivers to make necessary repairs and uncover buried utilities, thereby streamlining project completion time.
GENERAL INFORMATION
Manufacturer
Ring-O-Matic
Model Year
Model
275 VX
Condition
NEW
Blower/Fan
Vacuum Pump/Blower Type
Positive displacement lobe pump
Water System
Water Tank Capacity
100 Gallons
Water Pressure
4,000 PSI (factory set @ 3,500 PSI)
Water Supply
6 GPM
Water Shut-Off
Standard (Electronic Low)
Water Pump Unloader
Standard (Auto Water Pump Unloader to Reduce Engine Loading & Wear)
Water Pump Drive
Belt w/Electric Clutch
Water Supply Hose
50’ x 3/8” ID
Water Supply Reel Location
Rear Curbside
Filtration
Air Filter
Cyclonic-Action through a .3 micron filter
Air Filter Capacity
106 ft²
Specs
Warranty
One Year
Hour Meter/Tachometer/Vacuum Gauge
Standard
Load Level Indicator and Auto Shutoff
Sight Glass & Auto Shutoff
Winterize System
Standard
Body
Door
Hydraulically operated full opening rear door
Tongue Weight
1,000 lbs.
Door Latch
Manual (rear door latch)
Trailer Type
Single Axle (Dual Axle Option)
Hitch Type
Pintle
Axles, Capacity and Suspension Type
7,000 lbs. Dexter Torflex
Dimensions
Length
185” (trailer)/140” (skid)
Width
86” (trailer)/79” (skid)
Height
86” (trailer)/67” (skid)
Weight
4,300 lbs. (trailer)/3,700 lbs. (skid)
Gross Vehicle Wt Rating (GVWR)
7,500 lbs.
Mount
Trailer, Truck & Skid Mounting
Tire Size
ST235/80 R 16 Load Range E
Engine
Engine Type
Tier 4F Industrial Diesel
Fuel Tank Capacity
29 Gallons
Reverse Flow
Standard
Max Vac Level in Hg
600 CFM/15” Max Hg
Hydraulic
Hydraulic Hoist Unload
Single Cylinder
Operational
Brakes
Never adjust electric
Control Positions
Front curbside with lockable cabinet
Spoils Tank Capacity
250 Gallons
Inlet Valve Size
4”
Drain Valve Size
4”
Electrical
Lighting
Dual LED work lights and strobe: Standard
