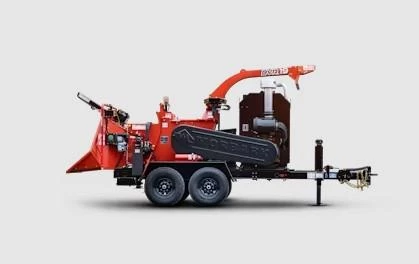

Morbark BVR19 Brush Chipper

New MorbarkNew MorbarkNew MorbarkNew MorbarkNew MorbarkNew MorbarkNew MorbarkNew Morbark

Morbark BVR19 Brush Chipper for Sale

With its large capacity and high-production volume reduction capabilities, this chipper is perfect for residential tree services, vegetation management lot and land clearing, maintenance contractors and municipalities. The BVR19 Brush Chipper boasts a huge list of options to customize the machine as well as more standard features than any other chipper in its class.

Remove the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs and elevate your operating experience with the exclusive Morbark ZeroClutch.™ Simply start, throttle the machine to full RPM's and engage the feed control bar. The Morbark ZeroClutch features an integrated drum speed sensor that monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum

FEATURES AND BENEFITS

  • Infeed-mounted control panel for increased jobsite efficiency.
  • Modular design makes maintenance and repairs fast and easy.
  • Morbark ZeroClutch™ monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.
  • Reverse pivot assembly gives mechanical advantage for increased down pressure.
  • Reversing auto feed system automatically stops forward feed and backs material away from drum for optimum engine performance.
  • Side load anvil for quick adjustment and flipping of the anvil.
  • Unit can be outfitted with a four-or-six cylinder diesel engine and choice of a single or tandem axle.
Body
Frame 6” C-Channel
Tires 235/75R x 17.5”
Dimensions
Length 21’8”
Width 7’8” (single/tandem)
Height 9’ (single/tandem)
Weight 9,000 lbs. (single)
10,500 lbs. (tandem)
Engine
Engine Make PSI, CAT, Deutz
Horsepower 174-275 HP
Hydraulic Capacity 18 Gallons
Fuel Capacity 40 Gallons
Operational
Suspension 12,000 lbs. Torflex (single axle)
7,000 lbs. Torflex (tandem axle)
Drum Width 32 5/8”
Drum Diameter 30”
Hitch 2.5” Pintle
Infeed Opening Height 39”
Infeed Opening Width 64”
Throat Opening Height 20”
Throat Opening Width 25 3/8”
  • Choice of gas or diesel engine and choice of single or
  • tandem axle.
  • Composite fuel and hydraulic tanks.
  • Croft style hitch with multiple height adjustments.
  • Dual horizontal feed wheels with hydraulic life assist.
  • Staggered knife pocket drum with six (6) dual-edged chipper knives.
  • 3 position electronic control bar with dual safety pull cables within infeed.
  • 360° discharge with multiple locking positions.
  • Reversing Auto Feed System: Reversing auto feed system automatically stops forward feed and backs material away from the drum for optimum engine performance.
  • ZeroClutch Technology: Morbark's patented ZeroClutch™ technology removes the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs. Simply start, throttle the machine to full RPM's and engage the feed control bar. The Morbark ZeroClutch features an integrated drum speed sensor that monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.
  • Modular Design: The updated modular design of the BVR brush chipper line makes maintenance and repairs fast and easy.
  • Infeed-Mounted Control Panel: The infeed-mounted control panel provides a more convenient location for operators, helping increase jobsite efficiency.
  • Side Load Anvil: The side load anvil helps streamline maintenance and provides quick adjustment and flipping of the anvil.
  • Reverse Pivot Assembly: Reverse pivot assembly gives mechanical advantage for increased down pressure.
  • Axle Options Available
  • Bottom Bump Bar
  • Cone Holder
  • Chocks/Chock Holder
  • Flow Control
  • Hydraulic Rear Stabilizers
  • Hydraulic Swivel Discharge
  • Manual Rear Stabilizers
  • Pusher Paddle
  • Rubber Infeed Curtain
  • Spare Tire and Mount
  • Strobe Light
  • Toolbox
  • Winch Package
  • 12" & 18" Hitch Extension

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL BVR19 Brush Chipper

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark BVR19 Brush Chipper

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

Morbark BVR19 Brush Chipper for Sale

With its large capacity and high-production volume reduction capabilities, this chipper is perfect for residential tree services, vegetation management lot and land clearing, maintenance contractors and municipalities. The BVR19 Brush Chipper boasts a huge list of options to customize the machine as well as more standard features than any other chipper in its class.

Remove the anxiety of engaging the chipper drum, damaged drive belts, and burned clutch discs and elevate your operating experience with the exclusive Morbark ZeroClutch.™ Simply start, throttle the machine to full RPM's and engage the feed control bar. The Morbark ZeroClutch features an integrated drum speed sensor that monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum

FEATURES AND BENEFITS

  • Infeed-mounted control panel for increased jobsite efficiency.
  • Modular design makes maintenance and repairs fast and easy.
  • Morbark ZeroClutch™ monitors the drum speed and will not allow the clutch to engage if material is lodged between the feed wheel and drum.
  • Reverse pivot assembly gives mechanical advantage for increased down pressure.
  • Reversing auto feed system automatically stops forward feed and backs material away from drum for optimum engine performance.
  • Side load anvil for quick adjustment and flipping of the anvil.
  • Unit can be outfitted with a four-or-six cylinder diesel engine and choice of a single or tandem axle.
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
BVR19 Brush Chipper
Condition
NEW
Body
Frame
6” C-Channel
Tires
235/75R x 17.5”
Dimensions
Length
21’8”
Width
7’8” (single/tandem)
Height
9’ (single/tandem)
Weight
9,000 lbs. (single) 10,500 lbs. (tandem)
Engine
Engine Make
PSI, CAT, Deutz
Horsepower
174-275 HP
Hydraulic Capacity
18 Gallons
Fuel Capacity
40 Gallons
Operational
Suspension
12,000 lbs. Torflex (single axle) 7,000 lbs. Torflex (tandem axle)
Drum Width
32 5/8”
Drum Diameter
30”
Hitch
2.5” Pintle
Infeed Opening Height
39”
Infeed Opening Width
64”
Throat Opening Height
20”
Throat Opening Width
25 3/8”
