Morbark 30/36 Whole Tree Drum Chipper

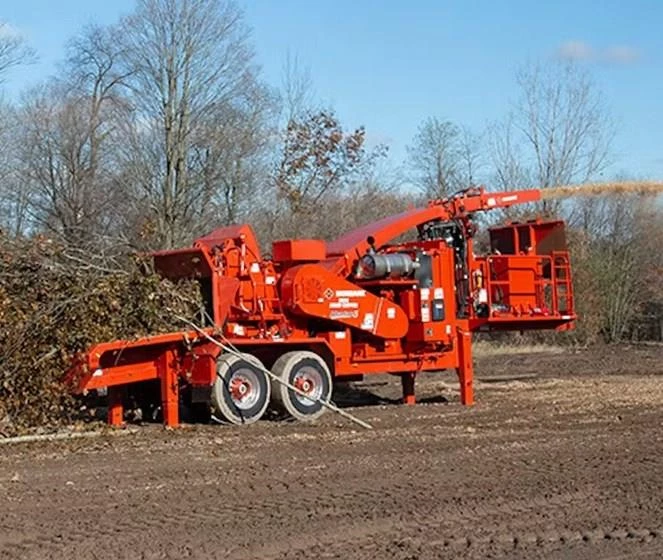

New Drum Chipper working

New Morbark 30/36 Whole Tree Drum Chipper for Sale

The Morbark 30/36 Whole Tree Drum Chipper’s high production rate lowers operating costs by increasing fuel efficiency. The aggressive live floor feeding system with two strands of durable WHD-120 chain and a large top and bottom feedwheels ensure positive feeding of material, including brushy tops and limbs. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • DRUM: The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • DISCHARGE: Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • SLOPED INFEED SYSTEM: Aggressive, sloped live floor and large top and bottom feedwheels ensure positive feed of brushy tops and limbs.
  • OPTIONAL FORESTRY GRATE: The operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • OPTIONAL CHIP ACCELERATOR: A mechanically driven chip accelerator fully loads vans with chips.



Track

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • The optional, operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • A mechanically driven chip accelerator (optional) fully loads vans with chips.

Whole

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • The optional, operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • Microchip package available with chip accelerator to provide more tonnage per van.


Axle
Axle Weight 29,300 lbs.
Body
Tires (4) 385/65R/22.5 20-ply Super Singles
Knives Babbitt-style
Chipper: (6) 11” x 7.31” x 0.75” thick
Counter: 11” x 6.375” x 0.5” thick
Tongue Weight 7,200 lbs.
Dimensions
Length 31’6”
Width 8’4” (577 HP)/8’5.25”(800 HP)
Height 11’9.75” (577 HP)/12’5.5” (800 HP)
Weight 38,000 lbs. (577 HP)/44,760 lbs. (800 HP)
Engine
Engine Make Cat
Horsepower 577 HP/800 HP
Hydraulic Capacity 85 gallons
Fuel Capacity 160 gallons (577 HP)/300 gallons (800 HP)
Drivetrain
Tracks Optional 320L Caterpillar for 577 HP only
Track Width 8’6”
Track Length 29’5.25”
Track Weight 51,500 lbs.
Track Height 11’6”
Operational
Brakes Air
Drum Width 34.5”
Drum Diameter 36”
Chipping Capacity 23”
Tandem Axle 36,000 lbs. leaf spring suspension
Towing Arrangement Pintle Hitch Tongue with Skidder Plates/Fifth Wheel
Infeed Opening 31” x 34”

Track

  • Sloped Infeed System consists of one 30" (76.2 cm) diameter top compression feed roll with internal drive, a 14" (35.56 cm) diameter bottom feed wheel, and a 31" (78.74 cm) wide x 9'6" (2.9 m) long live floor equipped with two strands of WDH-120 chain
  • Straight discharge chute and a hydraulically operated chip deflect with vertical and horizontal adjustment
  • Discharge clean-out door on bottom
  • Wireless remote control with a 60' (18.28 m) tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge chute and throttle
  • Hydraulic feed drive
  • Automatic reversing fan system
  • Light package
  • 11-HP (8.2 kW) air compressor with lockable enclosure



Whole

  • Sloped Infeed System consists of one 30" (76.2 cm) diameter top compression feed roll with internal drive, a 14" (35.56 cm) diameter bottom feed wheel, and a 31" (78.74 cm) wide x 11'6" (3.5 m) long live floor equipped with two strands of WDH-120 chain
  • Straight discharge chute and a hydraulically operated chip deflect with vertical and horizontal adjustment
  • Discharge clean-out door on bottom
  • Wireless remote control with a tethered remote back-up system for chipper operation. Functions include forward/reverse of feed works, up and down of top feed roll, operation of chip discharge chute and throttle
  • Hydraulic feed drive
  • Automatic reversing fan system
  • Rear hydraulic stabilizers
  • Light package
  • 11-HP (8.2 kW) air compressor with lockable enclosure
  • MicroChipper package includes 12-knife drum, chip accelerator and 3x3 grate system
  • ESPAR heating system for cold-weather start
  • Top-load discharge
  •

Track

  • Mechanically driven chip accelerator that fully loads vans with chips

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 30/36 Whole Tree Drum Chipper

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 30/36 Whole Tree Drum Chipper

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 30/36 Whole Tree Drum Chipper for Sale

The Morbark 30/36 Whole Tree Drum Chipper’s high production rate lowers operating costs by increasing fuel efficiency. The aggressive live floor feeding system with two strands of durable WHD-120 chain and a large top and bottom feedwheels ensure positive feeding of material, including brushy tops and limbs. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime.

  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • DRUM: The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • DISCHARGE: Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • SLOPED INFEED SYSTEM: Aggressive, sloped live floor and large top and bottom feedwheels ensure positive feed of brushy tops and limbs.
  • OPTIONAL FORESTRY GRATE: The operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • OPTIONAL CHIP ACCELERATOR: A mechanically driven chip accelerator fully loads vans with chips.



Track

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • The optional, operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • A mechanically driven chip accelerator (optional) fully loads vans with chips.

Whole

  • The Morbark Integrated Control Systems (MICS), the ultimate diagnostic system, monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
  • The Advantage 3™ drum creates more uniform chips and reduces operating and maintenance costs.
  • Directional flow discharge chute is hydraulically adjustable by remote control for maximum chip loads.
  • The optional, operator-friendly, slide-in forestry grate system reduces oversized chips for more consistent, higher-quality chips.
  • Microchip package available with chip accelerator to provide more tonnage per van.


GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
30/36 Whole Tree Drum Chipper
Condition
NEW
Axle
Axle Weight
29,300 lbs.
Body
Tires
(4) 385/65R/22.5 20-ply Super Singles
Knives
Babbitt-style Chipper: (6) 11” x 7.31” x 0.75” thick Counter: 11” x 6.375” x 0.5” thick
Tongue Weight
7,200 lbs.
Dimensions
Length
31’6”
Width
8’4” (577 HP)/8’5.25”(800 HP)
Height
11’9.75” (577 HP)/12’5.5” (800 HP)
Weight
38,000 lbs. (577 HP)/44,760 lbs. (800 HP)
Engine
Engine Make
Cat
Horsepower
577 HP/800 HP
Hydraulic Capacity
85 gallons
Fuel Capacity
160 gallons (577 HP)/300 gallons (800 HP)
Drivetrain
Tracks
Optional 320L Caterpillar for 577 HP only
Track Width
8’6”
Track Length
29’5.25”
Track Weight
51,500 lbs.
Track Height
11’6”
Operational
Brakes
Air
Drum Width
34.5”
Drum Diameter
36”
Chipping Capacity
23”
Tandem Axle
36,000 lbs. leaf spring suspension
Towing Arrangement
Pintle Hitch Tongue with Skidder Plates/Fifth Wheel
Infeed Opening
31” x 34”
