Morbark 1200XL Tub Grinder

New Morbark ready for Sale

New Morbark 1200XL Tub Grinder for Sale

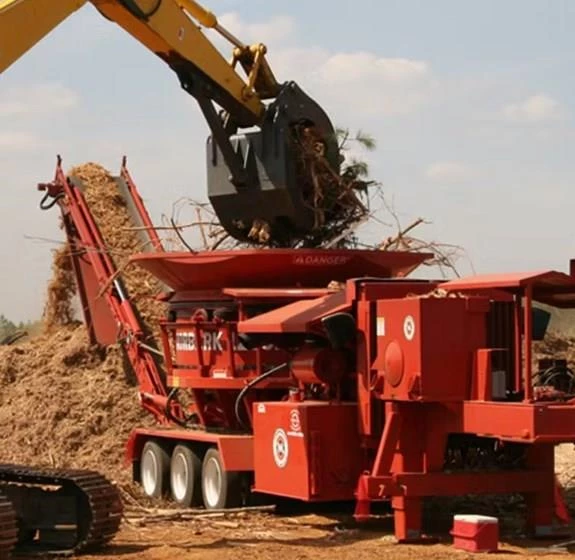

The Morbark 1200XL Tub Grinder is a mid-sized grinder that features the Morbark Integrated Control System for the ultimate in diagnostics; dual hydraulic tub drive motors for increased torque and greater efficiency; hydraulic augers for quick removal of product from beneath the mill; laser-cut, factory-balanced hammermills with forged hammers for unsurpassed durability and smooth operation; and tub tilt for easy access to grates and anvil for routine maintenance.

  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, tub rotation and engine efficiency while automatically adjusting to maximize performance.
  • HAMMERMILL: Laser-cut, factory balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Tub has 9' (2.74 cm) diameter at inside base and 62" (157.48 cm) deep walls; the floor is constructed of 0.5" (1.27 cm) thick wear-resistant steel.
  • The tub is supported by 16 roller guides carried on 35 mm diameter shafts.
Axle
Axle Weight 43,840 lbs. (NCL)
Optional: 50,000 lbs. (WCL)
Body
Tires (8) 255/70R/22.5
Tongue Weight 11,810 lbs. (NCL)
Optional: 25,000 lbs. (WCL)
Screen Area 2,480 sq in
Dimensions
Length 57’7”
Width 10’4”
Weight 55,000 lbs. (NCL)
Optional: 75,000 lbs. (WCL)
Transport Length 38’3.75”
Transport Height 12’10”
Engine
Engine Make Cat
Horsepower 800-875 HP
Hydraulic Capacity 174 Gallons
Fuel Capacity 300 Gallons
Operational
Brakes Air
Discharge Height 15’
Towing Arrangement Fifth wheel
  • Discharge system consisting of dual hydraulic 14" (35.56 cm) diameter augers and a 36" (91.44 cm) belt conveyor
  • 7" (68.58 cm) x 51.25" (130.17 cm) hammermill system constructed of a heavy-duty 16.5" (41.91 cm) diameter laser-cut rotor, (13) 1.75" (4.44 cm) thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 5.875" (14.92 cm) diameter rotor shaft with 3.94" (10 cm) bearings direct driven at engine RPM and eight 2" (5.08 cm) hammer retaining rods
  • Complete with (24) 2" (5.08 cm) balanced hard-surfaced hammers and (24) 3.06" (7.77 cm) forged double-edged replaceable inserts
  • 1" (2.54 cm) thick wear form steel heavy-duty screens
  • Magnetized end pulley for discharge conveyor, complete with collecting slide tray for ferrous metal removal
  • Remote control with tethered back-up system
  • Dust supression system
  • 11-HP (8.2 kW) air compressor
  • Model 350 knuckleboom loader with 36" (91.44 cm) Tarantula grapple, 360° turn motor and stationary operator’s cab
  • ESPAR heating system for cold-weather start

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Morbark
MODEL 1200XL Tub Grinder

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Morbark 1200XL Tub Grinder

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Morbark 1200XL Tub Grinder for Sale

The Morbark 1200XL Tub Grinder is a mid-sized grinder that features the Morbark Integrated Control System for the ultimate in diagnostics; dual hydraulic tub drive motors for increased torque and greater efficiency; hydraulic augers for quick removal of product from beneath the mill; laser-cut, factory-balanced hammermills with forged hammers for unsurpassed durability and smooth operation; and tub tilt for easy access to grates and anvil for routine maintenance.

  • HYDRAULIC AUGERS: Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • TORQUE LIMITER: The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • MORBARK INTEGRATED CONTROL SYSTEMS (MICS): The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, tub rotation and engine efficiency while automatically adjusting to maximize performance.
  • HAMMERMILL: Laser-cut, factory balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • Tub is equipped with hydraulic augers that allow the operator to quickly remove product from beneath the mill. During material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Tub has 9' (2.74 cm) diameter at inside base and 62" (157.48 cm) deep walls; the floor is constructed of 0.5" (1.27 cm) thick wear-resistant steel.
  • The tub is supported by 16 roller guides carried on 35 mm diameter shafts.
GENERAL INFORMATION
Manufacturer
Morbark
Model Year
Model
1200XL Tub Grinder
Condition
NEW
Axle
Axle Weight
43,840 lbs. (NCL) Optional: 50,000 lbs. (WCL)
Body
Tires
(8) 255/70R/22.5
Tongue Weight
11,810 lbs. (NCL) Optional: 25,000 lbs. (WCL)
Screen Area
2,480 sq in
Dimensions
Length
57’7”
Width
10’4”
Weight
55,000 lbs. (NCL) Optional: 75,000 lbs. (WCL)
Transport Length
38’3.75”
Transport Height
12’10”
Engine
Engine Make
Cat
Horsepower
800-875 HP
Hydraulic Capacity
174 Gallons
Fuel Capacity
300 Gallons
Operational
Brakes
Air
Discharge Height
15’
Towing Arrangement
Fifth wheel
