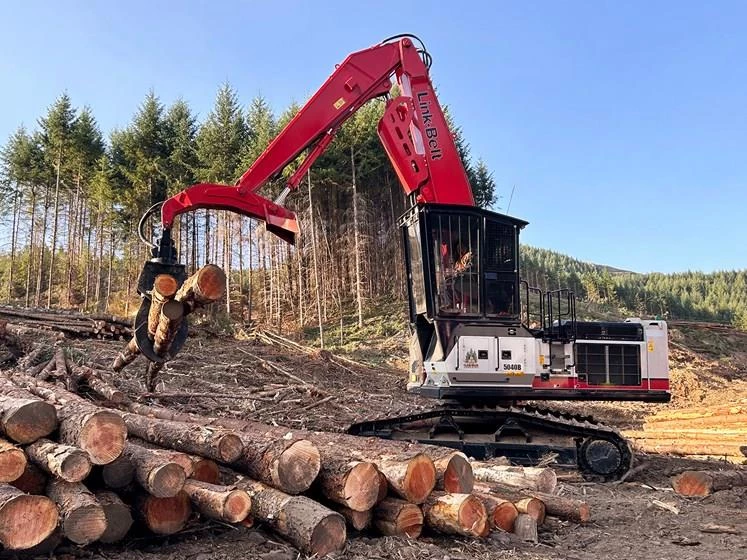

New Link-Belt 5040B TL Excavator for Sale The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety. |
| Dimensions | |
|---|---|
| Length | 54’4.0” |
| Width | 11’11.3” |
| Height | 15’10.6” 50’8.3” (Max High-Wide Undercarriage 228 Link Pitch) |
| Operating Weight | 108,000 lbs. |
| Fuel Tank Capacity | 216 Gallons |
| Depth | 15’4.6” |
| Maximum Reach Ground | 43’11.6” |
| Log Level Height | 34’5.4” |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-6HK1X |
| Horsepower | 268 HP |
| Displacement | 475 cu in |
| Torque | 729 lbf-ft. |
| Cooling System Capacity | 10.0 Gallons |
| DEF Tank Capacity | 40 Gallons |
| Travel Speed | 1.7-2.8 MPH |
| Drivetrain | |
|---|---|
| Starter | 24V-5.0kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 76,200 lbf |
| Alternator | 90 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 10.4 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 46 Gallons (Sump) |
| Hydraulic System | 2 variable displacement axial piston pumps with regulating system |
| Hydraulic Cylinders | NO. of Cylinders – Bore X Rod Diameter X Stroke Boom: 2 – 6.69” X 4.53” X 52.83” Arm: 1 – 7.48” X 5.12” X 64.69” Heel: 1 – 5.90” X 4.13” X 44.88” |
| Oil Capacity | 12.7 Gallons |
| Hydraulic System Capacity | 92 Gallons |
| Max Oil Flow | Main Pumps: 2 x 79.3 GPM Pilot Pump (1 Gear Pump): 7.5 GPM Aux. Pump (1 Gear Pump): 9.2 GPM |
| Working Circuit Pressure | Main Pumps: Working Circuit Pressure: Boom/Arm/Heel-4970 PSI; Swing Circuit-4410 PSI; Travel Circuit-4970 PSI Pilot Pump (1 Gear Pump): 570 PSI Aux. Pump (1 Gear Pump): 2990 PSI |
| Operational | |
|---|---|
| Maximum Reach | 44’7.8” |
| Swing Torque | 119,000 lbf-ft. |
| Swing Speed | 0-5.9 RPM |
| Track Link Pitch | 9.0” |
| Shoes | 50 per side |
| Shoe Width | 27.5” |
| Battery | |
|---|---|
| Voltage | 24V |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 5040B TL |
