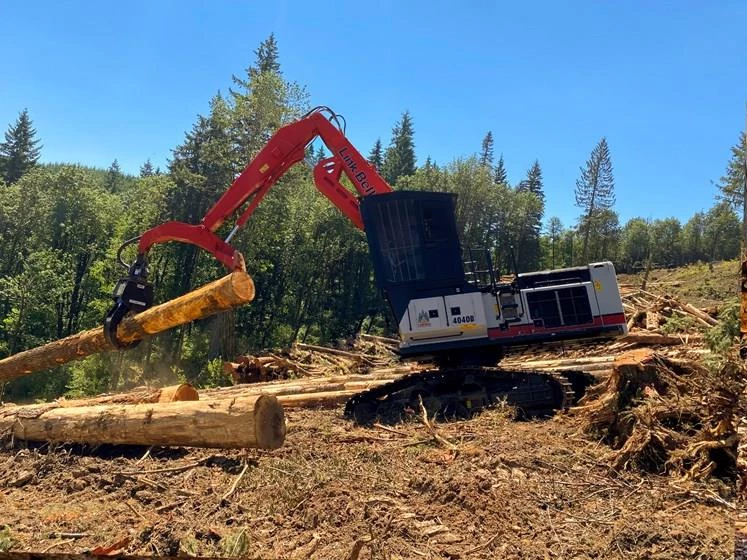

New Link-Belt 4040B TL Excavator for Sale The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety. |
| Dimensions | |
|---|---|
| Length | 49’7.6” |
| Width | 11’11.3” |
| Height | 10’7.3” |
| Operating Weight | 94,517 lbs. (Side entry cab) 95,780 lbs. (Rear entry cab) |
| Fuel Tank Capacity | 216 Gallons |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-6HK1X |
| Horsepower | 253 HP |
| Displacement | 475 cu in |
| Torque | 711 lbf-ft |
| DEF Tank Capacity | 31.7 Gallons |
| Travel Speed | 1.6-2.6 MPH |
| Drivetrain | |
|---|---|
| Gradeability | 70% (35°) |
| Drawbar Pull | 69,500 lbf |
| Track Rollers | 8 per side |
| Ground Pressure | 9.57 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | Main pumps – 2 variable displacement axial piston pumps w/regulating system Pilot Pump-1 gear pump Aux. pump-1 gear pump |
| Hydraulic Tank Capacity | 39 Gallons |
| Hydraulic Cylinders | Number – Bore x Rod Diameter x Stroke: Boom: 2-5.91” x 4.13” x 47.64” Arm: 1-6.69” x 4.53” x 68.11” Heel: 1-5.12” x 3.54” x 42.24” |
| Hydraulic System Capacity | 79 Gallons |
| Travel Circuit | 4970 PSI |
| Swing Circuit | 4410 PSI |
| Max Oil Flow | Main Pump: 2 x 67.6 gpm Pilot Pump: 7.5 gpm Aux Pump: 9.2 gpm |
| Working Circuit Pressure | Main Pump: Boom/Arm/Heel-4970 PSI Pilot Pump: 570 PSI Aux Pump: 2990 PSI |
| Operational | |
|---|---|
| Swing Torque | 82,656 lbf-ft |
| Swing Speed | 0-9.1 RPM |
| Track Link Pitch | 8.50” |
| Shoes | 48 per side |
| Shoe Width | 27.56” |
| Battery | |
|---|---|
| Voltage | 24 V |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 4040B TL |
