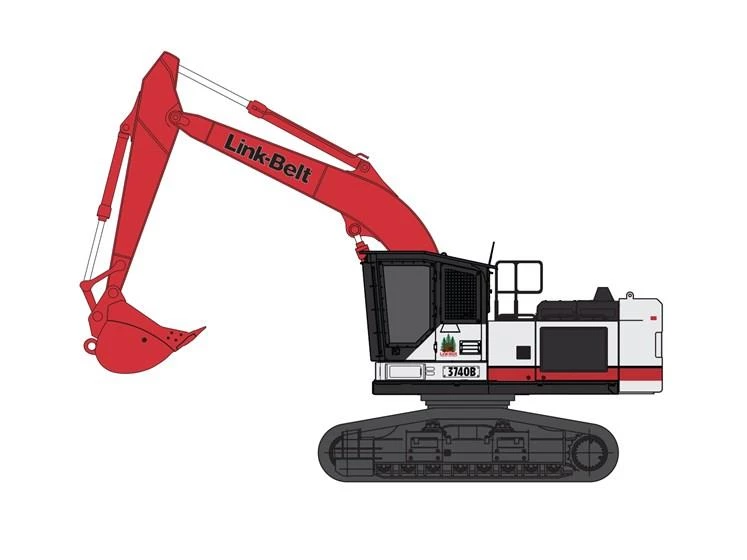

Link-Belt 3740B RB

New Link-Belt ready for Sale

New Link-Belt 3740B RB Excavator for Sale

The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety.
Dimensions
Length 32’7.3”
Width 11’9.3”
Height 12’6.8”
Operating Weight 78,100 lbs.
Fuel Tank Capacity 216 Gallons
Maximum Reach Ground 33’0” (High-Narrow Undercarriage Standard Lift Position)
33’0.1” (High-Wide Undercarriage)
33’0.9” (High-Narrow Undercarriage High-Lift Position)
Vertical Wall Depth 14’11.6” (High-Narrow Undercarriage Standard Lift Position)
14’10.7” (High-Wide Undercarriage Standard Lift Position)
13’4.6” (High-Narrow Undercarriage High-Lift Position)
13’3.8” (High-Wide Undercarriage High-Lift Position)
Engine
Engine Make Isuzu
Engine Model AQ-4HK1X
Engine Type Final Tier 4 Turbocharged diesel engine
Horsepower 177 HP
Displacement 317 cu in
Torque 458 lbf-ft.
Cooling System Capacity 8.8 Gallons
DEF Tank Capacity 31.7 Gallons
Travel Speed 1.6-2.7 MPH
Drivetrain
Starter 24V-5.0kW
Gradeability 70% (35°)
Drawbar Pull 58,300 lbf
Alternator 85 amp
Track Rollers 8 per side
Ground Pressure 8.4 PSI
Carrier Rollers 2 per side
Hydraulic
Hydraulic Tank Capacity 39 Gallons (Sump)
Hydraulic System 2 variable displacement axial piston pumps with regulating system
Hydraulic Cylinders NO. of Cylinders – Bore X Rod Diameter X Stroke
Boom: 2 – 5.12” X 3.54” X 52.56”
Arm: 1 – 5.71” X 4.13” X 65.35”
Bucket: 1 – 5.12” X 3.54” X 42.13”
Oil Capacity 6.1 Gallons
Hydraulic System Capacity 77 Gallons
Max Oil Flow Main Pumps: 2 X 61.8 GPM
Pilot Pump (1 Gear Pump): 5.3 GPM
Aux. Pump (1 Gear Pump): 9.7 GPM
Working Circuit Pressure Main Pumps: Working Circuit Pressure: Boom/Arm/Bucket-4970 PSI; Swing Circuit-4410 PSI; Travel Circuit-4970 PSI
Pilot Pump (1 Gear Pump): 570 PSI
Aux. Pump (1 Gear Pump): 2990 PSI
Operational
Dig Depth 21’9.8” (High-Narrow Undercarriage Standard Lift Position)
21’9” (High-Wide Undercarriage Standard Lift Position)
17’3.1” (High-Narrow Undercarriage High-Lift Position)
17’2.3” (High-Wide Undercarriage High-Lift Position)
21’3.5” (High-Narrow Undercarriage Standard Lift Position – Level Bottom)
21’2.7” (High-Wide Undercarriage Standard Lift Position – Level Bottom)
16’8.4” (High-Narrow Undercarriage High-Lift Position – Level Bottom)
16’7.6” (High-Wide Undercarriage High-Lift Position – Level Bottom)
Dig Height 44’2.7” (High-Narrow Undercarriage)
44’1.9” (High-Wide Undercarriage)
Dump Height 23’0.8” (Standard Lift Position)
27’10.6” (High-Narrow Undercarriage Standard Lift Position)
27’9.9” (High-Wide Undercarriage High-Lift Position)
Maximum Reach 33’7.5” (High-Narrow Undercarriage)
33’6.8” (High-Wide Undercarriage)
Swing Torque 77,000 lbf-ft.
Swing Speed 0-8.8 RPM
Track Link Pitch 8.5”
Shoes 47 per side
Shoe Width 27.5”
Battery
Voltage 24V

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Link-Belt
MODEL 3740B RB

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Link-Belt 3740B RB

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Link-Belt 3740B RB Excavator for Sale

The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety.
GENERAL INFORMATION
Manufacturer
Link-Belt
Model Year
Model
3740B RB
Condition
NEW
Dimensions
Length
32’7.3”
Width
11’9.3”
Height
12’6.8”
Operating Weight
78,100 lbs.
Fuel Tank Capacity
216 Gallons
Maximum Reach Ground
33’0” (High-Narrow Undercarriage Standard Lift Position) 33’0.1” (High-Wide Undercarriage) 33’0.9” (High-Narrow Undercarriage High-Lift Position)
Vertical Wall Depth
14’11.6” (High-Narrow Undercarriage Standard Lift Position) 14’10.7” (High-Wide Undercarriage Standard Lift Position) 13’4.6” (High-Narrow Undercarriage High-Lift Position) 13’3.8” (High-Wide Undercarriage High-Lift Position)
Engine
Engine Make
Isuzu
Engine Model
AQ-4HK1X
Engine Type
Final Tier 4 Turbocharged diesel engine
Horsepower
177 HP
Displacement
317 cu in
Torque
458 lbf-ft.
Cooling System Capacity
8.8 Gallons
DEF Tank Capacity
31.7 Gallons
Travel Speed
1.6-2.7 MPH
Drivetrain
Starter
24V-5.0kW
Gradeability
70% (35°)
Drawbar Pull
58,300 lbf
Alternator
85 amp
Track Rollers
8 per side
Ground Pressure
8.4 PSI
Carrier Rollers
2 per side
Hydraulic
Hydraulic Tank Capacity
39 Gallons (Sump)
Hydraulic System
2 variable displacement axial piston pumps with regulating system
Hydraulic Cylinders
NO. of Cylinders – Bore X Rod Diameter X Stroke Boom: 2 – 5.12” X 3.54” X 52.56” Arm: 1 – 5.71” X 4.13” X 65.35” Bucket: 1 – 5.12” X 3.54” X 42.13”
Oil Capacity
6.1 Gallons
Hydraulic System Capacity
77 Gallons
Max Oil Flow
Main Pumps: 2 X 61.8 GPM Pilot Pump (1 Gear Pump): 5.3 GPM Aux. Pump (1 Gear Pump): 9.7 GPM
Working Circuit Pressure
Main Pumps: Working Circuit Pressure: Boom/Arm/Bucket-4970 PSI; Swing Circuit-4410 PSI; Travel Circuit-4970 PSI Pilot Pump (1 Gear Pump): 570 PSI Aux. Pump (1 Gear Pump): 2990 PSI
Operational
Dig Depth
21’9.8” (High-Narrow Undercarriage Standard Lift Position) 21’9” (High-Wide Undercarriage Standard Lift Position) 17’3.1” (High-Narrow Undercarriage High-Lift Position) 17’2.3” (High-Wide Undercarriage High-Lift Position) 21’3.5” (High-Narrow Undercarriage Standard Lift Position – Level Bottom) 21’2.7” (High-Wide Undercarriage Standard Lift Position – Level Bottom) 16’8.4” (High-Narrow Undercarriage High-Lift Position – Level Bottom) 16’7.6” (High-Wide Undercarriage High-Lift Position – Level Bottom)
Dig Height
44’2.7” (High-Narrow Undercarriage) 44’1.9” (High-Wide Undercarriage)
Dump Height
23’0.8” (Standard Lift Position) 27’10.6” (High-Narrow Undercarriage Standard Lift Position) 27’9.9” (High-Wide Undercarriage High-Lift Position)
Maximum Reach
33’7.5” (High-Narrow Undercarriage) 33’6.8” (High-Wide Undercarriage)
Swing Torque
77,000 lbf-ft.
Swing Speed
0-8.8 RPM
Track Link Pitch
8.5”
Shoes
47 per side
Shoe Width
27.5”
Battery
Voltage
24V
