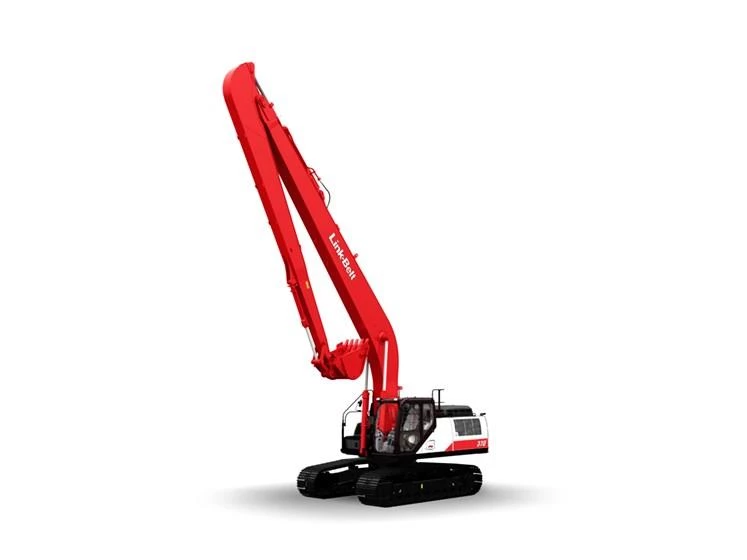

Link-Belt 370 X4S Long Front

New Long Front Excavator

New Link-Belt 370 X4S Long Front Excavator for Sale

Link-Belt X4 Series Long Reach excavators are versatile and tough enough to take on a variety of dredging, cleaning, and sloping applications.
Dimensions
Length 50’11”
Width 10’0”
Height 10’7”
Operating Weight 88,400 lbs.
Fuel Tank Capacity 153 Gallons
Vertical Wall Depth 41’7”
Engine
Engine Make Isuzu
Engine Model AQ-6HK1X
Engine Type Final Tier 4 Turbocharged diesel
Horsepower 268 HP
Displacement 475 cu in
Torque 729 lbf-ft
Travel Speed 2.1-3.5 mph
Drivetrain
Starter 24 V – 5.0 kW
Gradeability 70% (35°)
Drawbar Pull 60,800 lbf.
Alternator 90 amp
Track Rollers 8 per side
Ground Pressure 8.1 PSI
Carrier Rollers 2 per side
Hydraulic
Pump Output 2 x 79.5 gpm
Hydraulic Tank Capacity 49 Gallons
Hydraulic Cylinders Number of Cylinders – Bore x Stroke
Boom: 2 - 5.7” x 58.9”
Arm: 5.9” x 68.4”
Bucket: 4.7” x 47.6”
Relief Valve Setting Boom Up/Arm Out: 4,970 PSI
In Power Boost: 5,410 PSI
Hydraulic System Capacity 94 Gallons
Travel Circuit 4970 PSI
Swing Circuit 4050 PSI
Pilot Pump Maximum Flow 7.5 gpm
Operational
Dig Depth 46’3”
Dig Height 48’6”
Bucket Digging Force 25’: 14,900 lbf
Bucket Digging Force: 24,500 lbf.
Dump Height 39’8”
Max. Reach 61’3”; at ground level-60’10”
Swing Torque 103,000 lbf-ft
Swing Speed 5.5 RPM
Track Link Pitch 8.5”
Shoes 48 per side
Shoe Width 31.5”
Tail Swing 11’9”
Bucket Rotation 177°
Boom
Boom 35’5”
Battery
Voltage 24 V

CAB

  • 270° WAVES 3-Camera System
  • 12V Power Outlet
  • AM/FM Sound System
  • Anti-Theft Device
  • Auxiliary Switches on Control Lever
  • Bluetooth
  • Cab Air Filter - External
  • Cab Handrails
  • Cab Interior Light
  • Cab ISO-Mounts
  • LED Cab Lights
  • Clear Roof Window
  • Climate Control A/C and Heater
  • Cup Holder (2)
  • Defroster
  • Digital Clock
  • Emergency Exit and Hammer
  • Face Vent
  • Floor Mat (Split)
  • Front Window OneTouch Lock
  • Gate Lock Hydraulic Activation
  • Horn
  • Hour Meter (Digital)
  • LCD 10” Color Monitor
  • Maintenance Interval Reminders
  • MP3 Auxiliary Input
  • On-Board Diagnostic
  • Radio Mute Switch
  • Rear View Camera
  • Rear View Mirrors (2)
  • RemoteCARE Support System (GPS)
  • Roof Sun Shade
  • ROPS/FOPS Level 1 Certified Structure
  • Safety Glass Windows
  • SCM Air-Suspension Seat with Tilt & Heater
  • Seat Recline
  • Selectable Monitor Languages
  • Side View Cameras (2)
  • Small Storage
  • Smart Phone Tray
  • Travel Alarm with Cancel Switch
  • Trip Meter (Digital)
  • Wiper & Washer
  • Wiper Switch on RH Joystick

ENGINE

  • 85A Alternator
  • Air Filter (Double Element)
  • Air Filter Restriction Indicator
  • Air Pre-Cleaner
  • Auto Warm-Up System
  • Auto-Idle
  • Auto-Idle Shutdown
  • Battery Disconnect Switch w/ LED Light
  • Cooling Fan
  • DEF Gauge on Monitor
  • Diesel Oxidation Catalyst (DOC)
  • Drain for Fuel Tank
  • Dual Remote Fuel Filters with Water Separators
  • EGR Coolers
  • Emergency Engine Stop
  • Engine Oil Sample Port
  • Engine Protection Feature
  • External Fuel Gauge
  • External DEF Gauge
  • Fan Belt Auto Tensioner
  • Fan Housing
  • Fuel Cooler
  • Fuel Filter Restriction Indicator
  • Fuel Management System
  • Fuel Usage History
  • Fuel Usage Monitor
  • Glow Plug Pre-Heat
  • Idle-Start
  • Intercooler
  • Neutral Start
  • One-Touch Idle
  • Radiator / Oil Cooler / Intercooler Protective Screens
  • Remote Engine Oil Drain
  • Remote Oil Filter
  • Selective Catalytic Reduction (SCR)
  • Variable Geometry Turbocharger

HYDRAULICS

  • Anti-drift valves (Arm & Boom)
  • Arm Regeneration
  • Arm Speed Assistance (2 Pump Flow)
  • Attachment Cushion Valve
  • Auto Swing Priority
  • Custom Flow Control
  • Auxiliary Tool Settings (Custom Naming)
  • Auxiliary Valve
  • Boom Regeneration
  • Boom Speed Assistance (2 Pump Flow)
  • Bucket Curl Assist
  • Control Levers PreWired for Auxiliary Hyd.
  • Pattern Control Valve (2 way)
  • Electronically Controlled Hydraulic Pumps
  • Fire Wall
  • Free Swing
  • Hydraulic Filter Restriction Indicator
  • Hydraulic Oil Sample Port
  • Long Life Hydraulic Oil (5,000 Hour)
  • Neutral Pump DeStroke
  • Oil Cooler
  • Power Boost
  • Power Save
  • Pressure Reading on Monitor
  • Pump Stand-By Pressure

UNDERCARRIAGE

  • 800 mm shoes (31.5 in) 3-Bar Steel
  • Extended Steps
  • Lashing Points (TieDowns)
  • Sealed Link Chain
  • Single Track Guide
  • Strutted Track Chain
  • Swivel Guard

UPPERSTRUCTURE

  • Counterweight: 370 X4S Long Front 19,000 lbs (8,600 kg)
  • Center Cover (Over Main CV)
  • Fuel Tank Belly Pan
  • ISO Guard Rails
  • LED Tool Box Light
  • Lockable Fuel Cap and Service Doors
  • Lockable Hydraulic Oil Tank Cap
  • Lockable Engine Hood
  • Lockable Tool Box

ATTACHMENT

  • 370 X4S Long Front
    • 25’ 0” (7.63 m) arm
    • 35’ 5” (10.8 m) boom
  • Chrome Pins
  • Bucket Linkage
  • LED Boom Light
  • Teardrop Pin Retention Keepers

CAB

  • 270° WAVES+ 3-Camera System
  • Cab Sun Visor (Front)
  • CAB Head Guard (FOPS Level 2)
  • Front Guard (Mesh)
  • Front Guard (BAR - OPG Level 1)
  • Front Guard (BAR - OPG Level 2)
  • LED Lights for WAVES Cameras (4)
  • Rain Deflector
  • Vandal Cover (DIA Kit)

PRECISION GRADE

  • 2D Machine Guidance
  • 2D Submersible Linkage Kit

AUXILIARY HYDRAULIC OPTIONS

  • Secondary Aux. w/ Proportional Joysticks

UNDERCARRIAGE

  • 700 mm shoes (27.5 in) 3-Bar Steel
  • Full Length Track Guards
