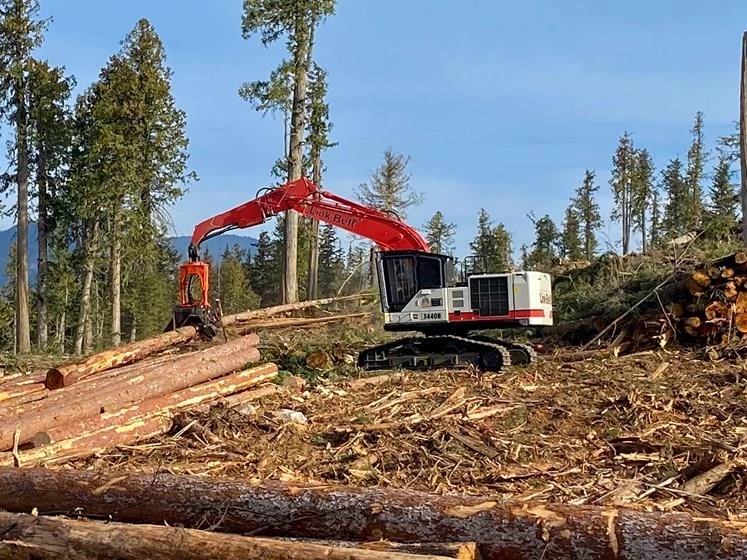

New Link-Belt 3440B PH Excavator for Sale The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety. |
| Dimensions | |
|---|---|
| Length | 31’5.2” |
| Width | 11’6.2” |
| Height | 9’10.5” |
| Operating Weight | 74,477 lbs. |
| Fuel Tank Capacity | 216 Gallons |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-4HK1X |
| Horsepower | 177 HP |
| Displacement | 317 cu in |
| Torque | 458 lbf-ft |
| DEF Tank Capacity | 31.7 Gallons |
| Travel Speed | 1.9-3.2 MPH |
| Drivetrain | |
|---|---|
| Gradeability | 70% (35°) |
| Drawbar Pull | 52,200 lbf |
| Track Rollers | 8 per side |
| Ground Pressure | 8.0 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump | Main pumps – 2 variable displacement axial piston pumps w/regulating system Pilot Pump-1 gear pump Aux. pump-1 gear pump |
| Hydraulic Tank Capacity | 39 Gallons |
| Hydraulic Cylinders | Number – Bore x Rod Diameter x Stroke: Boom: 2-4.72” x 3.35” x 49.41” Arm: 1-5.51” x 3.94” x 57.48” |
| Hydraulic System Capacity | 74 Gallons |
| Travel Circuit | 4970 PSI |
| Swing Circuit | 4190 PSI |
| Max Oil Flow | Main Pump: 2 x 61.8 gpm Pilot Pump: 5.3 gpm Aux Pump: 9.7 gpm |
| Working Circuit Pressure | Main Pump: Boom/Arm-4970 PSI Pilot Pump: 570 PSI Aux Pump: 2990 PSI |
| Operational | |
|---|---|
| Swing Torque | 55,250 lbf-ft |
| Swing Speed | 0-11.7 RPM |
| Track Link Pitch | 8” |
| Shoes | 48 per side |
| Shoe Width | 27.56” |
| Battery | |
|---|---|
| Battery | 24 V |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 3440B PH |
