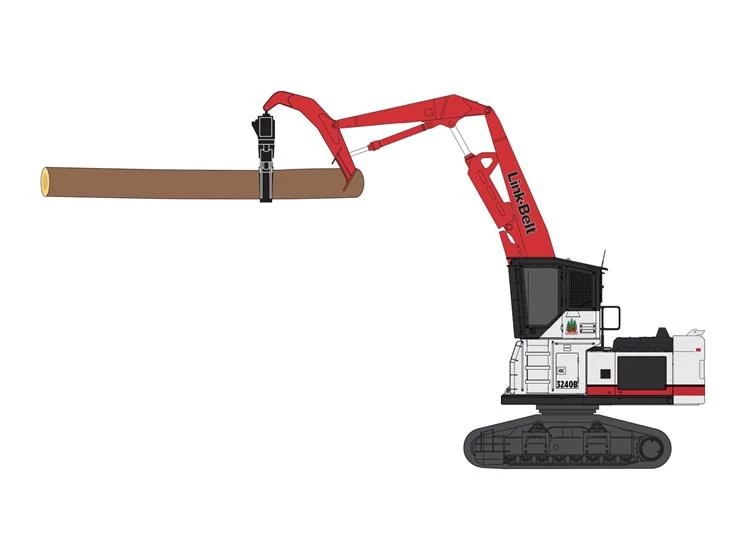

New Link-Belt 3240B TL Excavator for Sale The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety. |
| Dimensions | |
|---|---|
| Length | 44’2.3” |
| Width | 11’5.8” |
| Height | 15’7” 42’8.6” (Max Standard Lift Position) |
| Operating Weight | 76,193 lbs. (side entry) 77,457 lbs. (rear entry) |
| Fuel Tank Capacity | 216 Gallons |
| Depth | 12’2.9” |
| Maximum Reach Ground | 35’8.7” |
| Log Level Height | 30’3.0” |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-4HK1X |
| Engine Type | Final Tier 4 Turbocharged diesel engine |
| Horsepower | 160 HP |
| Displacement | 317 cu in |
| Torque | 457 lbf-ft. |
| Cooling System Capacity | 8.8 Gallons |
| DEF Tank Capacity | 31.7 Gallons |
| Travel Speed | 1.7-2.9 MPH |
| Drivetrain | |
|---|---|
| Starter | 24V-5.0kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 52,200 lbf |
| Alternator | 85 amp |
| Track Rollers | 8 per side |
| Ground Pressure | 8.1 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 39 Gallons (Sump) |
| Hydraulic System | 2 variable displacement axial piston pumps with regulating system |
| Hydraulic Cylinders | NO. of Cylinders – Bore X Rod Diameter X Stroke Boom: 2 – 5.32” X 3.74” X 45.00” Arm: 1 – 5.91” X 4.13” X 56.61” Heel: 1 – 4.53” X 3.15” X 39.84” |
| Oil Capacity | 6.1 Gallons |
| Hydraulic System Capacity | 74 Gallons |
| Max Oil Flow | Main Pumps: 2 X 55.7 US GPM Pilot Pump (1 Gear Pump): 4.8 GPM Aux. Pump (1 Gear Pump): 9.1 GPM |
| Working Circuit Pressure | Main Pumps: Working Circuit Pressure: Boom/Arm/Heel-4970 PSI; Swing Circuit-4190 PSI; Travel Circuit-4970 PSI Pilot Pump (1 Gear Pump): 570 PSI Aux. Pump (1 Gear Pump): 2990 PSI |
| Operational | |
|---|---|
| Dig Height | 33’0.5” (High-Narrow Undercarriage Standard Lift Position) 32’11.7” (High-Wide Undercarriage Standard Lift Position) 38’3.1” (High-Narrow Undercarriage High-Lift Position) 38’2.3” (High-Wide Undercarriage High-Lift Position) |
| Maximum Reach | 36’5.0” |
| Swing Torque | 55,250 lbf-ft. |
| Swing Speed | 0-10.5 RPM |
| Track Link Pitch | 8.0” |
| Shoes | 48 per side |
| Shoe Width | 27.5” |
| Battery | |
|---|---|
| Voltage | 24V |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 3240B TL |
