Link-Belt 3240B RB

New Link-Belt Excavator for Sale

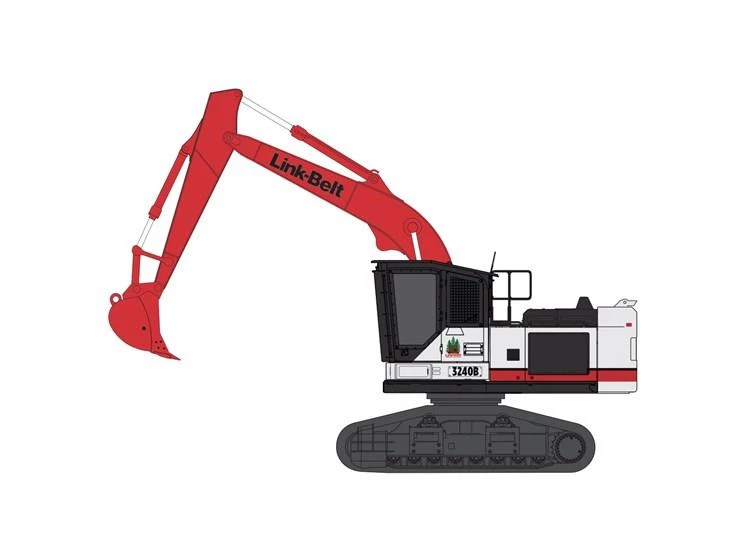

New Link-Belt 3240B RB Excavator for Sale

The enhanced 40B Series showcases improved durability, productivity, serviceability, and overall safety.
Dimensions
Length 31’7.9”
Width 11’6.2”
Height 12’4.5”
Operating Weight 70,800 lbs.
Fuel Tank Capacity 216 Gallons
Maximum Reach Ground 23’2.0” (Standard Lift Position)
24’1.0” (High-Lift Position)
Vertical Wall Depth 15’2.3” (Standard Lift Position)
13’9.7” (High-Lift Position)
Engine
Engine Make Isuzu
Engine Model AQ-4HK1X
Engine Type Final Tier 4 Turbocharged diesel engine
Horsepower 160 HP
Displacement 317 cu in
Torque 457 lbf-ft.
Cooling System Capacity 8.8 Gallons
DEF Tank Capacity 31.7 Gallons
Travel Speed 1.7-2.9 MPH
Drivetrain
Starter 24V-5.0kW
Gradeability 70% (35°)
Drawbar Pull 52,200 lbf
Alternator 85 amp
Track Rollers 8 per side
Ground Pressure 8.0 PSI
Carrier Rollers 2 per side
Hydraulic
Hydraulic Tank Capacity 39 Gallons (Sump)
Hydraulic System 2 variable displacement axial piston pumps with regulating system
Hydraulic Cylinders NO. of Cylinders – Bore X Rod Diameter X Stroke
Boom: 2 – 4.72” X 3.35” X 49.41”
Arm: 1 – 5.51” X 3.94” X 57.48”
Bucket: 1 – 4.72” X 3.35” X 39.76”
Oil Capacity 6.1 Gallons
Hydraulic System Capacity 74 Gallons
Max Oil Flow Main Pumps: 2 X 55.7 US GPM
Pilot Pump (1 Gear Pump): 4.8 GPM
Aux. Pump (1 Gear Pump): 9.1 GPM
Working Circuit Pressure Main Pumps: Working Circuit Pressure: Boom/Arm/Bucket-4970 PSI; Swing Circuit-4190 PSI; Travel Circuit-4970 PSI
Pilot Pump (1 Gear Pump): 570 PSI
Aux. Pump (1 Gear Pump): 2990 PSI
Operational
Dig Depth 20’7.6” (Standard Lift Position)
16’11.2” (High-Lift Position)
20’0.6” (Standard Lift Position – Level Bottom)
16’4.1” (High-Lift Position – Level Bottom)
Dig Height 32’6.9” (Standard Lift Position)
36’7.0” (High-Lift Position)
Dump Height 23’6.4” (Standard Lift Position)
27’2.8” (High-Lift Position)
Maximum Reach 31’7.5”
Swing Torque 55,250 lbf-ft.
Swing Speed 0-10.5 RPM
Track Link Pitch 8.0”
Shoes 48 per side
Shoe Width 27.5”
Battery
Voltage 24V

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
