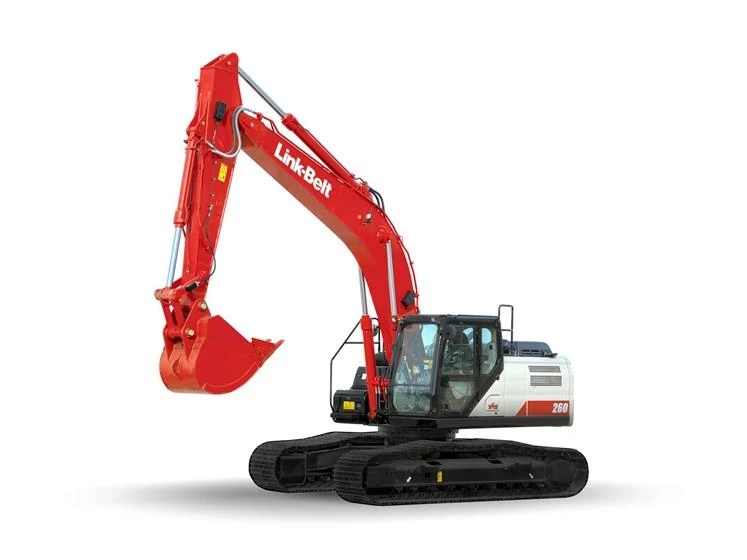

New Link-Belt 260 X4S Excavator for Sale Looking to boost your earth-moving productivity, without added fuel costs? The adaptability and maximum performance of the X4S line give you the power to tackle tough jobs. |
| Dimensions | |
|---|---|
| Width | 11’2” |
| Operating Weight | 57,300 lbs. |
| Fuel Tank Capacity | 108 Gallons |
| Maximum Reach Ground | 31’7”-34’10” |
| Engine | |
|---|---|
| Engine Make | Isuzu |
| Engine Model | AQ-4HK1X |
| Engine Type | Final Tier 4 turbocharged diesel engine |
| Net Horsepower | 177 HP |
| Displacement | 317 cu in |
| Torque | 458 lbf-ft |
| DEF Tank Capacity | 22 Gallons |
| Travel Speed | 2.2-3.4 mph |
| Drivetrain | |
|---|---|
| Starter | 24 V – 5.06 kW |
| Gradeability | 70% (35°) |
| Drawbar Pull | 45,000 lbf |
| Alternator | 85 amp |
| Track Rollers | 9 per side |
| Ground Pressure | 5.7 PSI |
| Carrier Rollers | 2 per side |
| Hydraulic | |
|---|---|
| Pump Output | 2 x 61.8 gpm |
| Hydraulic Tank Capacity | 42 Gallons |
| Hydraulic Cylinders | Number – Bore x Stroke: Boom: 2 – 5.1” x 52.6” Arm: 5.7” x 65.4” Bucket: 5.1” x 42.1” |
| Relief Valve Setting | Boom Up/Arm/Bucket: 4,970 PSI In Power Boost: 5,410 PSI |
| Hydraulic System Capacity | 76.6 Gallons |
| Travel Circuit | 4,970 PSI |
| Swing Circuit | 4,190 PSI |
| Pilot Pump Maximum Flow | 5.3 gpm |
| Operational | |
|---|---|
| Dig Depth | 21’0”-24’4” |
| Dig Height | 31’4”-33’ |
| Bucket Digging Force | 39,570 lbf |
| Dump Height | 21’6”-23’10” |
| Maximum Reach | 32’3”-35’5” |
| Swing Torque | 55,300 lbf-ft |
| Swing Speed | 10.6 RPM |
| Track Link Pitch | 7.5” |
| Shoes | 51 per side |
| Shoe Width | 31.5” |
| Tail Swing | 9’10” |
| Bucket Rotation | 175° |
| Arm Force | 29,230 lbf |
| Boom | |
|---|---|
| Boom | 19’2” |
| Battery | |
|---|---|
| Voltage | 24 V |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Link-Belt |
| MODEL | 260 X4S |
