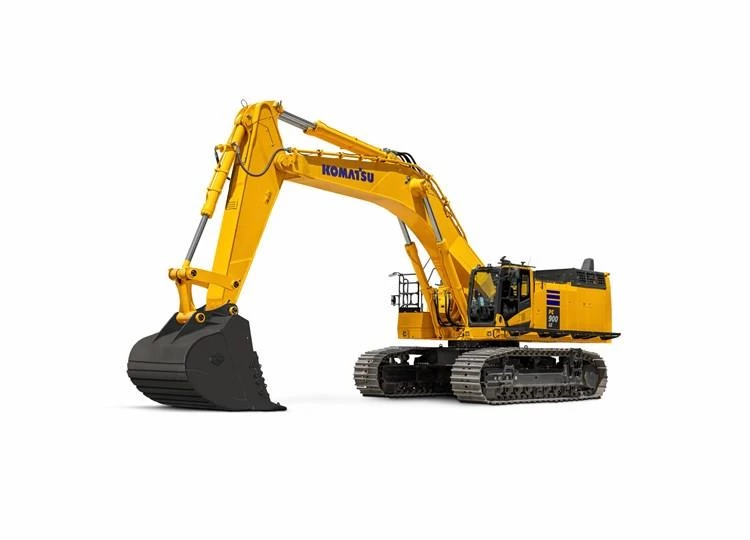

Komatsu PC900LC-11

New Komatsu Excavator for Sale

New Komatsu PC900LC-11 Excavator for Sale

Built for tough jobs

The PC900LC-11 large-class excavator is engineered to be a true performer for challenging construction projects. This workhorse combines exceptional power with digging capabilities and more. It is an easy-to-transport, versatile machine for a range of applications — heavy construction, demolition, material handling, deep sewer/water, large mass excavation and mining/quarry

Exceptional power, performance and mobility: Compared to the previous model*, the PC900LC-11

can be up to 48% more productive and up to 40% more efficient due to these features and improvements:

  • Komatsu 15.24-liter SAA6D140E-7 diesel engine with 543 HP/405 kW
    • EPA Tier 4 final emissions certified
    • 10% more horsepower than the previous model*
    • Uses both SCR and KDPF technologies to meet EPA Tier 4 Final emission requirements
  • 11% increase in swing torque*
  • 27% increase in arm digging force (ISO) and 22% increase in bucket digging force (ISO)*
  • Large capacity bucket: up to 6.1m3 (8.1 cu yd) **
  • Counterweight removal system to simplify transportability

Quality, reliability and support you can count on: The PC900LC-11 is an excavator you can depend on year after year with features like:

  • Larger and stronger major structures, booms  and arms*
  • Redesigned revolving frame engineered to increase longevity
  • Komatsu-quality components
  • Service pass-through area for easy access to filters, oil level checks and sample ports
  • Extensive dealer support network

An operator cab and technology that promotes performance: The operator environment is large and comfortable, with an adjustable suspension seat and a low-noise design. Other features include:

  • KomVision birds-eye view system with widescreen monitor
  • Neutral position detection system
  • Dual walkways (both sides) with three-point, right-hand side access
  • LED lighting standard
  • Available options — Smart Construction 3D guidance and payload monitoring

Stay in the know with Komtrax: The Komatsu wireless monitoring system lets you monitor all the essential machine information you can access on your computer, smartphone or tablet:

  • 4G mobile communications
  • Integrated communication antenna
  • Insightful operational data and reports
  • Data that empowers proactive and preventive maintenance
Dimensions
Length 48’
Width 15.81’
Height 16.43’ (top of boom)
12.13’ (top of cab)
Ground Clearance 5.29’ (counterweight)
2.83’ (minimum)
Operating Weight 204,148 lbs.
Engine
Engine Make Komatsu
Engine Model SAA6D140E-7
Engine Type Common rail direct injection, emissionised, turbocharged, after-cooled diesel
Cylinders 6
Horsepower 543 HP
Net Horsepower 538 HP
Cooling Watercooled
Displacement 930 in³
Emission Standards Tier IV-Final – fully complies with EU Stage V exhaust emission regulations
Travel Speed 1.7/2.5 MPH
Drivetrain
Track Length 20.75’
16’6” (on ground)
Drawbar Pull 124,994 lbf
Grouser Height 1.96”
Hydraulic
Hydraulic Circuit 1 attachment line (option)
Operational
Dig Depth 29’6”
Dig Height 44’2”
Arm Length 12’1” (Bucket & Arm Force)
Bucket Capacity 3.7-8.0 yd³
Bucket Breakout Force 90,598 lbf
Boom Length 27’6”
Tail Swing Radius 15’5”
Noise Level LwA external: 109 dB (A) (2000/14/EC Stage II)
LpA operator ear: 75 dB(A)(ISO 6396 dynamic test)
Swing Torque 237,243 lbf-ft
Swing Speed 6.8 RPM
Shoe Width 2.95’
Track Gauge 11’7”
Digging Reach 46’7”
Arm Breakout Force 76,660 lbf
  • Engine
    • Alternator and A/C compressor belt auto-tensioner
    • Automatic engine warm-up system
    • Dry type air cleaner, double element
    • Engine, Komatsu SAA6D140E-7
    • Fuel pre-filter with water separator
    • Variable speed cooling fans (2), hydraulic drive, reversible
  • Electrical system
    • Alternator, 24 V/90 A
    • Auto-decelerator and auto idle shutdown
    • Batteries, 2 x 12 V/196 Ah (high-performance batteries)
    • Battery disconnect switch /lock out-tag out
    • Circuit breaker
    • Horn, electric
    • Starting motor, 24 V/11 kW
    • Working LED light (two boom, four cab, two right front)
    • Two LEDs on the cab are linked to the horn (for truck loading)
    • Rear LED light (2 counterweight)
    • Central aisle maintenance LED light (2)
    • Cab access step light with timer
  • Hydraulic system
    • Three-mode system (P+, P, E)
    • Inline high pressure filters
    • Pressure proportional control (PPC) hydraulic control system
    • Two-mode setting for boom
    • Shockless control system for boom
  • Guards and covers
    • Fan guard structure
    • Strengthened revolving frame underguard
  • Undercarriage
    • Hydraulic track adjusters (each side)
    • Track roller (nine on each side)
  • Operator environment
    • Auto climate control with defroster
    • Multifunction audio (with Bluetooth)
    • Cab with pull-up type front window
    • Engine shutdown secondary switch
    • High-back suspension seat, heated
    • Large high resolution LCD monitor
    • Operator controls hydraulic lock lever
    • Operator protective top guard (OPG), level 1 (ISO 10262)
    • Mirrors (RH, LH)
    • KomVision camera system
    • Seat belt, retractable, 3.1” (78 mm)
    • Washable cab floor mat
    • Short joystick levers
  • Other equipment
    • Equipment Management Monitoring System
    • Grease gun, electric pump type
    • Hand rails and guard rails
    • Komtrax
    • Preventive Maintenance (PM) tune-up service connector
    • Rear reflector
    • Slip-resistant plates
    • Travel alarm
    • Wide walkway (RH and LH)
    • Fuel, fast fill provision
    • Quick oil sampling ports
  • Undercarriage
    • 2’ 11” (900 mm) double grouser shoes
  • Operator environment
    • Rain visor
    • Sun visor
    • Lower wiper
    • Beacon lamp
  • Work equipment
    • 12’ 2” (3,700 mm) arm assembly
    • 14’ 5” (4,400 mm) arm assembly
    • 9’ 8” (2,945 mm) SE arm assembly (mass excavation)
    • 27’ 7” (8,400 mm) boom assembly
    • 23’ 4” (7,100 mm) SE boom assembly (mass excavation)
  • Other equipment
    • Counterweight removal device
    • Tool kit *optional for North American spec

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

Komatsu’s Comparison Tools

View Brochure

Main Technical Specifications
MAKE Komatsu
MODEL PC900LC-11

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Komatsu PC900LC-11

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Komatsu PC900LC-11 Excavator for Sale

Built for tough jobs

The PC900LC-11 large-class excavator is engineered to be a true performer for challenging construction projects. This workhorse combines exceptional power with digging capabilities and more. It is an easy-to-transport, versatile machine for a range of applications — heavy construction, demolition, material handling, deep sewer/water, large mass excavation and mining/quarry

Exceptional power, performance and mobility: Compared to the previous model*, the PC900LC-11

can be up to 48% more productive and up to 40% more efficient due to these features and improvements:

  • Komatsu 15.24-liter SAA6D140E-7 diesel engine with 543 HP/405 kW
    • EPA Tier 4 final emissions certified
    • 10% more horsepower than the previous model*
    • Uses both SCR and KDPF technologies to meet EPA Tier 4 Final emission requirements
  • 11% increase in swing torque*
  • 27% increase in arm digging force (ISO) and 22% increase in bucket digging force (ISO)*
  • Large capacity bucket: up to 6.1m3 (8.1 cu yd) **
  • Counterweight removal system to simplify transportability

Quality, reliability and support you can count on: The PC900LC-11 is an excavator you can depend on year after year with features like:

  • Larger and stronger major structures, booms  and arms*
  • Redesigned revolving frame engineered to increase longevity
  • Komatsu-quality components
  • Service pass-through area for easy access to filters, oil level checks and sample ports
  • Extensive dealer support network

An operator cab and technology that promotes performance: The operator environment is large and comfortable, with an adjustable suspension seat and a low-noise design. Other features include:

  • KomVision birds-eye view system with widescreen monitor
  • Neutral position detection system
  • Dual walkways (both sides) with three-point, right-hand side access
  • LED lighting standard
  • Available options — Smart Construction 3D guidance and payload monitoring

Stay in the know with Komtrax: The Komatsu wireless monitoring system lets you monitor all the essential machine information you can access on your computer, smartphone or tablet:

  • 4G mobile communications
  • Integrated communication antenna
  • Insightful operational data and reports
  • Data that empowers proactive and preventive maintenance
GENERAL INFORMATION
Manufacturer
Komatsu
Model Year
Model
PC900LC-11
Condition
NEW
Dimensions
Length
48’
Width
15.81’
Height
16.43’ (top of boom) 12.13’ (top of cab)
Ground Clearance
5.29’ (counterweight) 2.83’ (minimum)
Operating Weight
204,148 lbs.
Engine
Engine Make
Komatsu
Engine Model
SAA6D140E-7
Engine Type
Common rail direct injection, emissionised, turbocharged, after-cooled diesel
Cylinders
6
Horsepower
543 HP
Net Horsepower
538 HP
Cooling
Watercooled
Displacement
930 in³
Emission Standards
Tier IV-Final – fully complies with EU Stage V exhaust emission regulations
Travel Speed
1.7/2.5 MPH
Drivetrain
Track Length
20.75’ 16’6” (on ground)
Drawbar Pull
124,994 lbf
Grouser Height
1.96”
Hydraulic
Hydraulic Circuit
1 attachment line (option)
Operational
Dig Depth
29’6”
Dig Height
44’2”
Arm Length
12’1” (Bucket & Arm Force)
Bucket Capacity
3.7-8.0 yd³
Bucket Breakout Force
90,598 lbf
Boom Length
27’6”
Tail Swing Radius
15’5”
Noise Level
LwA external: 109 dB (A) (2000/14/EC Stage II) LpA operator ear: 75 dB(A)(ISO 6396 dynamic test)
Swing Torque
237,243 lbf-ft
Swing Speed
6.8 RPM
Shoe Width
2.95’
Track Gauge
11’7”
Digging Reach
46’7”
Arm Breakout Force
76,660 lbf
