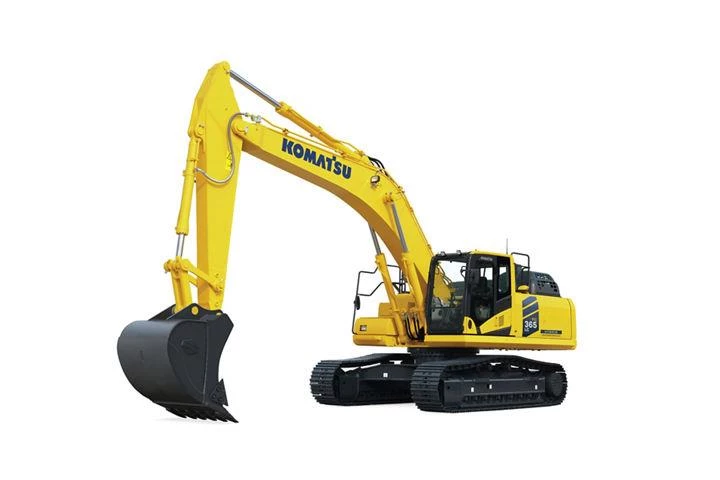

New Komatsu PC365LC-11 Excavator for Sale More power where you need it the most Get power and efficiency where it counts with the only excavator in its class with a fully electric swing system. This innovation increases swing speeds while converting wasted energy into a 70-horsepower boost for work-equipment performance and lower fuel consumption. When swinging, all available hydraulic power is sent to the boom, arm and bucket to help improve cycle time and increase productivity.
Features and Benefits
|
| Body | |
|---|---|
| Number of Carrier Rollers | 2 (each side) |
| Number of Shoes | 48 (each side) |
| Number of Track Rollers | 8 (each side) |
| Number of Working Modes | 6 |
| Seal of Track | Sealed |
| Supply for Control circuit | Self-Reducing Valve |
| Track Frame | Box-section |
| Center Frame | X-frame |
| Dimensions | |
|---|---|
| Length | 36’7”/36’8” |
| Width | 11’3” |
| Height | 10’9”/12’4” (to top of boom) |
| Weight | 81,791-85,495 lbs. |
| Ground Clearance | 3’11” (counterweight) 1’8” (minimum) |
| Fuel Tank Capacity | 159.8 Gallons |
| Transport Ground Length | 19’6”/18’ |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | SAA6D114E-6 |
| Cylinders | 6 |
| Horsepower | 271 HP |
| Net Horsepower | 269 HP |
| Cooling | Water-cooled, 4-cycle, direct injection |
| Bore x Stroke | 4.49” x 5.69” |
| Gears | Variable displacement piston type |
| Governor | All-speed control, electronic |
| Rated RPM | 1950 RPM |
| Aspiration | Turbocharged, aftercooled, cooled EGR |
| Piston Displacement | 540 in³ |
| Fan Drive Type | Fully hydrostatic |
| Sound | 101 dB(A) (Exterior – ISO 6395) 69 dB(A) (Exterior – ISO 6396) |
| DEF Tank Capacity | 10.3 Gallons |
| Coolant Capacity | 11.1 Gallons |
| Travel Speed | Low: 2 MPH Mid: 2.8 MPH High: 3.4 MPH |
| Fan Speed | 251 HP |
| Engine Capacity | 10.2 Gallons |
| Final Drive Capacity | 2.4 Gallons |
| Fan Drive Method | Mechanical with viscous fan clutch (for radiator cooling) |
| Motor-Generator Capacity | 2.25 Gallons |
| Ultra Capacitor Cooling System Capacity | 11.7 Gallons |
| Drivetrain | |
|---|---|
| Brakes | Swing System Service: Electric Swing System Holding/Swing Lock: Mechanical Disc Brake Service: Hydraulic lock Parking: Mechanical Disc Brake |
| Gradeability | 70%, 35° |
| Track Length | 16’3” 13’3” (on ground) |
| Drawbar Pull | 65,191 lbs. |
| Ground Pressure | 7.35-8.79 PSI |
| Grouser Height | 1.4” |
| Track Adjuster | Hydraulic |
| Hydraulic | |
|---|---|
| Pump | Boom, arm, bucket, swing, and travel circuits |
| Hydraulic Tank Capacity | 49.7 Gallons |
| Bucket | 5.5” x 50.6” x 3.9” (bore x stroke x rod diameter) (Bucket/1 – for 10’5” and 13’2” Arm) |
| Hydraulic Motors | Travel: 2 x axial piston motors with parking brake Swing: 1 x axial piston motor with swing holding brake |
| Implement Circuit | 5540 PSI |
| Travel Circuit | 5540 PSI |
| Pilot Circuit | 470 PSI |
| Operational | |
|---|---|
| Dig Depth | 24’3” (Arm length 10’5”) 26’10” (Arm length 13’2”) |
| Dig Height | 33’6” (Arm length 10’5”) 34’7” (Arm length 13’2”) |
| Arm Length | 10’5”/13’2” |
| Bucket Digging Force | 44,970 lbs. @ 200 kN (Arm length 10’5” & 13’2”) (SAE rating) 51,150 lbs. @ 228 kN (Arm length 10’5”) (ISO rating) 50,930 lbs. @ 227 kN (Arm length 13’2”) (ISO rating) |
| Dump Height | 23’4” (Arm length 10’5”) 24’7” (Arm length 13’2”) |
| Flow | 141.3 GPM |
| Tail Swing Radius | 11’4” |
| Swing Torque | 82,313 ft-lbs. |
| Swing Speed | 9.5 RPM |
| Shoe Width | 33.5” |
| Track Gauge | 8’6” |
| Swing Reduction | Planetary Gear |
| Pump Type | Variable displacement piston type |
| Drive Method | Electric Drive |
| Hydraulic Type | HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valves and pressure compensated valves |
| Digging Reach | 36’5” (Arm length 10’5”)/35’10” (Arm length 10’5” at ground level) 39’1” (Arm length 13’2”)/38’6” (Arm length 13’2” at ground level) |
| Arm | 6.3” x 71.9” x 4.3” (bore x stroke x rod diameter) (hydraulic) |
| Arm Crowd Force | 37,040 lbs. @ 165 kN (Arm length 10’5”)/31,310 lbs. @ 139 kN (Arm length 13’2”) (SAE rating) 38,360 lbs. @ 171 kN (Arm length 10’5”)/32,410 lbs. @ 144 kN (Arm length 13’2”) (ISO rating) |
| Swing Drive Capacity | 4.12 Gallons |
| Swing Radius | 14’2” |
| Swing Center Distance | 11’2” (to rear end) |
| Swing Motor - Generator Capacity | 0.95 Gallons |
| Boom | |
|---|---|
| Boom | 5.5” x 58.3” x 3.9” (bore x stroke x rod diameter) (Hydraulic) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC365LC-11 |
