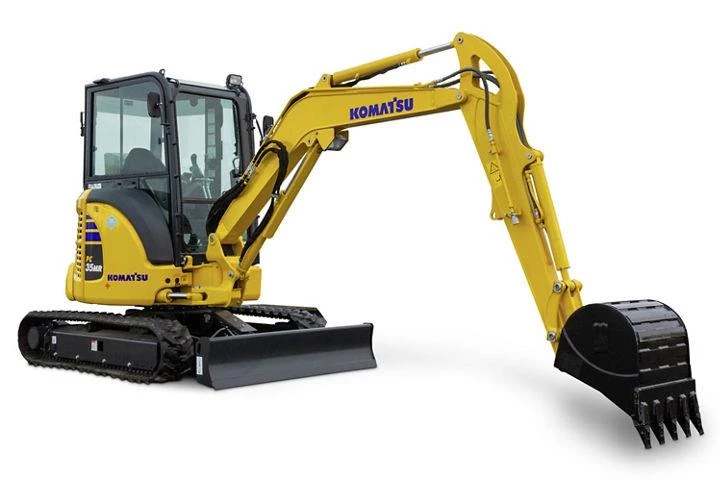

New Komatsu PC35MR-5 E2 Excavator for Sale Power, precision, and comfort Komatsu small excavators feature advanced technology for maximum efficiency, improved productivity, lower fuel consumption. They offer reliable performance, excellent forward visibility, and a comfortable operator workspace. Experience power, precision, and comfort with this model. |
| Body | |
|---|---|
| Number of Carrier Rollers | 1 (each side) |
| Number of Track Rollers | 4 (each side) |
| Number of Working Modes | 2 |
| Track Frame | Box-section |
| Steering Control | Two levers with pedals |
| Center Frame | X-frame |
| Dimensions | |
|---|---|
| Width | 4’11” (upper machine) |
| Weight | 8,201 lbs. (ROPS canopy) 8,532 lbs. (ROPS cab) |
| Ground Clearance | 1’9” (counterweight) 11” (minimum) |
| Overall Length | 15’ |
| Overall Width | 5’9” |
| Overall Height | 8’3” |
| Fuel Tank Capacity | 10.8 Gallons |
| Distance | 3’5” (swing center to end of tracks) |
| Engine | |
|---|---|
| Engine Make | Komatsu |
| Engine Model | 3D88E-7 |
| Engine Type | Direct injection |
| Horsepower | 24.4 HP |
| Cooling | Water-Cooled |
| Bore x Stroke | 3.46” x 3.54” |
| Piston Displacement | 100.2 in³ |
| Cooling System Capacity | 0.87 Gallons |
| Travel Speed | 1.61 MPH-2.85 MPH |
| Engine Capacity | 1.77 Gallons |
| Final Drive Capacity | 0.15 Gallons |
| Fan Drive Method | Mechanical (for radiator cooling) |
| Drivetrain | |
|---|---|
| Brakes | Service: Hydraulic Lock Parking: Mechanical Disc |
| Gradeability | 30° |
| Track Length | 6’11” 5’5” (on ground) |
| Drawbar Pull | 56,000 lbs./7495 lbf |
| Track Type | Sealed |
| Ground Pressure | 5.20 PSI (ROPS canopy) 5.07 PSI (ROPS cab) |
| Track Adjuster | Greased gun |
| Hydraulic | |
|---|---|
| Pump | Variable displacement piston x 2: Boom, arm, bucket and travel circuits Gear x 2: Swing and blade |
| Hydraulic Cylinders | Number of cylinders – bore x stroke x rod diameter Boom: 1 – 3.35” x 22.0” x 1.97” Arm: 1 – 2.9” x 23.4” x 1.77” Bucket: 1 – 2.55” x 19.29” x 1.57” Boom Swing: 1 – 3.74” x 18.97” x 1.97” Blade: 1 – 3.74” x 5.51” x 1.77” |
| Number of Cylinders | 3 |
| Hydraulic Valve | 8 spool |
| Operating Method | Hydraulic assist |
| Travel Motor | Variable displacement piston x 2 (w/counterbalance valve and travel shaft brake) |
| Swing Motor | Fixed displacement piston type x 1 (w/brake valve and swing shaft brake) |
| Hydraulic System Capacity | 5.3 Gallons |
| Flow Rate | 13.2 gal/min at 2973 PSI |
| Pump Flow | Variable displacement piston x 2: 18.3 gal/min Gear x 2: 4.9 gal/min (Swing Pump), 2915 PSI (Swing Pressure), 2.61 gal/min (Blade Pump), 3118 PSI (Blade Pressure) |
| Operational | |
|---|---|
| Blade Width | 5’9” |
| Blade Height | 1’2” |
| Dig Depth | 11’4” 10’3” (vertical wall) 9’11” (cut for 8’ level floor) |
| Dig Height | 16’9” |
| Arm Length | 5’8” |
| Bucket Digging Force | 6,722 lbs. |
| Dump Height | 11’9” |
| Boom Length | 8’4” |
| Boom Swing Angle | LF75°/RH55° |
| Tail Swing Radius | 2’10” |
| Blade Lift | 1’2” |
| Shoe Width | 1’ |
| Track Gauge | 4’9” |
| Pump Type | Variable displacement piston x 2 & Gear x 2 |
| Drive Method | Hydrostatic |
| Digging Reach | 18’6” 18’1” (at ground) |
| Arm Crowd Force | 4,631 lbs. |
| Swing Radius | 7’5” (boom straight ahead) 5’11” (boom articulated) |
| Bucket Offset | 1’11” (LH)/2’6” (RH) |
| Blade Depth | 1’3” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Komatsu |
| MODEL | PC35MR-5 E1 |
